Citizen A32-VII CL Lath

Show in original language

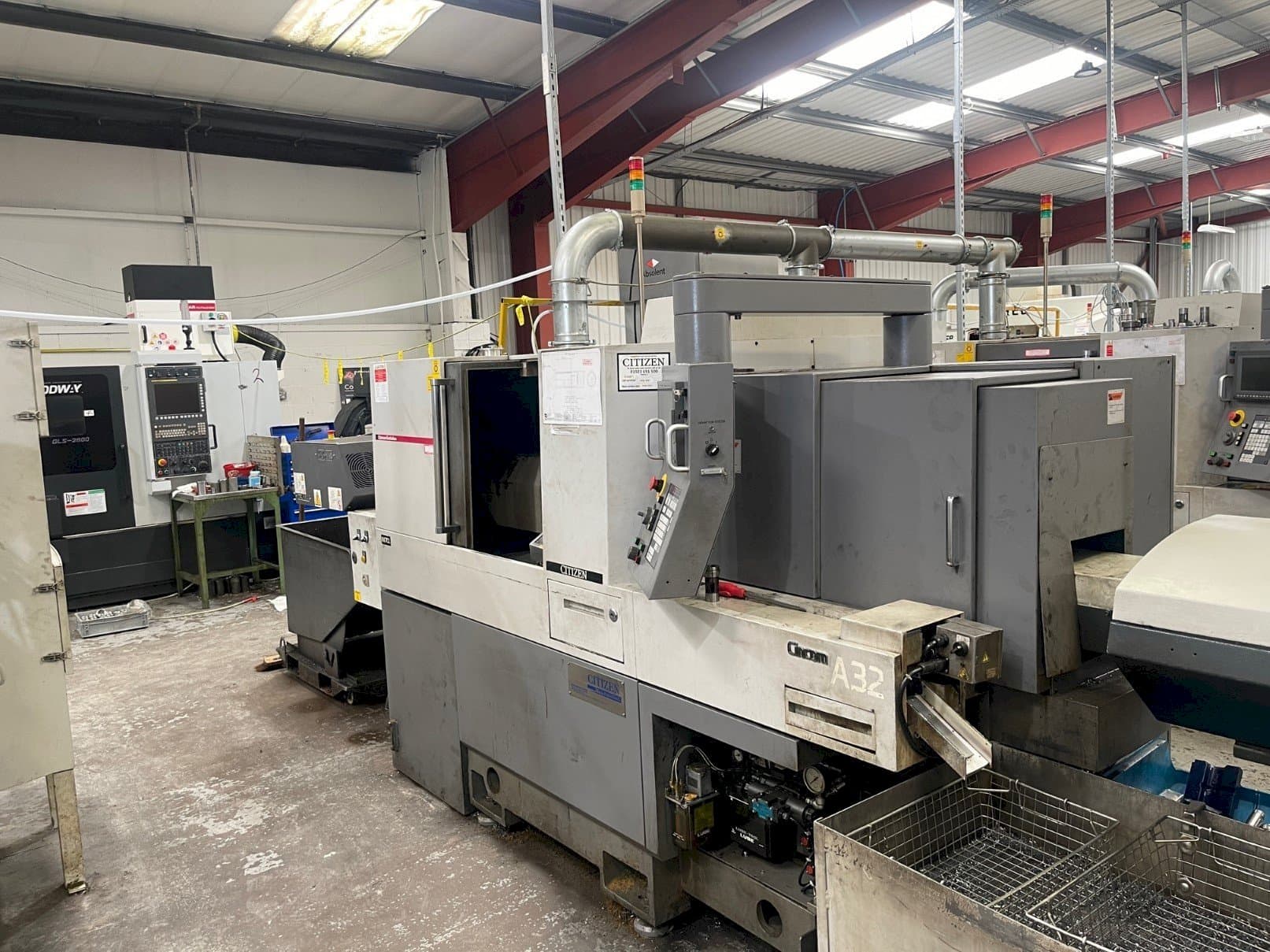

This Citizen A32-VII CL Lathe was made in 2012 in Japan. It is equipped with a Mitsubishi Meldas M70 control unit and has 7 axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: Citizen
year: 2012
MODEL: A32-VII CL
application type: Turning
Location: United Kingdom
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Citizen A32-VII CL

General Data

Measurements width: 2520 mm
Measurements depth: 1300 mm
Measurements height: 2229 mm
Machine weight: 3500 kg

Control Unit

Model: Meldas M70
Brand: MITSUBISHI

Main drive

Number of spindles: 2
Spindle speed range: 8000 1/MIN
Number of axis: 7

Movement

X-AXIS Movement: 110/X2: 370 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 325/Z2: 290 mm

Additional Equipment

- Barfeed magazine : LNS

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar capacity 32mm (both spindles)
- - Maximum cutting length 320mm
- - C axis 0. 001 degree (both spindles)
- - Driven tools max spindle speed: 5000rpm
- - Spindle motor power: 5. 5/7. 5kw; sub-spindle 2. 7 / 3. 7 kw
- - Rapid feedrates: x x2 y z z2: 32 x 45 x 45 x 45 x 45 x 45m/minute
- - Tool carriage 1: fixed turning tool x front working tools 6 x fixed, 4 x driven tools
- - Tool carriage 2: fixed turning tool x front working tools 4 x fixed (front & back)
- - Tool carriage 3: 5 stations , 4 x driven
- - Swarf conveyor, parts conveyor
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
