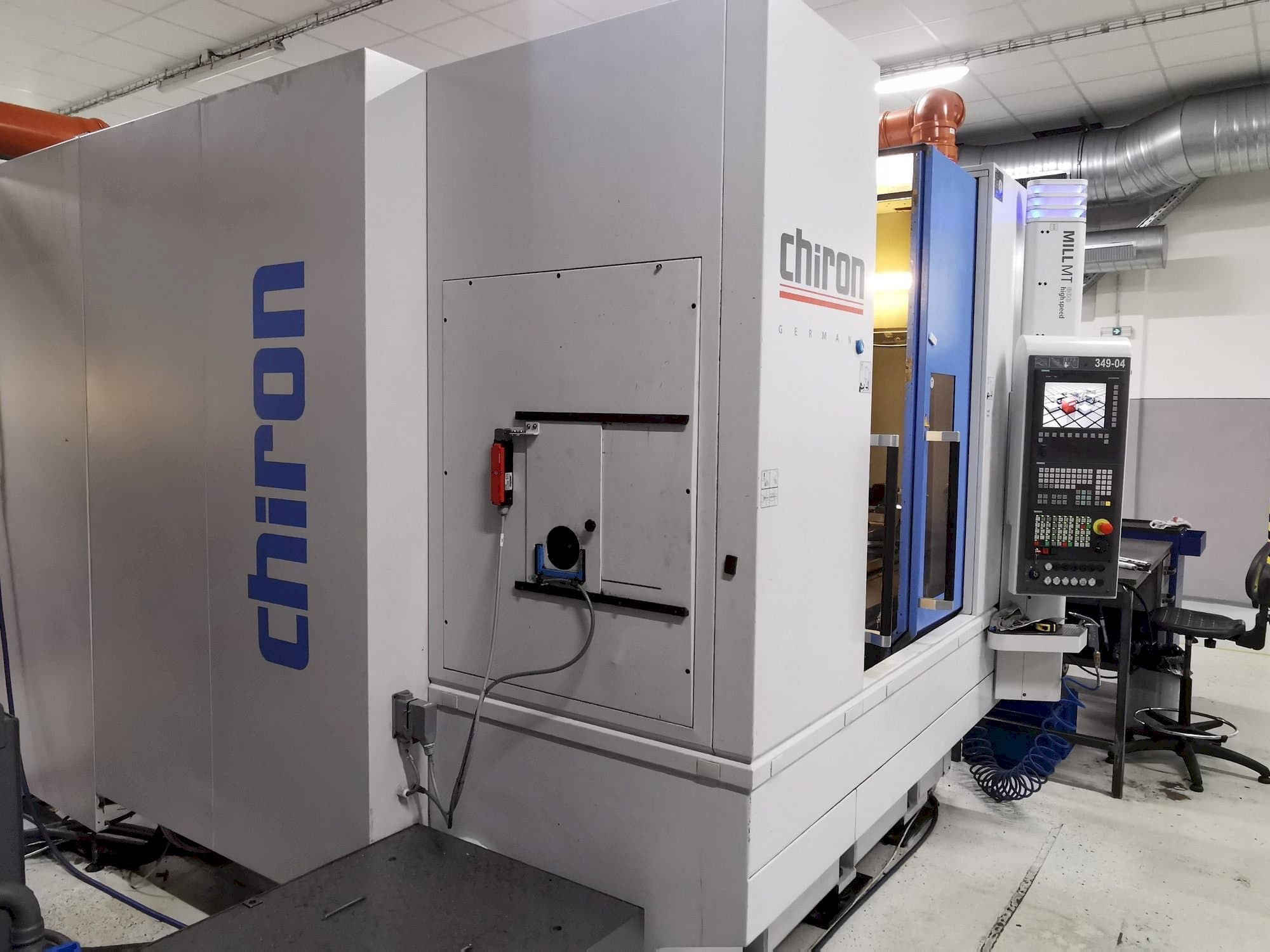

This CHIRON MILL 800 Vertical Machining center was manufactured in the year 2015 in Germany. It is equipped with a SIEMENS SINUMERIK control unit and has 5 axis.
Overview
- brand: CHIRON
- year: 2015
- MODEL: MILL 800
- application type: Milling
- Location: Slovakia
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: SIEMENS
Technical Information - CHIRON MILL 800
General Data
- Machine weight: 8500 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 840D
Main drive
- Spindle speed range: 12000 1/MIN
- Tool taper: HSK-A 63
- Number of axis: 5
Movement
- X-AXIS Movement: 800 MM
- Y-AXIS Movement: 500 MM
- Z-AXIS Movement: 550 MM
Table
- Outer length: 800 mm
- Outer width: 500 mm
- Table load: 600 kgs
Additional Equipment
- - Bar loader ILS-RBK- 10012 100 min/max 5/100 mm L= 600-1200 mm
- - Spare part: 12 000 rpm Kessler spindle (new repair with protocol).
- - Collet SK100 40x80 mm smooth 1 pc
- - Collet SK100 BZG D60 - Smooth 2 pcs
- - Collet SK100 BZ, 50x35 notched 2 pcs
- - Collet SK100 D32 smooth 1 pc
- - Collet SK100 BZ D65 Notched 2pcs
- - Collet SK100 BZG ADAPTER 100 RD 1 pc
- - Workpiece probe Renishaw 1pc
Additional Information
- Technical Machine Benefits:
- - Rapid feedrate 60 m/min
- - Swivelling head cnc controlled (b axis) +/- 100° degrees
- - Spindle torque140 nm
- - Tool changer 60 positions
- - Tool-change time 1,5 sec // taper type hsk-a 63
- - Tool-change time 1,5 sec
- - Coolant through spindle 40 bar
- - Max turning dia 65mm // turning spindle rpm: 15. 000
- - Hydraulic clamping 800 nm.
- - Turning weight 7500 kgs
- Qualitative Machine Benefits:
- - Cnc controlled clamping/rotating unit for 6th face machining
- - Pressurised linear encoders
- - Swarf conveyor
- - Renishaw-ready
- - 2022 - milling spindel retrofitted
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
