➤ Used Chiron Mill 800 - Vertical machining centre

Show in original language

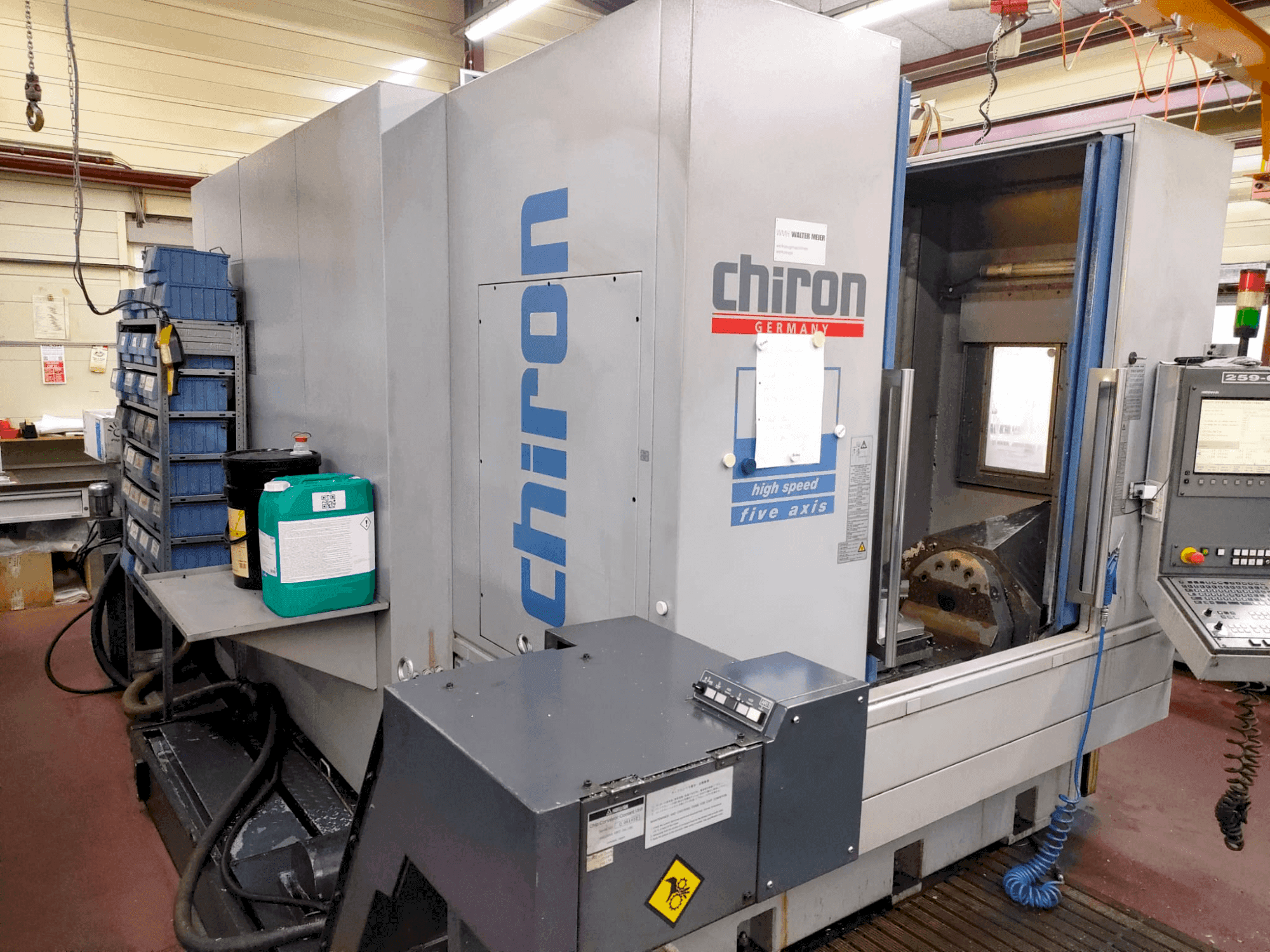

This 5-axis Chiron Mill 800 was manufactured in 2005. It features a spindle revised in September 2022, capable of 20000 rpm and a robust Heidenhain iTNC-530 control. The machine handles up to 380kg on its table with a tool capacity of 40. It has comprehensive cooling options and a full panelling setup. A significant opportunity to buy this Chiron Mill 800 vertical machining centre. Contact us for more information.

Overview

brand: CHIRON
year: 2005
MODEL: Mill 800
production hours: 41276
application type: Milling
Location: Switzerland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - CHIRON Mill 800

General Data

Measurements width: 3500 mm
Measurements depth: 6000 mm
Measurements height: 3300 mm
Machine weight: 11000 kg

Control Unit

Model: iTNC-530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 20000 1/MIN
Tool taper: HSK 63
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 640 mm
Z-AXIS Movement: 550 mm

Table

Outer width: 380 mm
TSlots size: ISO 299
Distance between: 80mm

Additional Equipment

- High Speed plus package
- Glass scales
- Manual control unit
- Renishaw OP-40 radio button
- Chiron-Lasercontrol
- KOWAP belt filter system 40 bar
- Bio-alcohol cooling
- Blow-off gun
- Full panelling
- Hydraulic and pneumatic rotary feedthroughs

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High-speed capabilities, precision enhancements
Qualitative Machine Benefits:
- - High precision and advanced monitoring features

Extra information

- Model year might be inferred as the year it is described as a vertical machining center

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
