CHIRON - FZ18WDE-MIL-CHI-1990-00002

Name: CHIRON FZ18W
Brand: CHIRON
SKU: DE-MIL-CHI-1990-00002
Price: 9950 GBP
Availability: InStock

£ 9,950

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON FZ18W For Sale | gindumac.com

Show in original language

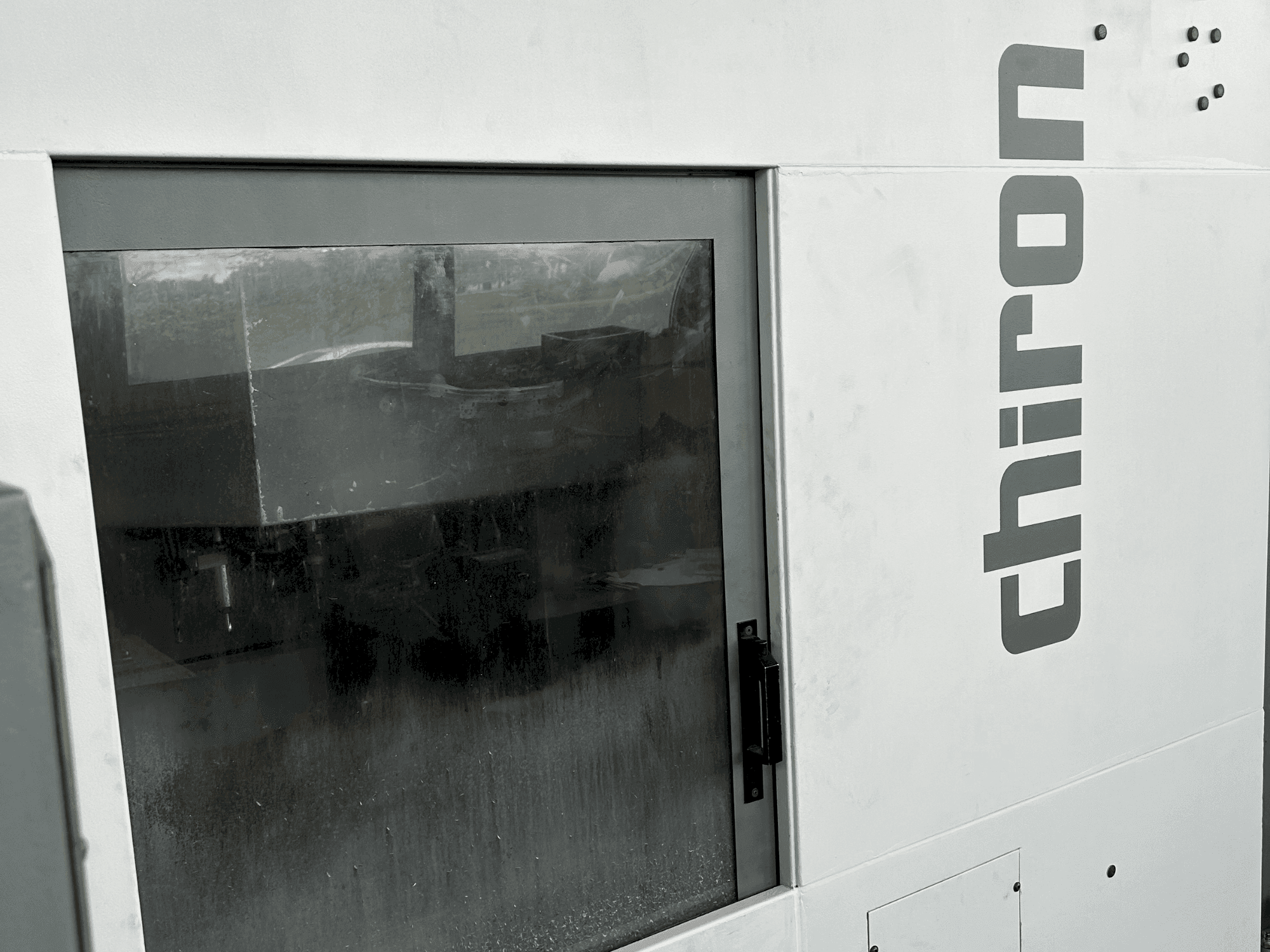

This 3-axis CHIRON FZ18W vertical machining center was manufactured in 1990. It features a SIEMENS SINUMERIK 810M control system, a spindle with a 70mm diameter in front bearing, and a SK40 tool holder. The machine has a rotary table diameter of 1050mm and can handle a maximum workpiece weight of 200 kg. If you are looking to get high-quality milling capabilities, consider the CHIRON FZ18W machine we have for sale. Contact us for more information about this machine.

Overview

brand: CHIRON
year: 1990
MODEL: FZ18W
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - CHIRON FZ18W

General Data

Measurements width: 1800 MM
Measurements depth: 2800 MM
Measurements height: 2900 MM
Machine weight: 3600 KG

Control Unit

Brand: SIEMENS
Model: SINUMERIK 810M

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 425 mm

Workpiece

Workpiece weight: 2 x 100 kg

Tools

Type of tool holder: SK40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotary table diameter: 1050 mm
- - Clamping surface: length 950 mm x width 660 mm
- - Table height above floor: approx. 900 mm
- - Spindle diameter in front bearing: 70 mm
- - Spindle arrangement: vertical
- - Max. Torque: 60 nm
- - Total connected load: approx. 25 kva
- - Voltage: 380 v
Qualitative Machine Benefits:
- - Geometry was overhauled 2 years ago and official protocol is available
- - Machine is particularly suitable for centring, drilling, reaming, threading, milling, spindling
- - A service module has been added to the control system from the last operation to enable diagnostics and data to and from the machine via the network
- - Documents such as all circuit diagrams are provided
- - Training documents are provided

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
