➤ Used CHIRON FZ 08 W Vertical Machining Center For Sale

Show in original language

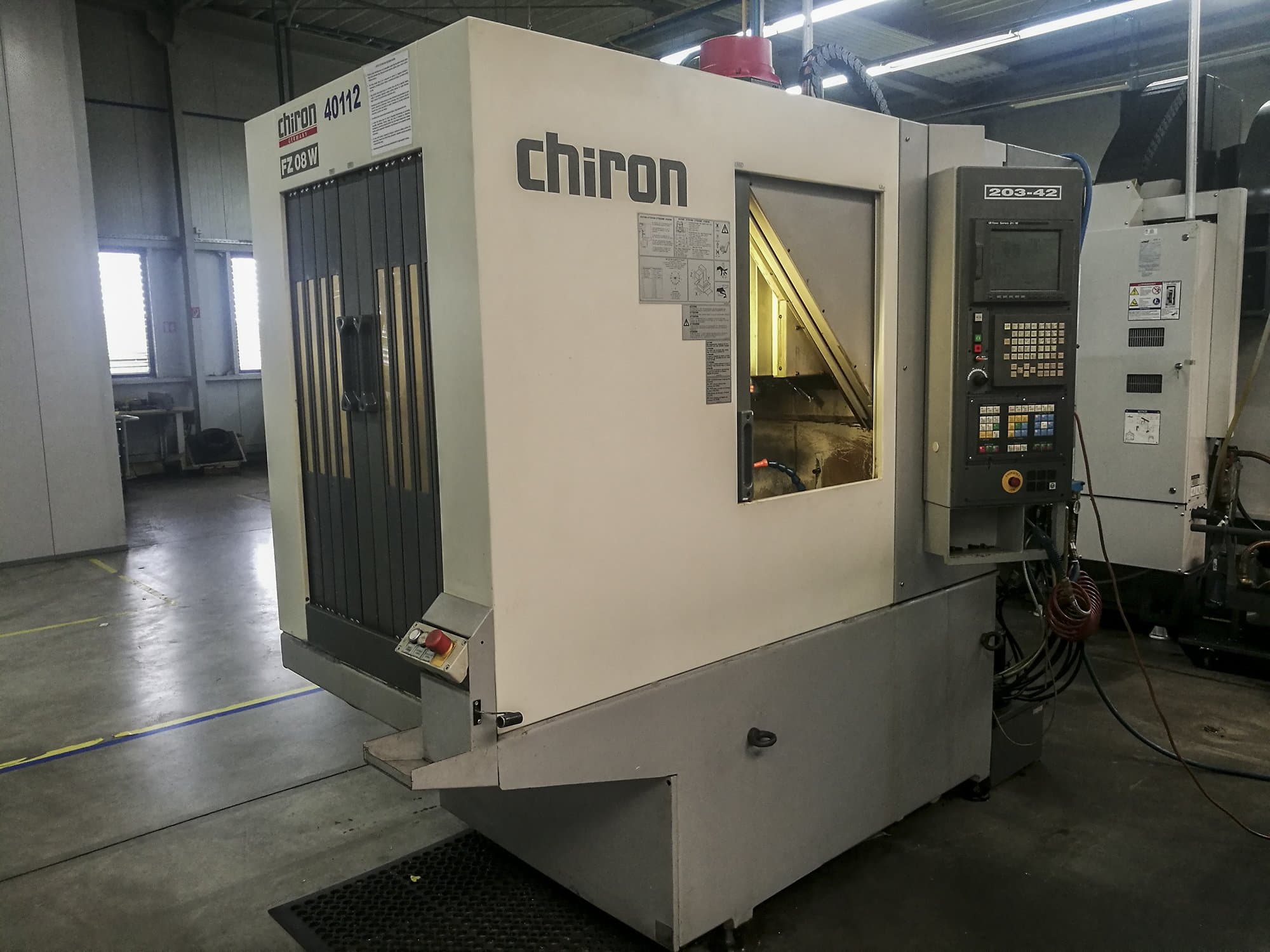

This Chiron FZ 08 W Vertical Machining Center was manufactured in Germany in 2001 and has a production time of approximately 50000 working hours and only 4000 spindle hours. Operated through a Fanuc 21i-M Control unit, this fast model stands out due to 2 pallets and 4 axis.

Overview

brand: CHIRON
year: 2001
MODEL: FZ 08 W
production hours: 50000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - CHIRON FZ 08 W

General Data

Measurements width: 1400 mm
Measurements depth: 2500 mm
Measurements height: 2250 mm
Machine weight: 2200 kg

Control Unit

Brand: FANUC
Model: 21i-M
CNC main language: German

Main drive

Number of spindles: 1
Spindle speed range: 10500 1/min

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
V-Axis Movement: 250 mm

Table

Outer length: 550 mm
Outer width: 300 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 12 kVA

Additional Equipment

- Automatic Tool Changer with 12 tool slots
- Chip Container
- 2x Pallet (550x300mm)
- Piesler Rotary Unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
