- Chiron FZ 08 S Vertical Machining Center

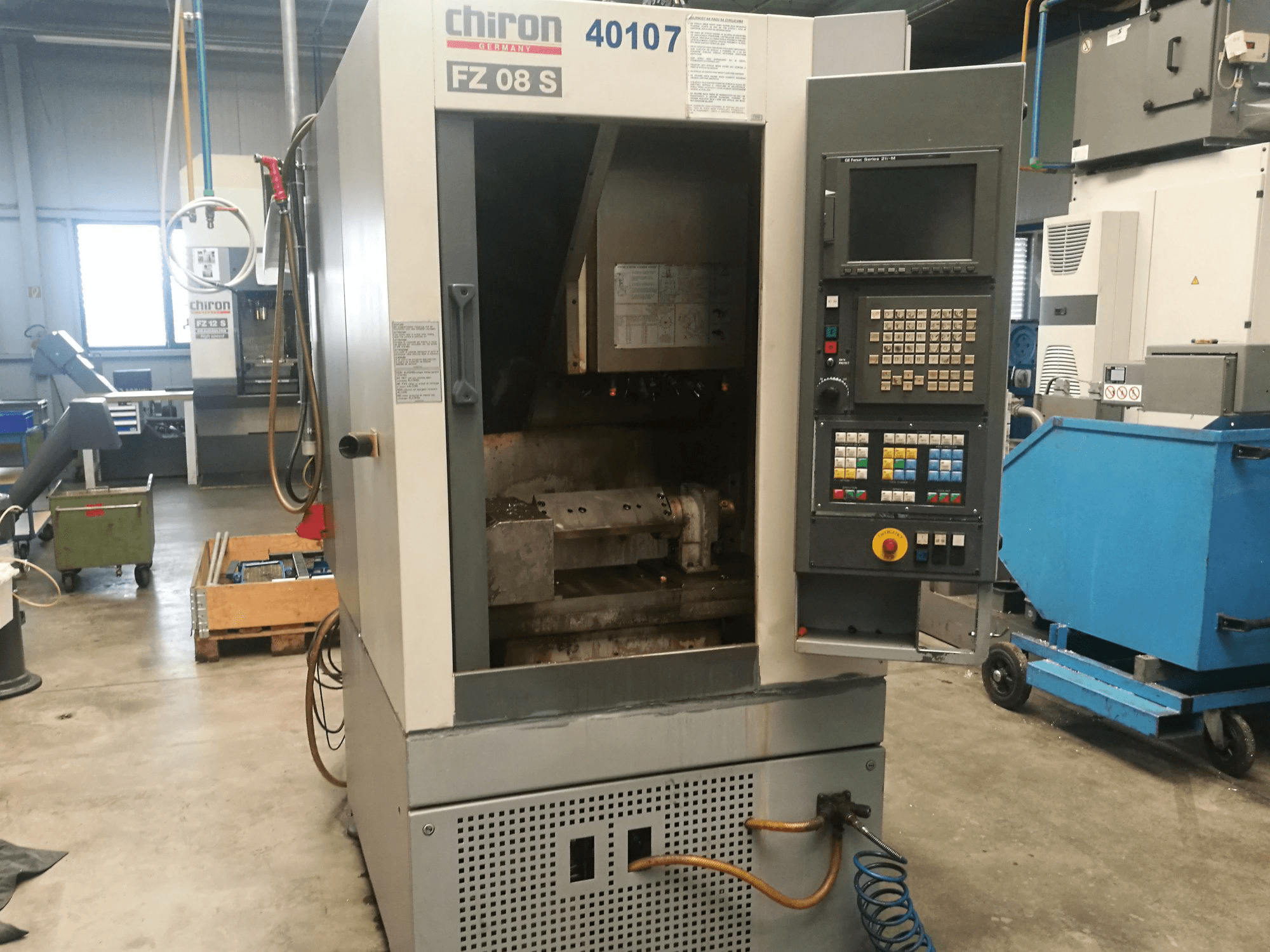

This Chiron FZ 08 S Vertical Machining Center from 2000 was manufactured in Germany and has an total production time of 50000 hours. Operated through a FANUC 21i-M Control unit, this machine stands out due to its 4 axis and fast production. With a max spindle speed of 10500 rpm, this machine has mainly worked with aluminum and titan during the past.
Overview
- brand: CHIRON
- year: 2000
- MODEL: FZ 08 S
- production hours: 50000
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - CHIRON FZ 08 S
General Data
- Measurements width: 1400 mm
- Measurements depth: 2050 mm
- Measurements height: 2250 mm
- Machine weight: 1820 kg
Control Unit
- Brand: FANUC
- Model: 21i-M
- CNC main language: German
Main drive
- Number of spindles: 1
- Spindle speed range: 10500 1/min
Movement
- X-AXIS Movement: 300 mm
- Y-AXIS Movement: 250 mm
- Z-AXIS Movement: 250 mm
- A-AXIS Movement: 360° MM
Table
- Outer length: 620 mm
- Outer width: 270 mm
Tools
- Slots in storage: 12
- Max tool diameter: 63 mm
- Max tool length: 160 mm
Media
- Main electronic connection: 400 V/ 50 Hz
- Power consumption: 8 kVA
Additional Equipment
- - Automatic Tool Changer with 12 tools slots
- - Chip Container
- - Working Table
- - Pielser Rotary unit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
