CAZENEUVE - Optimax 360IL-TUR-CAZ-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

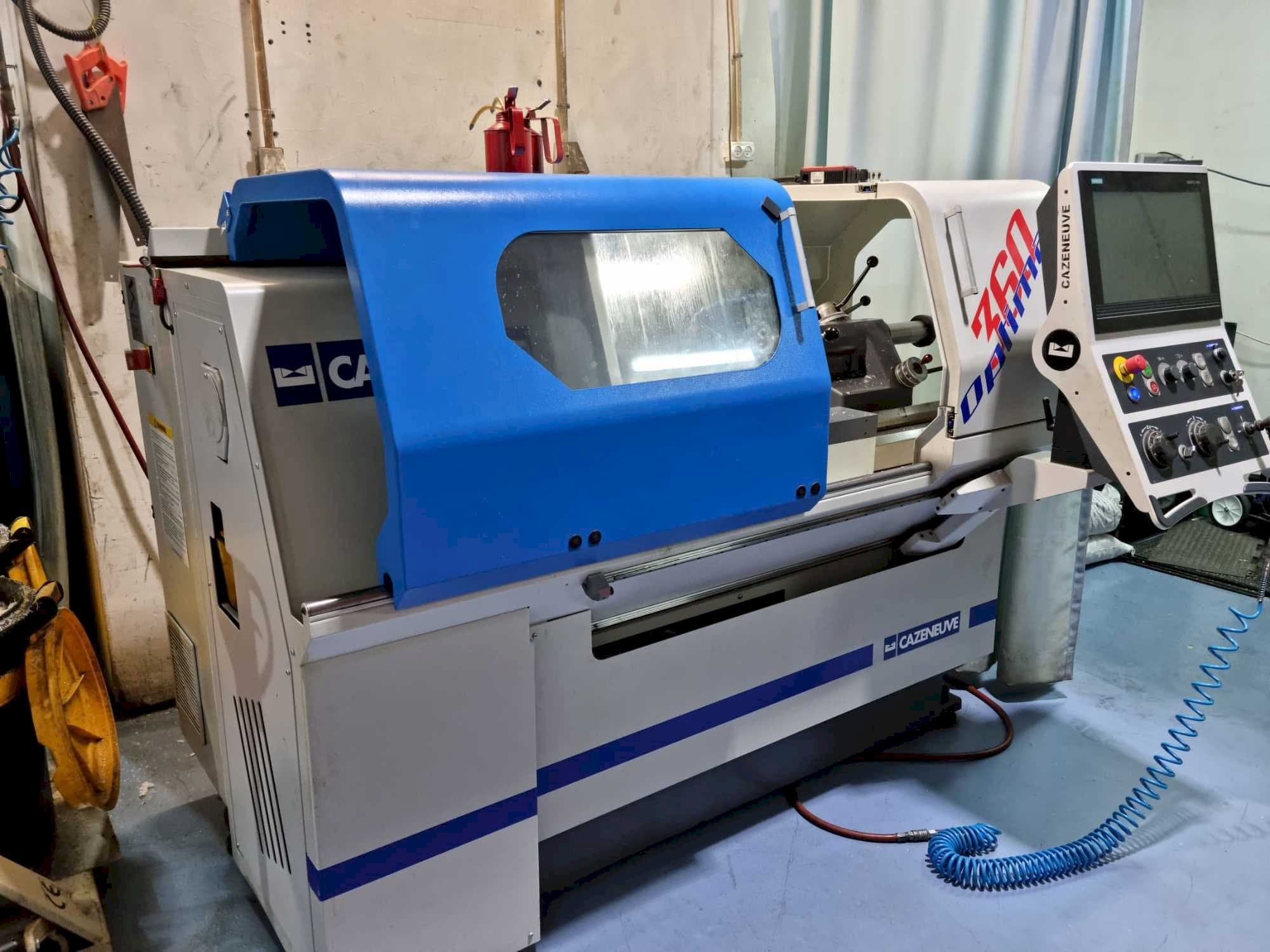

CAZENEUVE Optimax 360 Lathe

Show in original language

This CAZENEUVE Optimax 360 Lathe was manufactured in the year 2019 in France. It is equipped with a SIEMENS OPTIMAX control unit. The machine has a spindle speed of 3000 rpm, is in good condition and well maintained. CE conformity.

Overview

brand: CAZENEUVE
year: 2019
MODEL: Optimax 360
application type: Turning
Location: Israel
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - CAZENEUVE Optimax 360

General Data

Measurements width: 1575 mm
Measurements depth: 2000 mm
Measurements height: 1542 mm
Machine weight: 2000 kg

Control Unit

Model: OPTIMAX
Brand: SIEMENS

Main drive

Spindle speed range: 3000 1/MIN

Additional Equipment

- CE conformity

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between centres: 700 mm
- - Swing over bed: 390 mm
- - Swing over cross slide: 200 mm
- - Carriage x axis travel: 180 mm
- - Z axis travel: 610 mm
- - Bed width: 330 mm
- - Nose type: a1 6''
- - Chuck diameter: 200 mm
- - Spindle bore 54 mm
- - Quill diameter and taper: 60 mm, mt4
Qualitative Machine Benefits:
- - Quill travel: 140 mm
- - Turret, tool size: multifix b, 20 x 20 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

CAZENEUVE-HORIZONTAL-LATHES-GB.pdf

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
