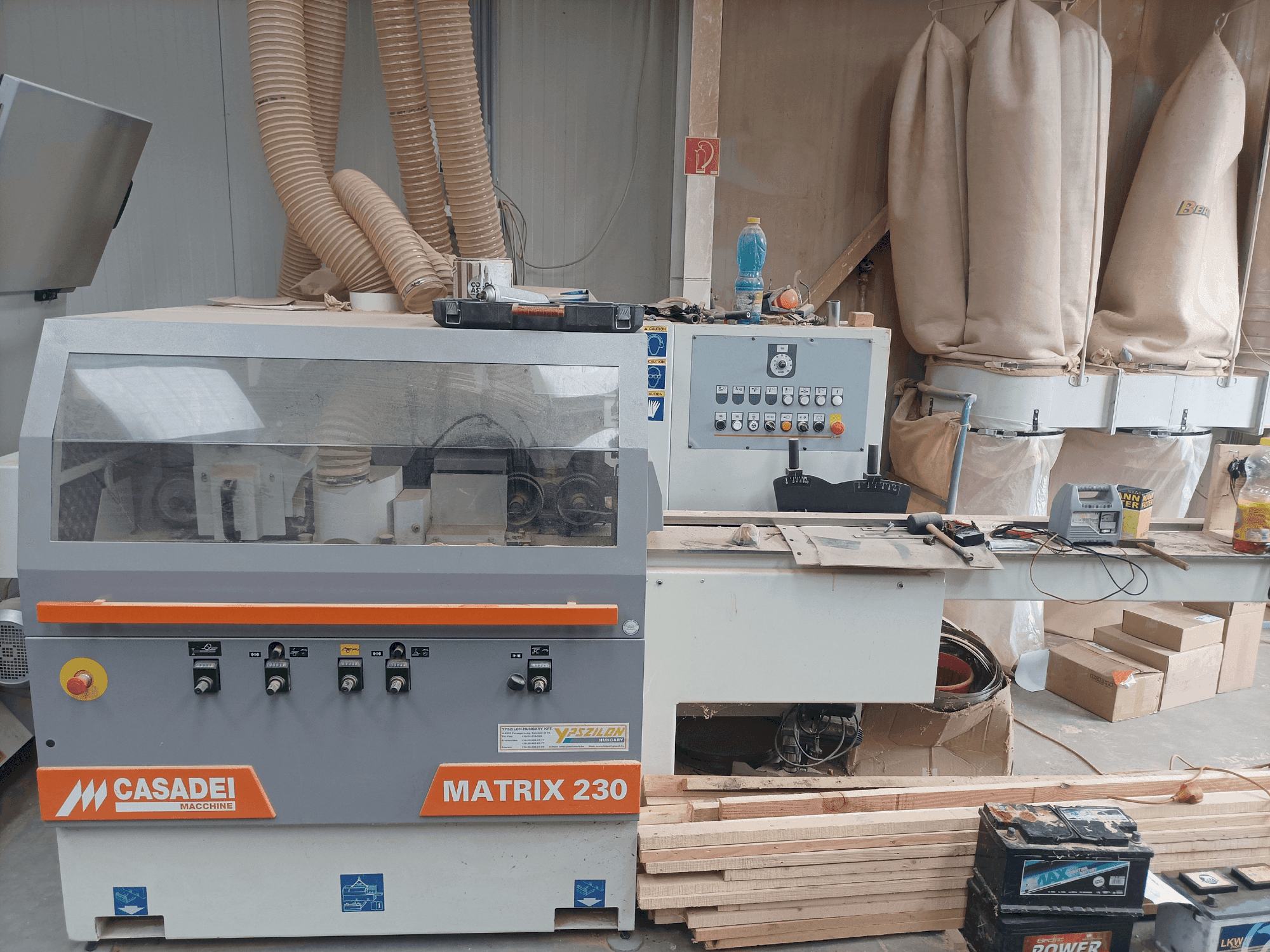

Front view of CASADEI MATRIX 230 (2018)  machine

CASADEI - MATRIX 230HU-WOO-CAS-2018-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis CASADEI MATRIX 230 Wood was manufactured in 2018, featuring a robust welded frame with cast reinforcements ensuring vibration-free operation. It includes a mechanically adjustable cast iron feed table and a soundproof protective enclosure for noise reduction. The machine offers a "QUICK SET" system for rapid, precise adjustments without opening the protective cover. Ideal for precision woodworking, the CASADEI MATRIX 230 machine we have for sale is a significant asset. Contact us for further details.

Overview

  • brand: CASADEI
  • year: 2018
  • MODEL: MATRIX 230
  • application type: Sawing (Wood)
  • Location: Hungary
  • machine type: Panel Saw
  • availability: Sold

Technical Information - CASADEI MATRIX 230

General Data

  • Shaft diameter: 40 mm

Main drive

  • Spindle speed range: 6000 1/MIN
  • Number of axis: 3

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Working length of horizontal axes: 250 mm
      • - Length of vertical axes: 140 mm
      • - Tool diameter that can be used on the lower horizontal axis: 120-140 mm // tool diameter that can be used on vertical axes: 100-180 mm // tool diameter that can be used on the upper horizontal axis: 125 mm
      • - Motor power of lower horizontal axis: 4 kw (5. 5 hp) // motor power of upper horizontal axis: 4 kw (5. 5 hp) // motor power of vertical axes: 5. 5 kw (7. 5 hp)
      • - Sending table length: 2000 mm
      • - Diameter of forward wheels: 140 mm
      • - Axial displacement of vertical axes: 40 mm // axial displacement of horizontal axes: 40 mm
      • - Ce standard
      • - Electric brake for motors
      • - 2500 mm long work table

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
