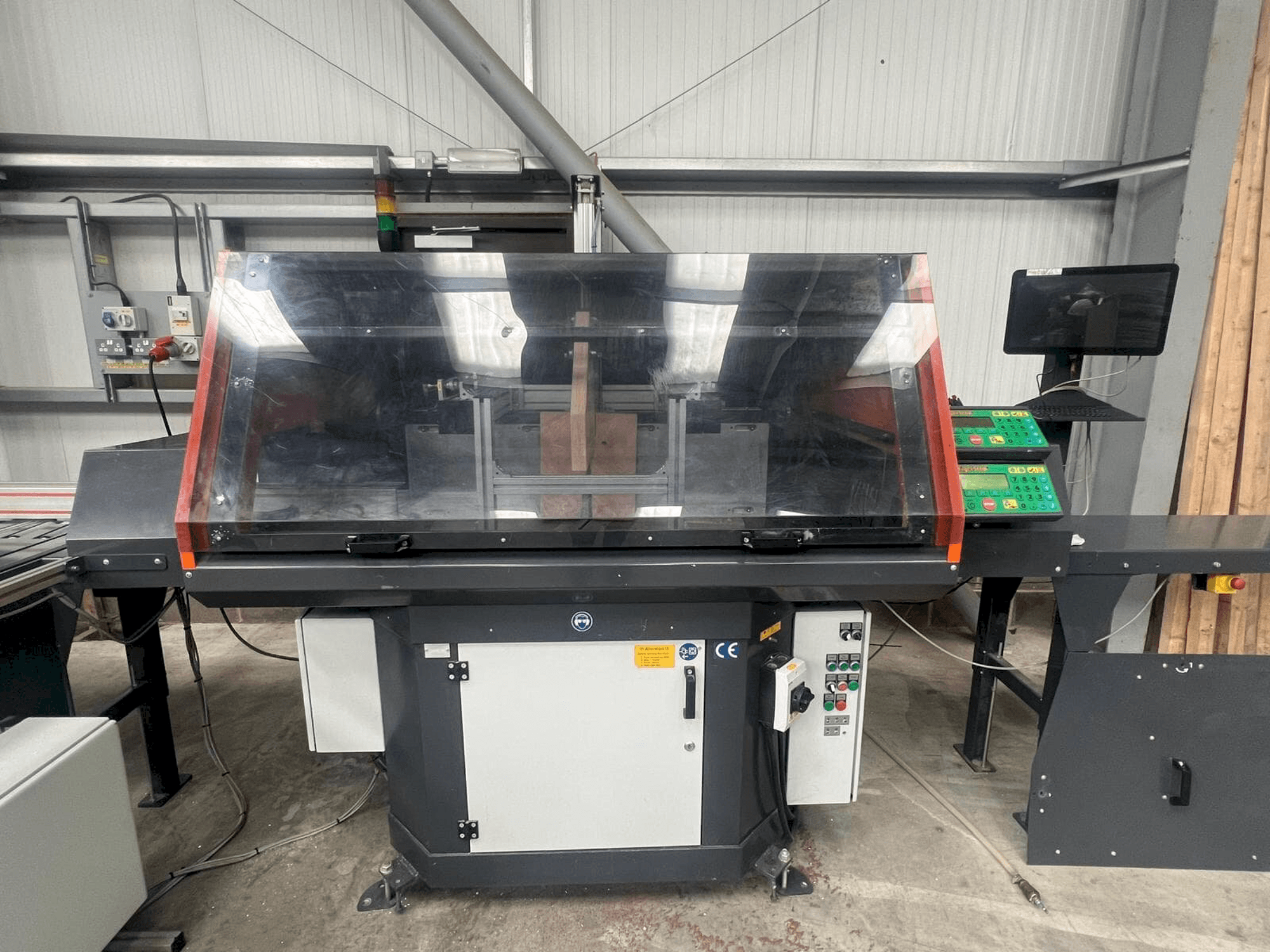

This TIGER UKA 600 Cross cut installation was manufactured in 2015. It features a 600 mm saw blade, a cutting capacity of 165 x 240 mm at 90 degrees, and a motor power of 5.5 Kw. The machine includes a TigerStop 7.5 Automatic Stop and pusher, enhancing precision and efficiency. Ideal for semi-automatic or fully automatic operations, it supports a maximum feed speed of 40 m/min. Contact us for more information about this machine.
Overview
- brand: TIGER
- year: 2015
- MODEL: UKA 600 Cross cut installation
- application type: Sawing (Wood)
- Location: United Kingdom
- machine type: Panel Saw
- availability: Immediately
Technical Information - TIGER UKA 600 Cross cut installation
Main drive
- Main motor power: 045 Kw / 55 Kw
Additional Equipment
- - PC Control with Beamworks Programme: Computer with Touch Panel and computer cabinet; Cut list download possibilities for CSV file
- - Flipper-Loading Device: For automatic loading of material with length from 500 mm to 6000 mm
Additional Information
- Technical Machine Benefits:
- - Voltage: 220 volt 50 hz / 400 volt 50 hz
- - Feed speed: maximum 40 m/min (depends on load)
- - Precision: +/- 04 mm as pusher
- - Cutting capacity: 165 x 240 mm at 90 degrees
- - Maximum cutting height: 165 mm at the fence and 175 mm for round material
- - Cutting angles: 30-90-30 degrees and 45-90-45 degrees with automatic function
- - Infeed table: total length 74 meters, table width 325 mm
- - Outfeed/infeed table with side fence: length 37 meter, width 325 mm
- - Saw blade diameter: 600 mm
- - Saw unit on rotating table: diameter 980 mm
- Qualitative Machine Benefits:
- - Label printer package for beamworks
- - Safety: safety fence at the back of the machine infeed side including entry door with safety lock; extra guarding at the front to prevent entry between the loading strands; emergency stop safety relais and complete wiring for safety fence door
- - Product length measuring with sensor: controlled from the controller; length measuring and downloading with software works only on 90-degree cuts
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
