➤ Used Bystronic Xact Smart 225/4100 | Press For Sale

Show in original language

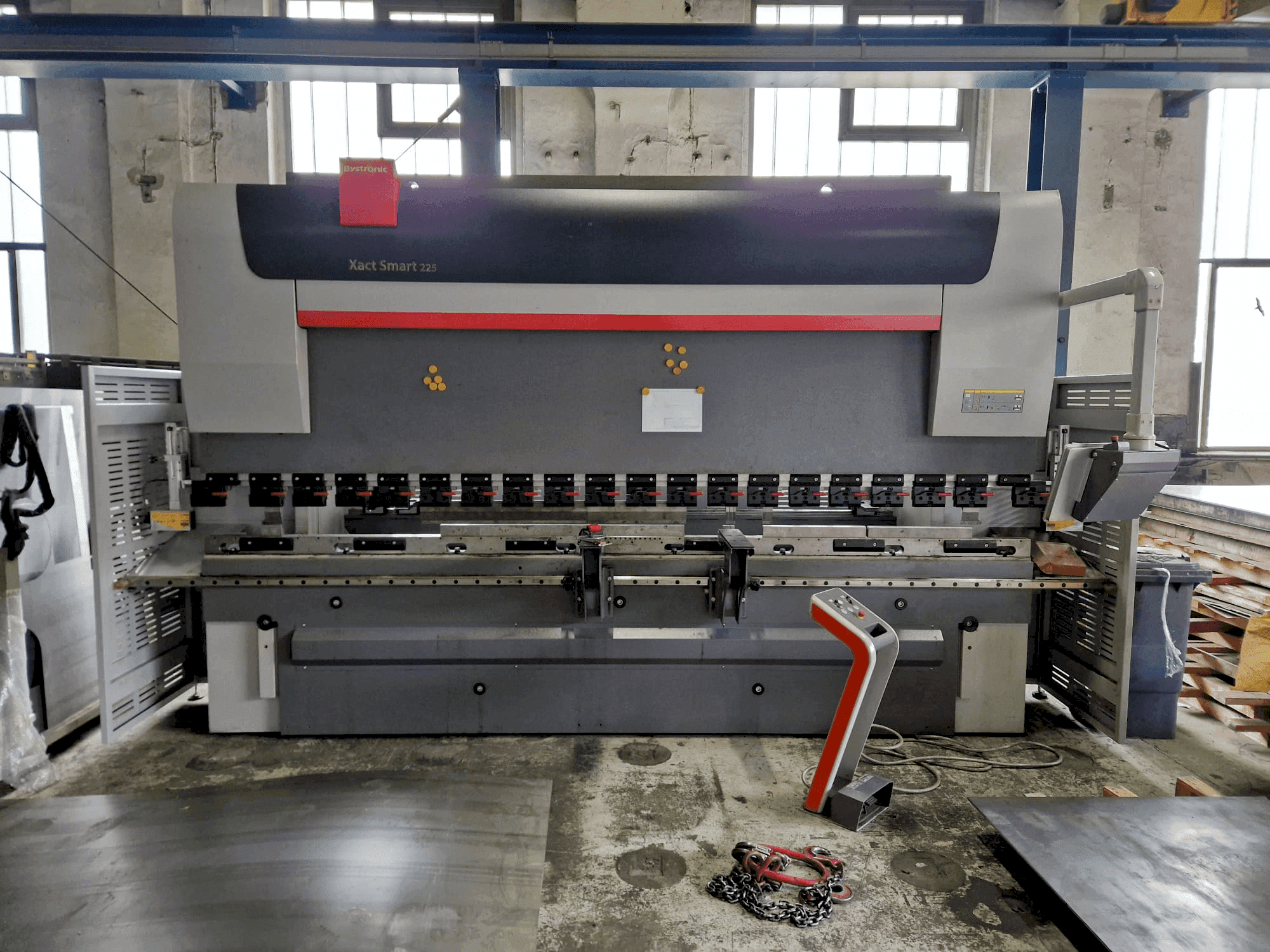

This 4-axis Bystronic Xact Smart 225/4100 press brake was manufactured in 2021. It features a press force of 2250 kN, a bending length of 4100 mm, and a throat depth of 400 mm. The machine includes a 4-axis back gauge and a high-speed package that enhances working speeds up to 13 mm/s. If you are looking to get high-quality bending capabilities, consider the Bystronic Xact Smart 225/4100 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Bystronic
year: 2021
MODEL: Xact Smart 225/4100
application type: Bending
Location: Germany
machine type: Press Brake
availability: Immediately

Technical Information - Bystronic Xact Smart 225/4100

General Data

Measurements width: 1880 mm
Measurements depth: 4910 mm
Measurements height: 2780 mm
Machine weight: 15000 kg

Main drive

Spindle motor power: 15 kW
Bending length: 4100 mm
Stroke: 200 mm
Number of axis: 4

Movement

X-AXIS Movement: 600 mm
X-AXIS Accuracy: 0.05 mm
Y-AXIS Accuracy: 0.01 mm
Z-AXIS Movement: 2800 mm
R-AXIS Movement: 150 mm
R-AXIS Accuracy: 0.05 mm

Table

Outer width: 60 mm

Media

Oil tank: 350 l

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Press force: 2250 kn
- - Installation height: 480 mm
- - Distance between uprights: 3420 mm
- - Throat depth: 400 mm
- - Back gauge (x-axis) max range: 850 mm // back gauge (x-axis) speed: 600 mm/s
- - R-axis (height adjustment) speed: 200 mm/s
- - Z-axis (lateral adjustment) speed: 1000 mm/s
- - Max rapid speed: 140 mm/s // rapid speed with high-speed package: 160 mm/s
- - Max working speed: 10 mm/s
- - Working speed with high-speed package: 13 mm/s

Extra information

- Tools Dies: V16/30° L=515 mm: 5x V16/30° L=550 mm sect.: 1x Punches: 1014/88° R=0.8 L=835 mm EURO-B: 3x 1014/88° R=0.8 L=835 mm EURO-B sect.: 1x 1012/35° R=0.8 L=835 mm EURO-B: 3x 1012/35° R=0.8 L=835 mm EURO-B sect.: 1x

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
