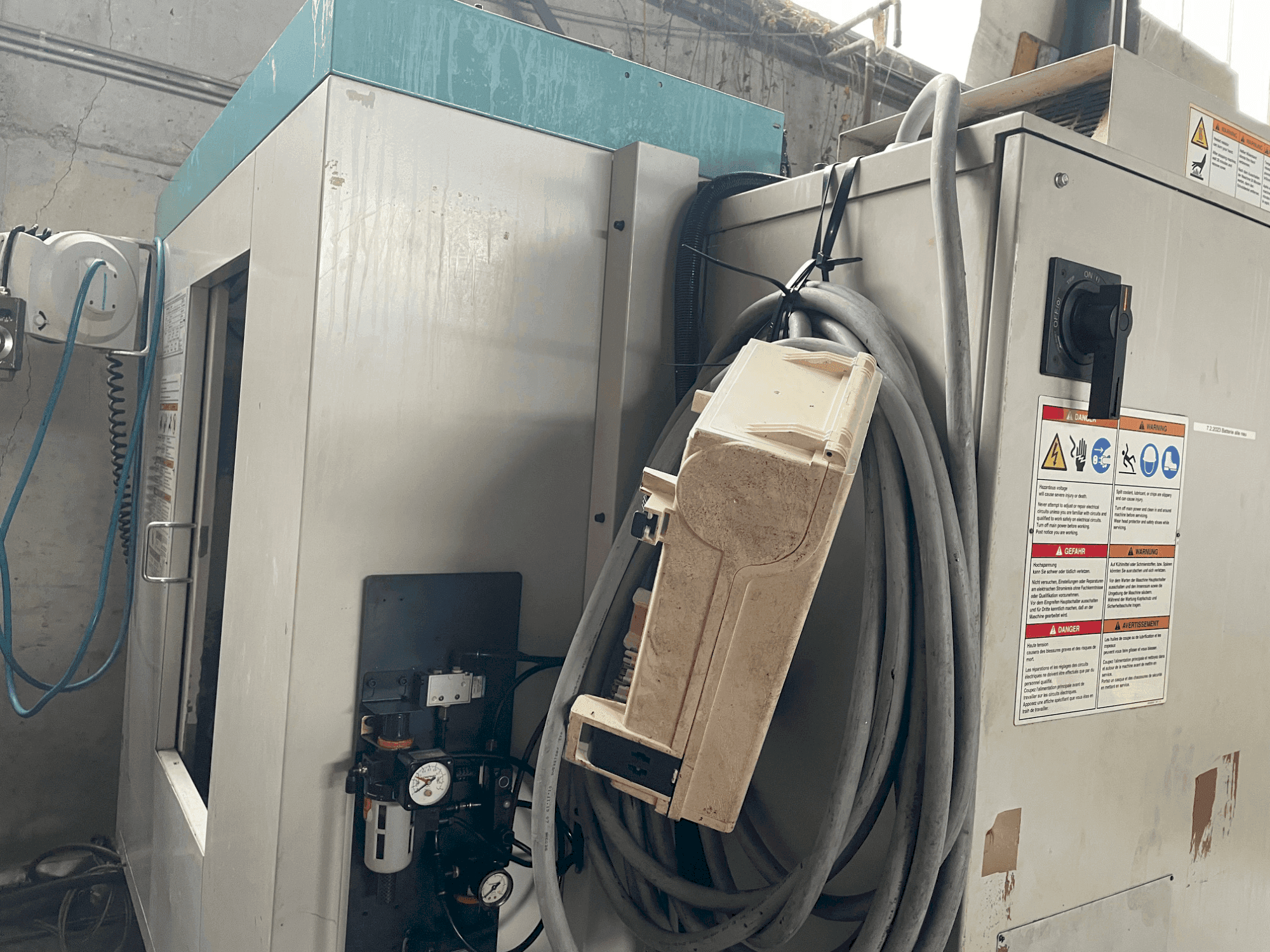

➤ Used BROTHER TC 22A - 1999 - Sawing machine For sale

Show in original language

This vertical machining center was manufactured in 1999. The BROTHER TC 22A features a spindle speed of up to 20,000 rpm and rapid traverse rates of 56,000 mm/min, enhancing its efficiency. The machine can handle a maximum load of 200 kg, and its compact dimensions require less floor space. Considering the BROTHER TC 22A vertical machining center we have for sale, reach out for further details regarding this vertical machining center.

Overview

brand: Brother
year: 1999
MODEL: TC22A
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - Brother TC22A

General Data

Measurements height: 2274 mm
Machine weight: 2250 kg

Main drive

Number of spindles: 1
Spindle speed range: 12-20000 1/MIN

Movement

X-AXIS Movement: 500mm
X-AXIS Rapid traverse: 56.000 mm/min
Y-AXIS Movement: 400mm
Y-AXIS Rapid traverse: 56.000 mm/min
Z-AXIS Movement: 410mm
Z-AXIS Rapid traverse: 56.000 mm/min

Table

Table load: 200kg

Tools

Slots in storage: 18
Max tool diameter: 55 mm
Max tool length: 200 mm
Type of tool holder: HSK-A40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from table top surface to spindle nose: 200-610mm
- - Distance from column front to axis of spindle: 294mm
- - Table working surface: 650x400mm
- - Required floor space: 1671 x 2846 mm
- - Tool changing time: 0,7sec
- - Cutting feedrate: 5-20. 000 mm/min
- - Manual feedrate: 50-40. 000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
