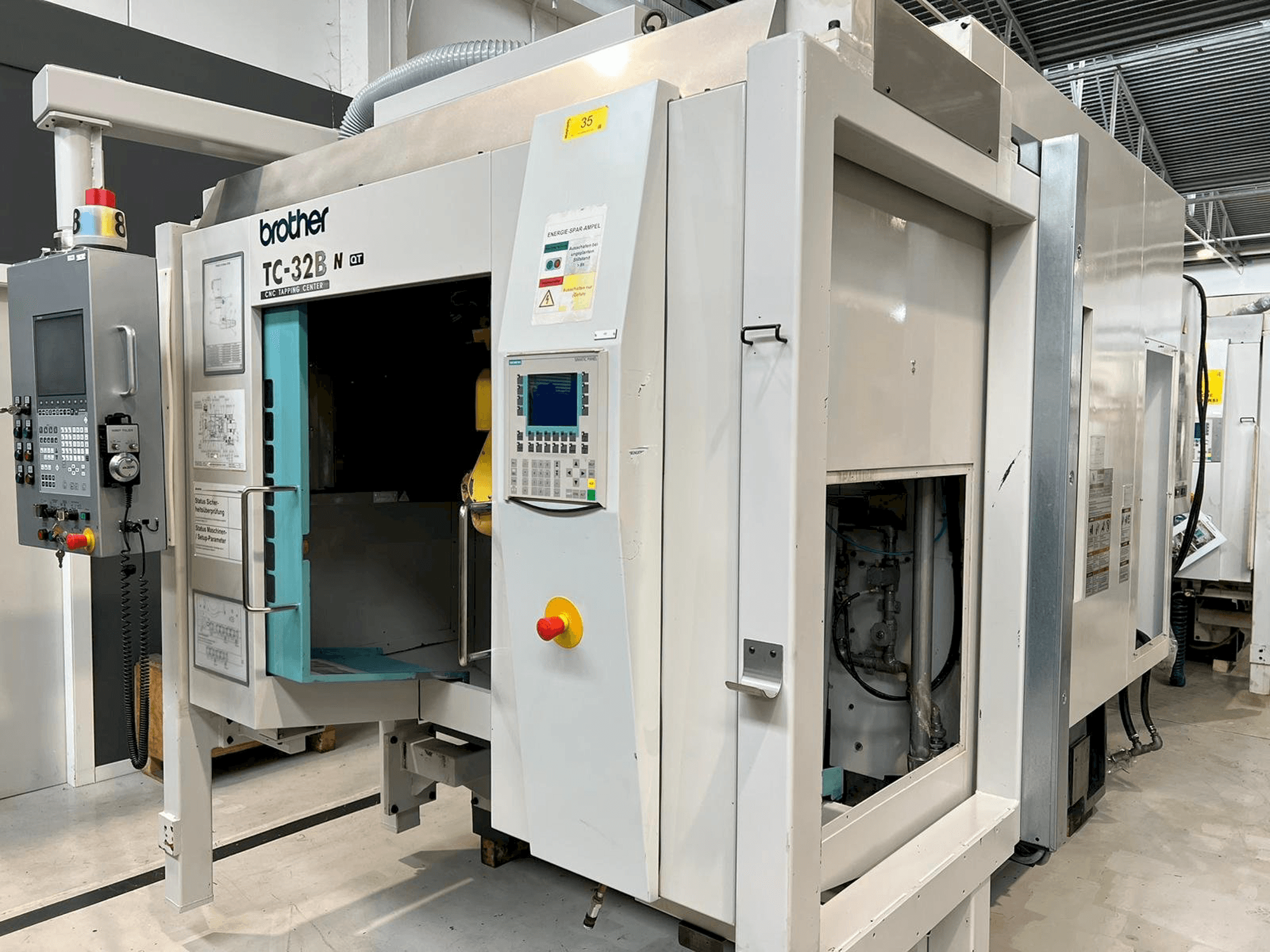

Brother TC-32BN QT Vertical Machining center

Show in original language

This Brother TC-32BN QT Vertical Machining center was manufactured in the year 2008 in Japan. It is equipped with a Brother CNC INTERFACE UNIT control unit and has 3+2 axis. The machine has a spindle speed of 12000 rpm. There are 2 units available.

Overview

brand: Brother
year: 2008
MODEL: TC-32BN QT
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BROTHER

Technical Information - Brother TC-32BN QT

Control Unit

Model: CNC INTERFACE UNIT
Brand: BROTHER

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 16 KW
Tool taper: HSK A 40
Number of axis: 3+2

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 400 MM
Z-AXIS Movement: 415 mm

Table

Outer length: 600 mm
Outer width: 425 MM
Table load: 200 KG

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working speed xyz 1-20000 mm/min.
- - Rapid stroke xyz 70 m/min.
- - Distance between table and spindle nose 645 mm.
- - Repeatability error +/- 0,003 mm.
- - Positioning error 0. 005 on 300 mm.
- - Table position 3,4/180°
- - Rigid tapping 8000 rpm max
- - Capacity mag. Tools 40 places
- - Random selection type
- - Tool change time 0,9 sec.
Qualitative Machine Benefits:
- - Chip/chip time 2 sec.
- - Flyer
- - Spindle override
- - Work area lamp
- - Rotary table
- - Refrigeration through spindle
- - Fanuc arc mate 200 i b integrated robot
- - L-shaped palletizer
- - N. 2 lehman tables iv axis complete with counter support

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
