Brother TC-324N Vertical Machining Center

Show in original language

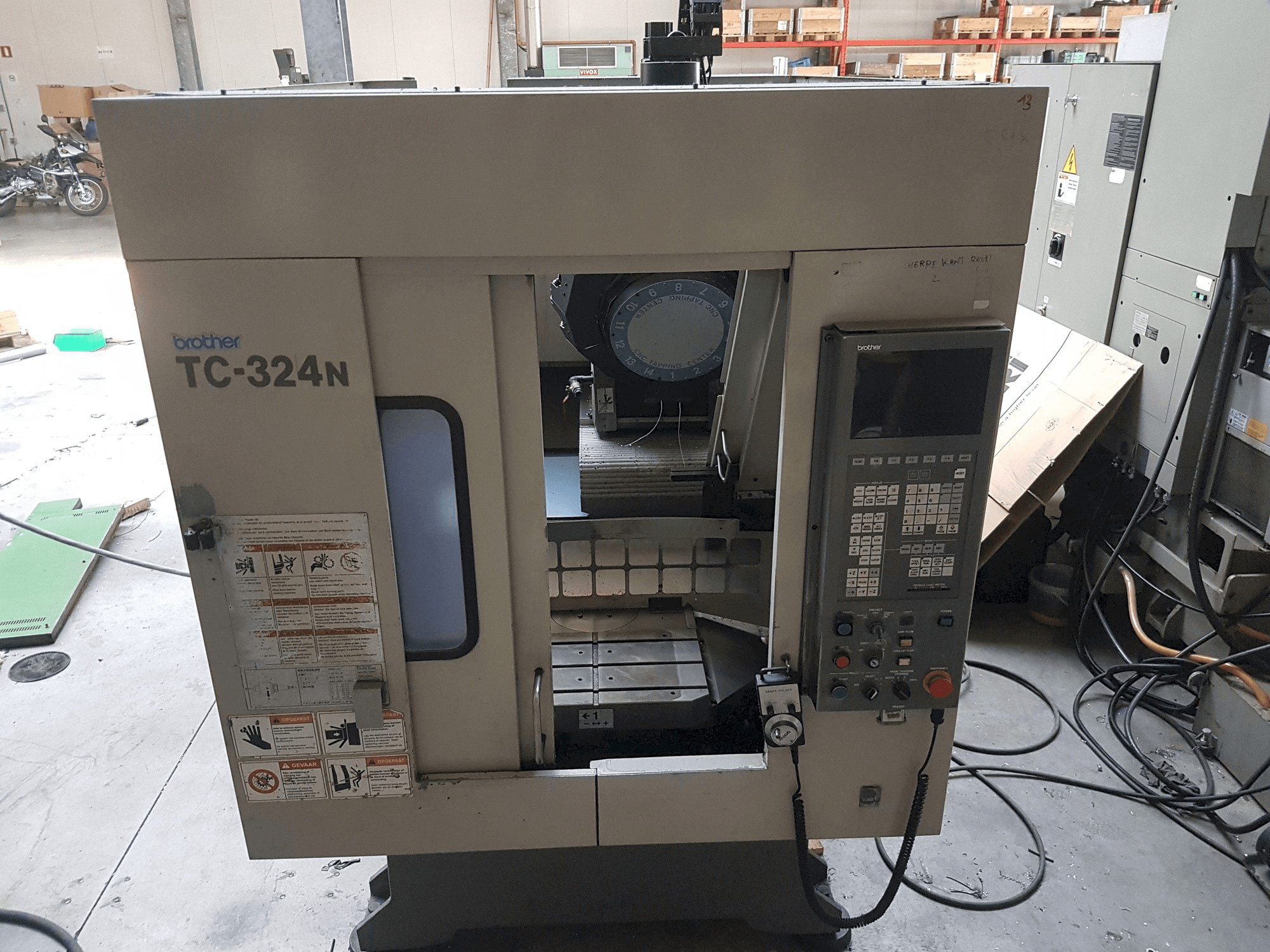

This Brother TC-324N Vertical Machining Center was produced in Japan in the year 1997. It is equipped with a Brother control unit. This machine incorporates 14 slots in storage, and can work with a spindle speed up to 10000 rpm.

Overview

brand: Brother
year: 1997
MODEL: TC-324N
application type: Milling
Location: Belgium
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BROTHER

Technical Information - Brother TC-324N

General Data

Machine weight: 2800 kg

Control Unit

Brand: BROTHER

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 420 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 190 mm

Tools

Slots in storage: 14
Type of tool holder: BT30

Media

Main electronic connection: 3 x 380 V
Power consumption: 9 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
