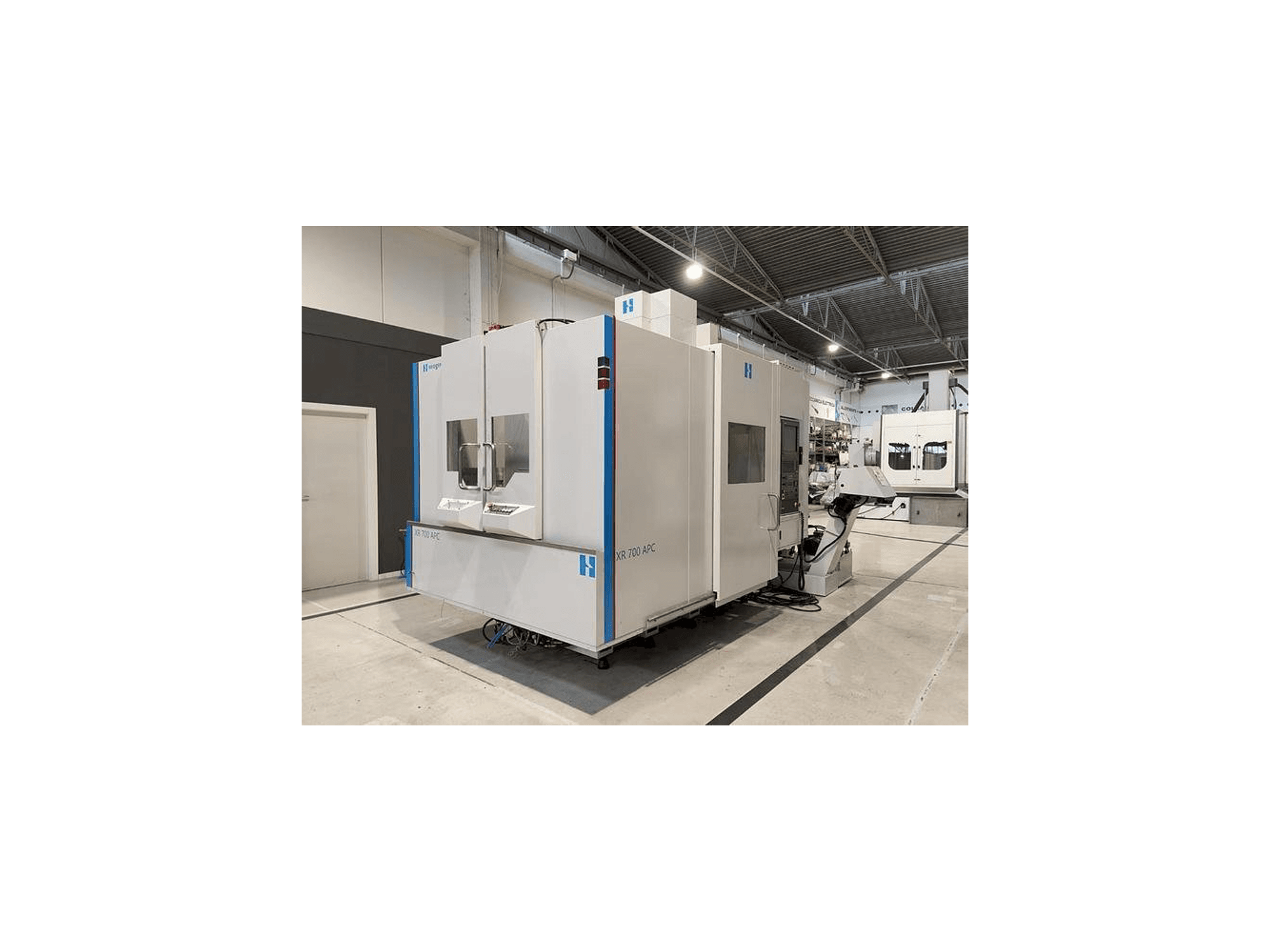

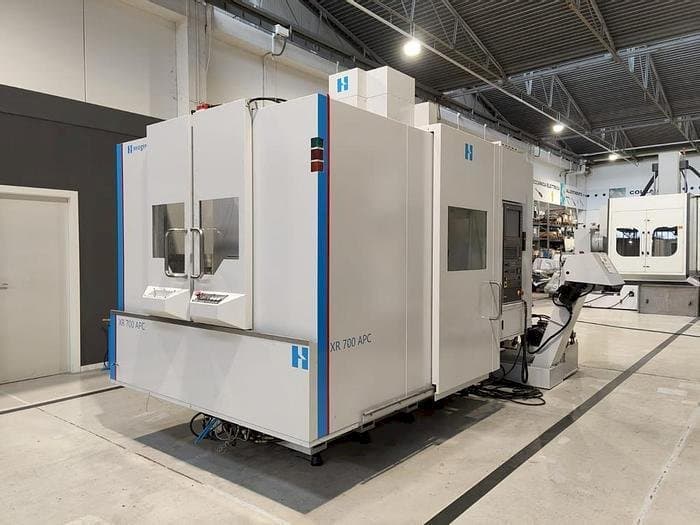

Bridgeport XR-700 APC Vertical Machining Center

Show in original language

This Bridgeport XR-700 APC Vertical Machining Center was manufactured in the year 2007 in the Italy. It is operated through a Heidenhain TNC 530 control unit. This 3 axis machine can work with a spindle speed of 12000 rpm and a spindle power of 21 Kw.

Overview

brand: Bridgeport
year: 2007
MODEL: XR-700 APC
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport XR-700 APC

Control Unit

Model: TNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 21 Kw
Tool taper: BT40

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 560 mm

Turret

Number of turrets: 42 positions

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feed x-y-z 40m/min
- - N. Of pallets 2
- - Pallets size 800 x 500 mm
Qualitative Machine Benefits:
- - Machine in perfect condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
