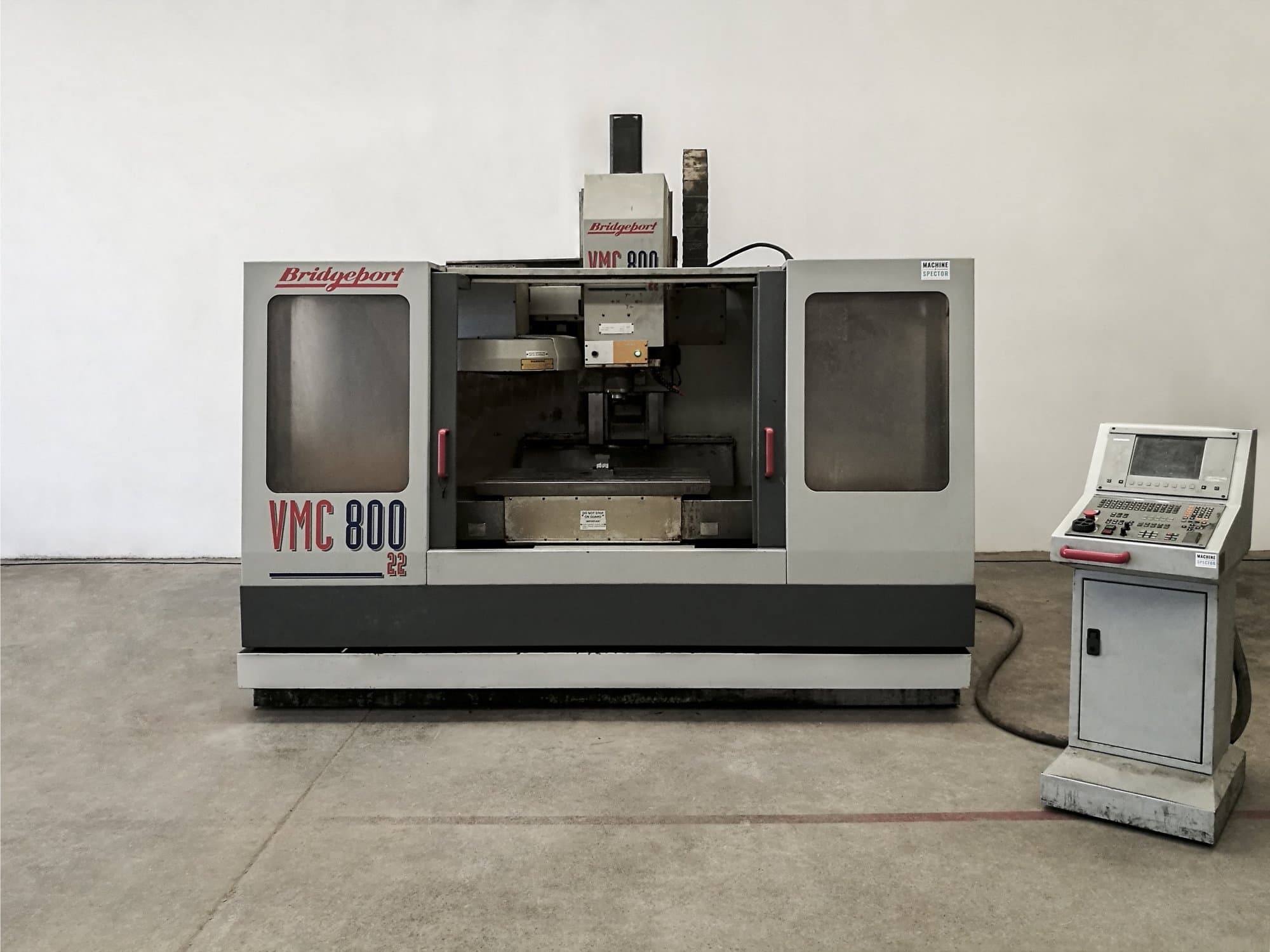

Bridgeport VMC 800.22 Vertical Machining Center

Show in original language

This Bridgeport VMC 800.22 Vertical Machining Center was manufactured in 1997 in the United Kingdom and has been operative for 24188 productions hours since then. Operated through a HEIDENHAIN TNC 426 Control unit, this model is DNC-ready and can receive CAM programs via ethernet. The machine stands out due to its maximum table load of 750kg and performs tool changes in 5.2 seconds.

Overview

brand: Bridgeport
year: 1997
MODEL: VMC 800.22
production hours: 24188
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 800.22

General Data

Measurements width: 2830 mm
Measurements depth: 2160 mm
Measurements height: 2595 mm
Machine weight: 3480 kg

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 40-6000 1/min
Spindle motor power: 11 kW
Tool taper: BT 40

Movement

X-AXIS Movement: 800 mm
X-AXIS Rapid traverse: 40 m/min
X-AXIS Accuracy: 0.005 mm
Y-AXIS Movement: 510 mm
Y-AXIS Rapid traverse: 40 m/min
Y-AXIS Accuracy: 0.005 mm
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 25 m/min
Z-AXIS Accuracy: 0.005 mm

Workpiece

Workpiece weight: 750 kg

Table

Outer length: 1000 mm
Outer width: 490 mm
TSlots size: 100 mm
Number of tslots: 5

Tools

Slots in storage: 22
Max weight: 6 kg
Max tool diameter: 130 mm
Max tool length: 250 mm

Media

Main electronic connection: 420 V / 50 Hz / 3P
Power consumption: 20 kVA
Air pressure: 5.5 bar
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
