BOY - 55MDE-INJ-BOY-2004-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Boy 55M Injection moulding machine

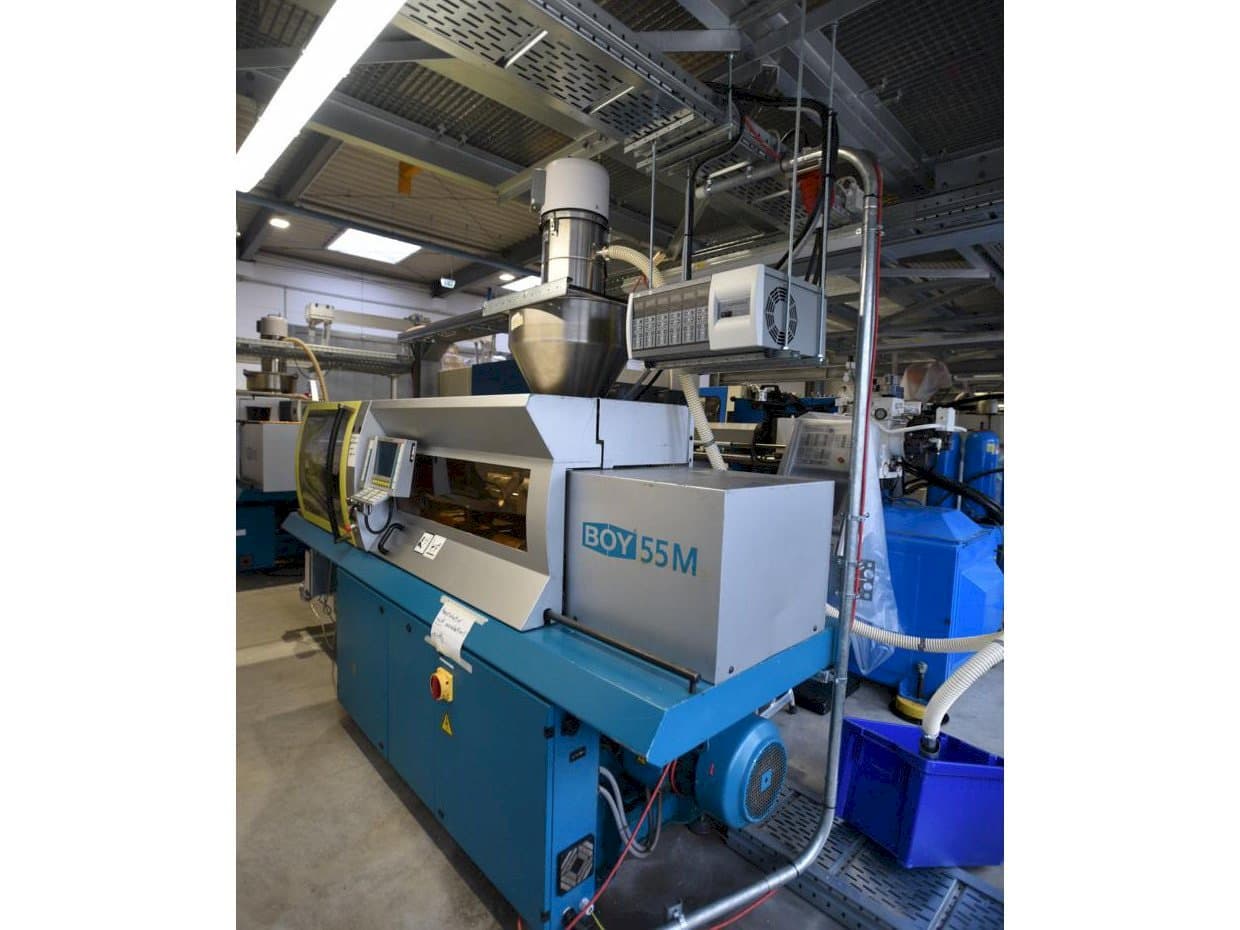

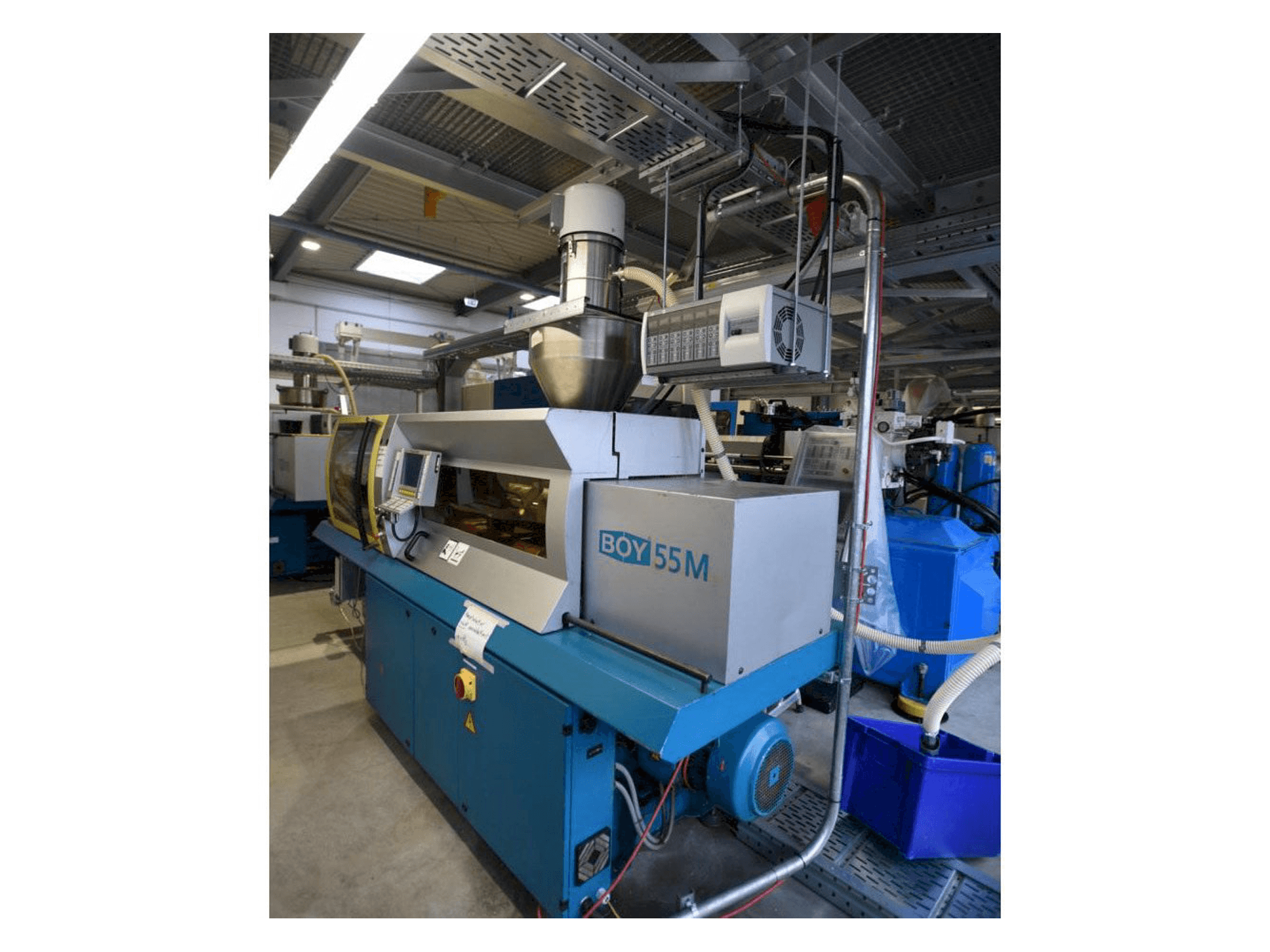

This Boy 55M Injection moulding machine was made in 2004 in Germany and has 113.279 hours. The machine has a clamping force of 550 kN.
Overview
- brand: BOY
- year: 2004
- MODEL: 55M
- production hours: 113279
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
Technical Information - BOY 55M
General Data
- Measurements width: 2700 mm
- Measurements depth: 1100 mm
- Measurements height: 1700 mm
- Machine weight: 2250 kg
Injection Unit
- Screw diameter: 38 mm
- Stroke volume: 136.1 CM³
- Injection pressure: 1508 bar
Clamping unit
- Clamping force: 550 kN
- Distance between bars: 360 x 335 mm
- Mould height min: 250 mm
- Mould height max: 650 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
