BOEHRINGER - VDF DUE 560DE-TUR-BOE-2004-00001

Name: BOEHRINGER VDF DUE 560
Brand: BOEHRINGER
SKU: DE-TUR-BOE-2004-00001
Price: 10150 GBP
Availability: InStock

£ 10,150

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used BOEHRINGER VDF DUE 560 For Sale | gindumac.com

Show in original language

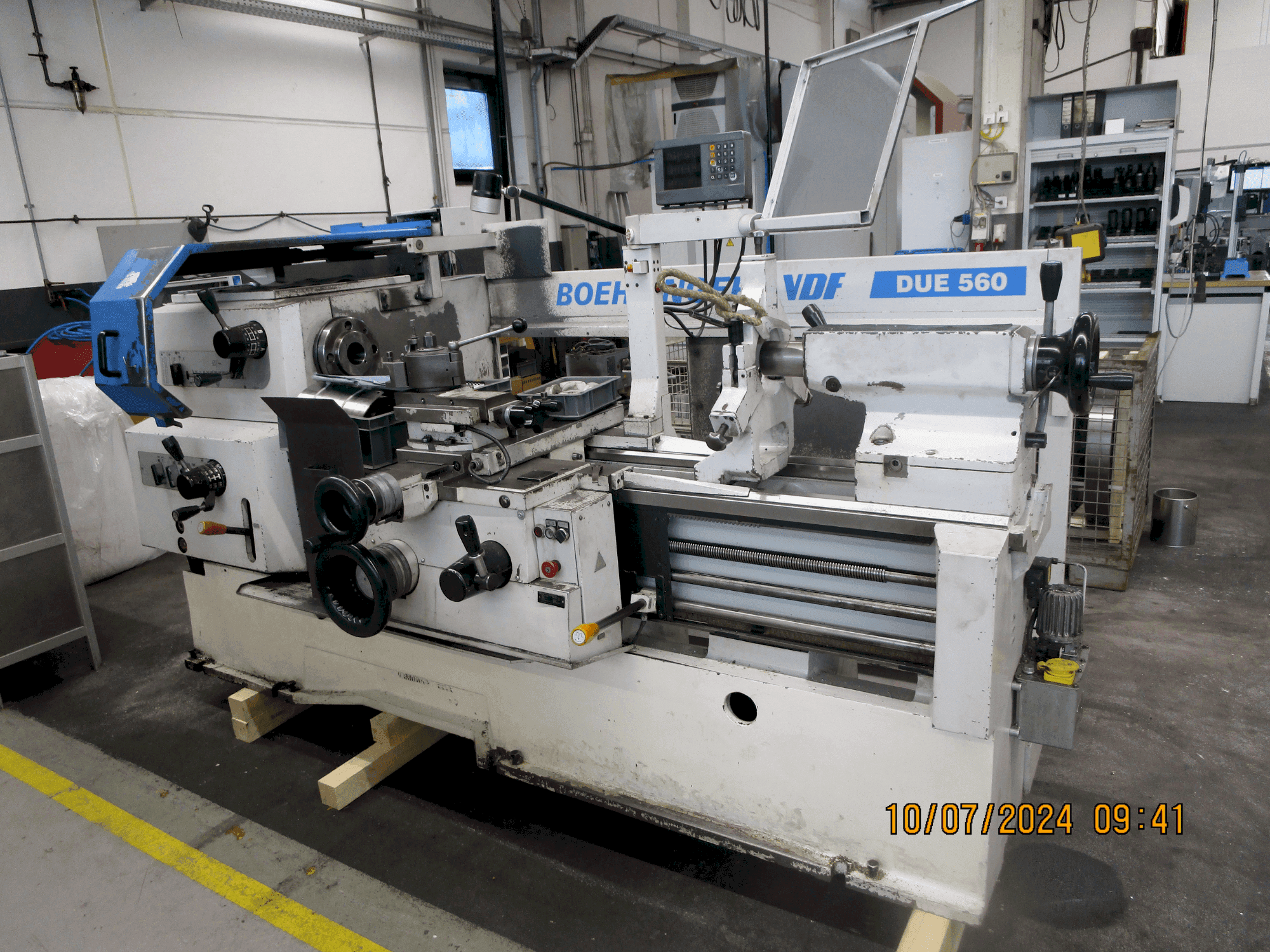

This BOEHRINGER VDF DUE 560 lathe was manufactured in 2004. It features a center height of 280mm, a maximum circulation diameter over bed of 570mm, and a bed width of 360mm. The spindle bore diameter is 62mm, and it offers a robust drive power of 15kW with 24 speed settings ranging from 11.2 to 2240 rpm. A great opportunity to buy this BOEHRINGER VDF DUE 560 lathe. Reach out for more information.

Overview

brand: BOEHRINGER
year: 2004
MODEL: VDF DUE 560
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately

Technical Information - BOEHRINGER VDF DUE 560

Main drive

Spindle speed range: 11.2 - 2240 1/MIN
Spindle motor power: 15kW
Tool taper: Tailstock center point morse taper: No. 5
Number of axis: 2

Workpiece

Workpiece drm over bed: 570 mm
Workpiece drm over support: 365 mm

Additional Equipment

- chuck not included
- Machine documentation is complete.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Center height above flat track: 280mm
- - Bed width: 360mm
- - Machine includes a tailstock and setting stock / diameter of the tailstock quill: 80mm
- - Quill stroke: 190mm
- - Bed slide guide length: 520mm
- - Face slide width/travel: 225/345
- - Top support width/travel: 140/125
- - Setting sticks consisting of guide diameter: 20-315 with guide diameter: 25-160
- - Main spindle spindle head according to din 55027 size: 8
- - Spindle diameter in front bearing: 100mm
Qualitative Machine Benefits:
- - Diameter of spindle bore: 62mm
- - 24 speeds over wheels
- - Step change: 1. 25
- - Max. Torque: 2000 nm
- - Center length approx 1200 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
