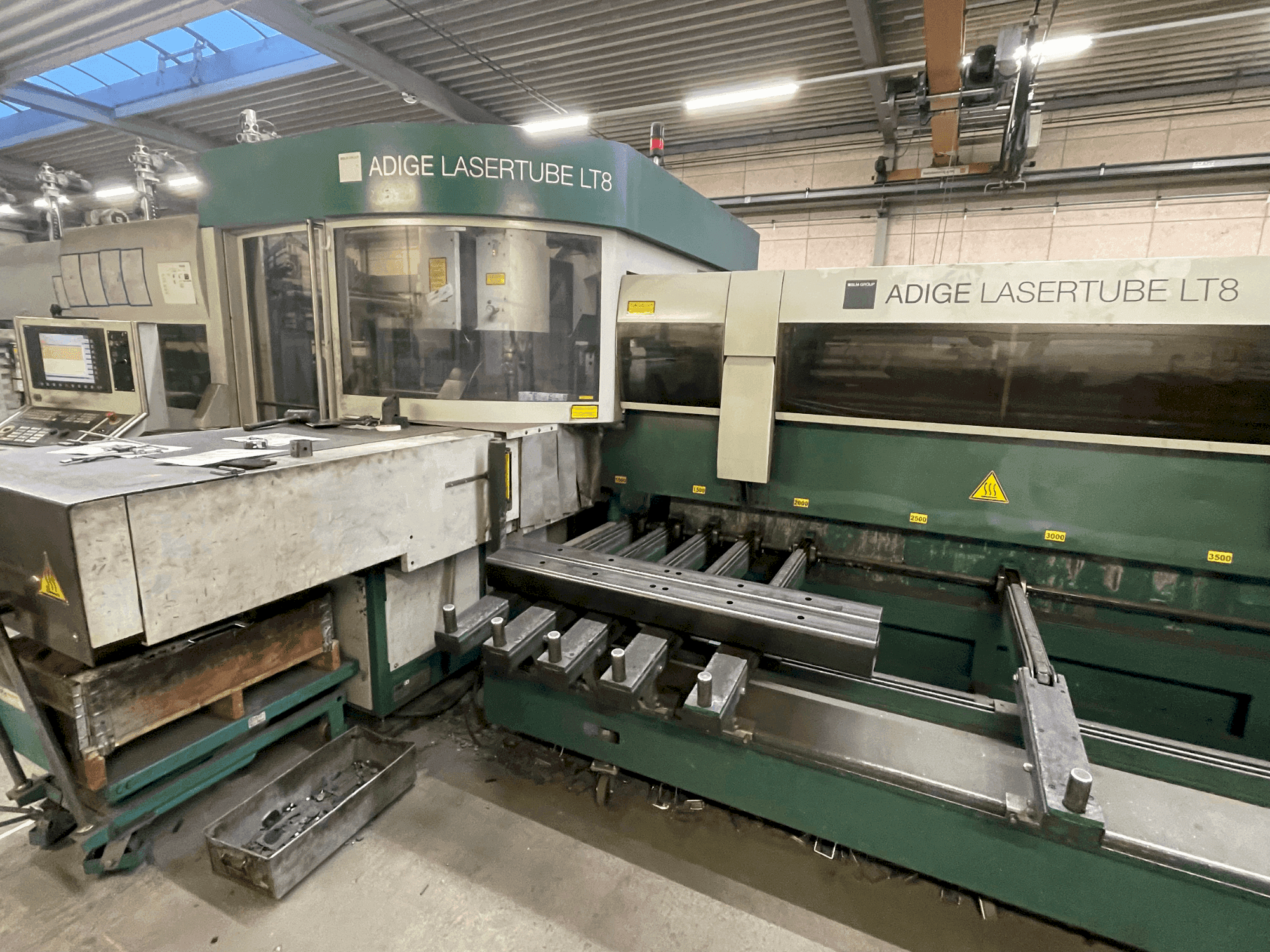

BLM - Adige LT8NL-CUT-BLM-2010-00001

Additional Equipment

• - 8.5 meter automatic bundle loader input at the rear, manual loading at the front
• - 6.5 meter output length
• - Filter installation
• - 3D cutting head

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Round shape: 12 to 220 mm
  • - Square shape: 12 to 200 mm
  • - Rectangular and flat-oval shape: inscribed in a circle of 285 mm with a minimum side of 10 mm and maximum side of 200 mm
  • - Maximum bar length: 6500 mm
  • - End bar minimum scrap: 110 mm
  • - Maximum bar weight: 35 kg/m
  • - Fully automatic bars loading, cutting, and unloading of processed parts
  • - High flexibility and productivity with modular system configuration
  • - Available with one or two loading devices, frontward and backward
  • - Three parts unloading positions with two-position automatic scraps collection device
• Qualitative Machine Benefits:
  • - Full automatic setup operations for loader, machine, tube supports, and unloader
  • - Compatible with sections like flats from 40x5 to 200x12 mm, and l, c, u profiles from 30x20 to 200x200 mm
  • - Compatibility with sections, dimensions, thickness, and initial length to be verified with the manufacturer.

Extra information

• - Machine still under power
