Biglia B650 YS Lathe

Show in original language

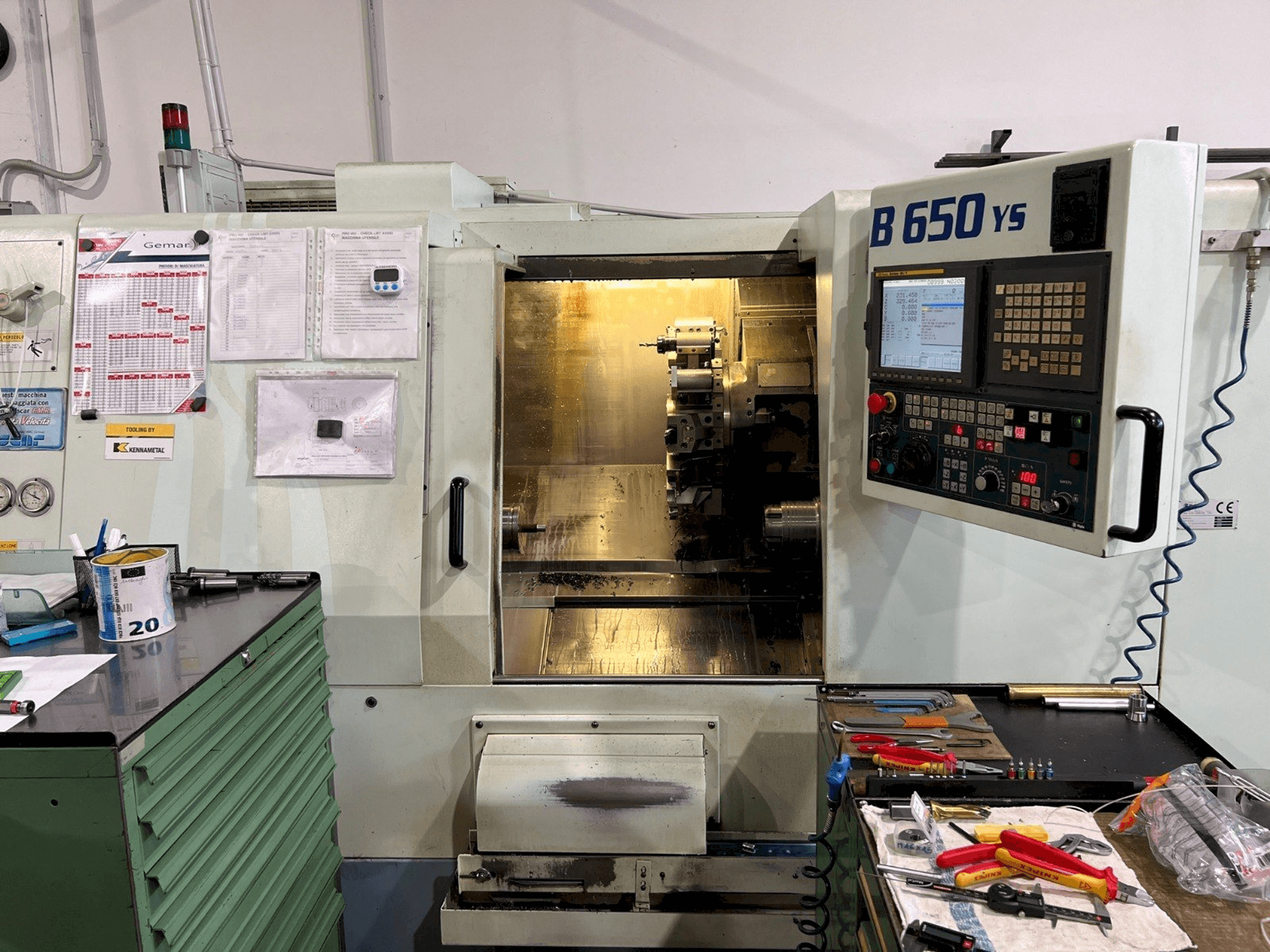

This Biglia B650 YS Lathe was built in 2002 and has 12238 hours. It is equipped with a Fanuc 18I-Tcontrol unit. The machine has a main spindle speed of 4500 rpm.

Overview

brand: Biglia
year: 2002
MODEL: B650 YS
production hours: 12238
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Biglia B650 YS

General Data

Measurements width: 4450 mm
Measurements depth: 2000 mm
Measurements height: 2100 mm
Machine weight: 6500 kg

Control Unit

Model: 18I-T
Brand: FANUC

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: 15 kw

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 110 mm (+60 / -50)
Z-AXIS Movement: 650 mm
B-AXIS Movement: 650 mm

Additional Equipment

- Collect chucks max. 70 mm for main spindle
- Collects chucks max. 42 mm for sub spindle
- Software for monitoring power axis
- KIT full for bar feeder
- Tool setter
- Axial rotary tools
- Radial rotary tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: 400 mm
- - Max bar diameter: 65 mm
- - Spindle nose: asa 6”
- - Spindle nose: flat diam. 140
- - Max bar diameter: 38 mm
- - Sub spindle: 5000 rpm, 11 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
