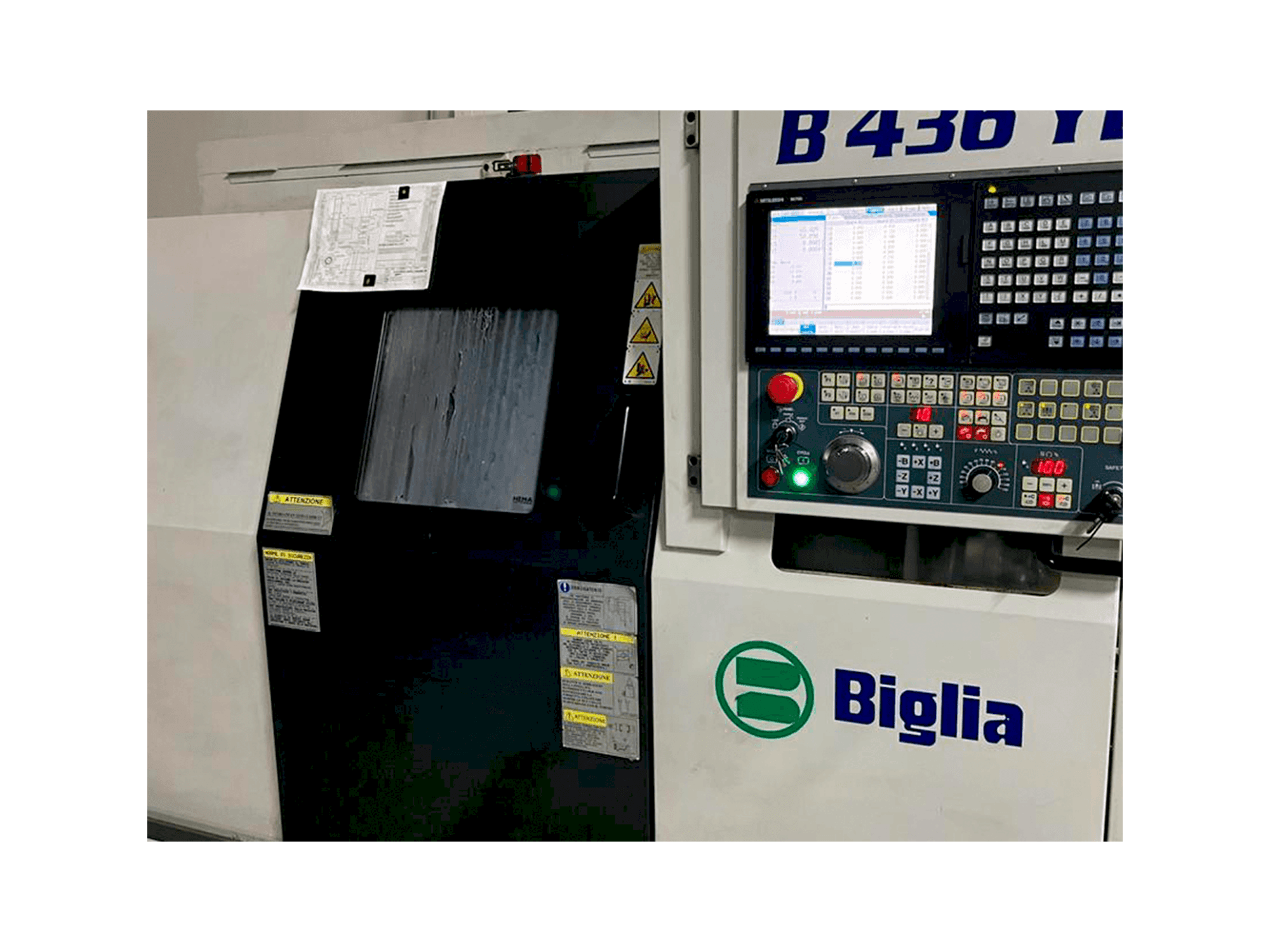

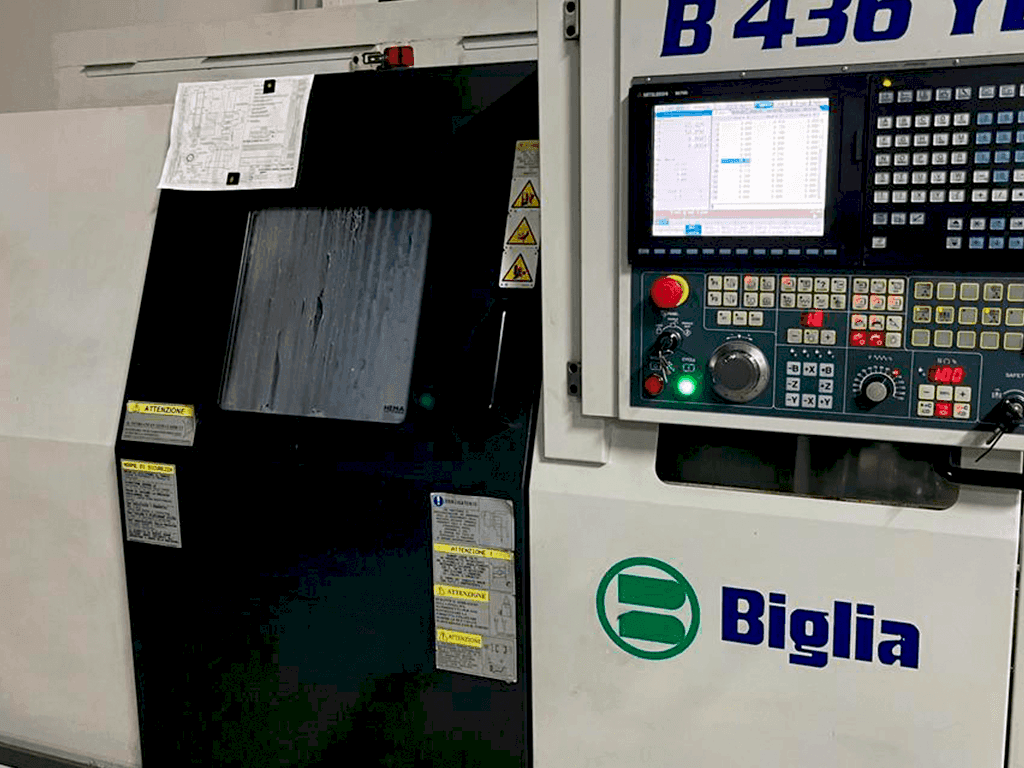

Front view of Biglia B436 Y2  machine

Biglia - B436 Y2IT-TUR-BIG-2015-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Biglia B436 Y2 Lathe was manufactured in the year 2015. It is equipped with a Mitsubishi M700 control unit and has 10 axis. The machine has a spindle speed of 7000 rpm.

Overview

  • brand: Biglia
  • year: 2015
  • MODEL: B436 Y2
  • application type: Turning
  • Location: Italy
  • machine type: Turn-Mill Centre
  • availability: Sold
  • control unit brand: MITSUBISHI

Technical Information - Biglia B436 Y2

General Data

  • Measurements width: 3682 mm
  • Measurements depth: 1430 mm
  • Measurements height: 1900 mm
  • Machine weight: 5000 kg

Control Unit

  • Model: M700
  • Brand: MITSUBISHI

Main drive

  • Number of spindles: 2
  • Spindle speed range: 7000 1/MIN
  • Spindle motor power: 11 kW
  • Number of axis: 10

Movement

  • C-AXIS Movement: 0.001 º MM

Turret

  • Number of turrets: 2
  • Number of tool slots: 12

Media

  • Main electronic connection: 400 V

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max. Bar diameter : 36 mm
      • - Max. Chuck diameter : 100 mm
      • - Spindle nose : a2-5
      • - Counter spindle: max. Bar diameter : 36 mm, max. Turning diameter : 100 mm
      • - Turret 1 number of positions : 12 number of motorized positions : 12 x/z stroke : 85/300 [mm] - y stroke : -25/+25 [mm] live tools speed : 6000 [rpm] live tools power : 4. 6 [kw]
      • - Turret 2 number of positions : 12 - number of motorized positions : 12 x/z stroke : 35/300 [mm] y stroke : -25/+25 [mm] live tools speed : 6000 [rpm] live tools power : 4. 6 [kw]
    • Qualitative Machine Benefits:
      • - Barfeeder top included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
