➤ Used Biglia B1200S SMART TURN For sale | gindumac.com

Show in original language

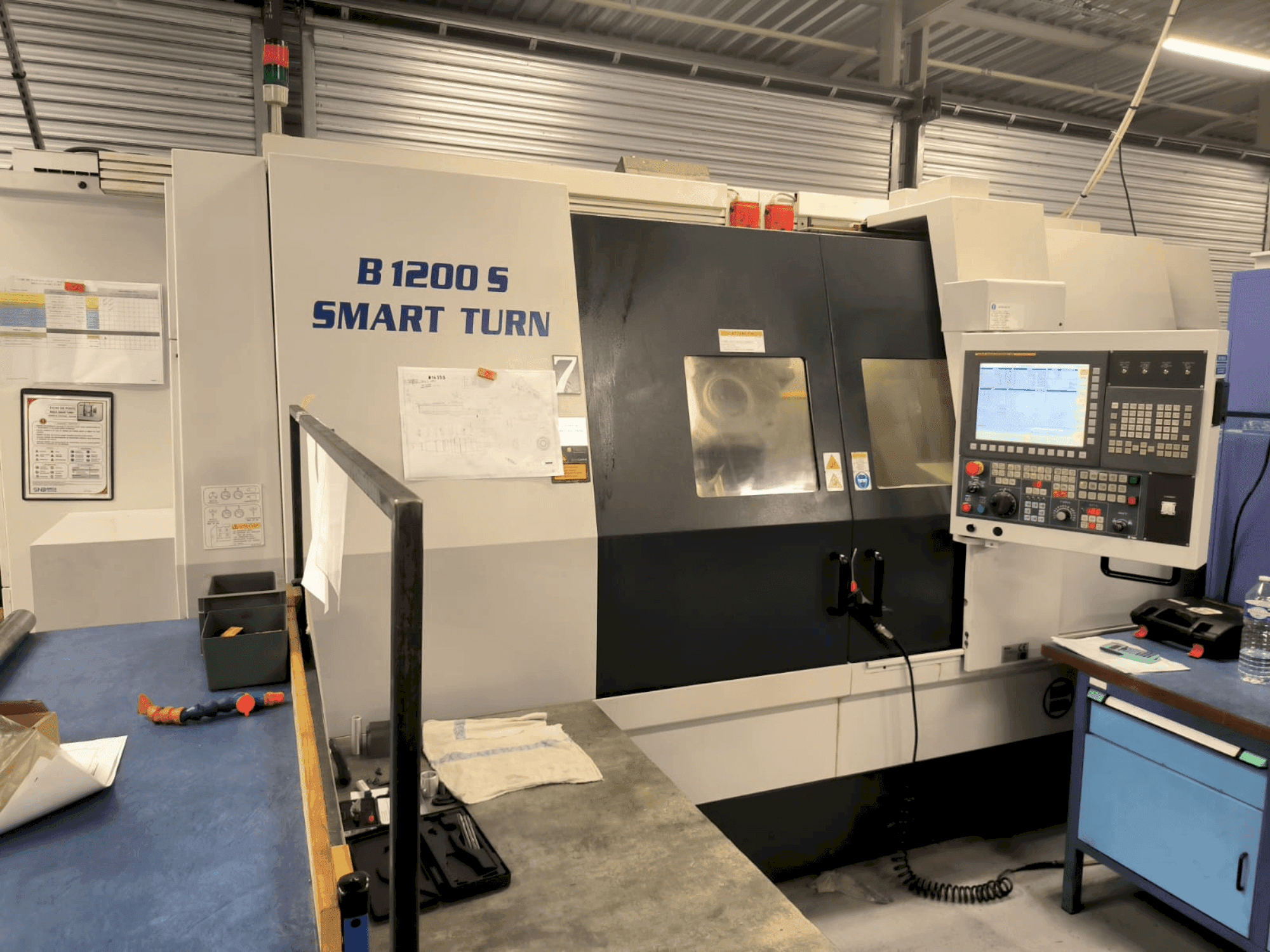

This 5-axis Biglia B1200S SMART TURN lathe was manufactured in 2014. It features a Fanuc 31i control unit, a maximum turning diameter of 750 mm, and a turning length of 1260 mm. Equipped with a tool magazine capacity of 40 posts and a milling head maximum speed of 8000 rpm. Ideal for complex machining tasks, the Biglia B1200S SMART TURN we have for sale represents a significant opportunity. For more information about this lathe, please reach out to us.

Overview

brand: Biglia
year: 2014
MODEL: B1200S SMART TURN
production hours: 7300
application type: Turning
Location: France
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: FANUC

Technical Information - Biglia B1200S SMART TURN

General Data

Measurements width: 2300 mm
Measurements depth: 5500 mm
Measurements height: 2400 mm
Machine weight: 8500 kg

Control Unit

Model: 31i
Brand: FANUC

Main drive

Number of spindles: 3
Spindle speed range: 3000 rpm / 4000 rpm 1/MIN
Spindle motor power: 30 kW / 24 kW
Spindle bore: 94 mm / 65 mm
Tool taper: HSK - 63
Number of axis: 5

Movement

X-AXIS Movement: 510 mm
X-AXIS Rapid traverse: 20000 mm/min
Y-AXIS Movement: +120 / -90 mm
Y-AXIS Rapid traverse: 24000 mm/min
Z-AXIS Movement: 1300 mm
Z-AXIS Rapid traverse: 12000 mm/min
B-AXIS Movement: +/- 105° MM
C-AXIS Movement: Increment 0.001°. MM

Additional Equipment

- Lubrication tank with pump.
- Main spindle // counter spindle // milling spindle

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5-axis capability, high spindle and milling speeds, robust power and torque.
- - Supply voltage: 400 v.
- - Spindle nose din 55026 - asa 8"
- - Counter spindle din 55026 - asa 6"
Qualitative Machine Benefits:
- - High-capacity tool magazine, advanced control system, enhanced productivity and precision.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
