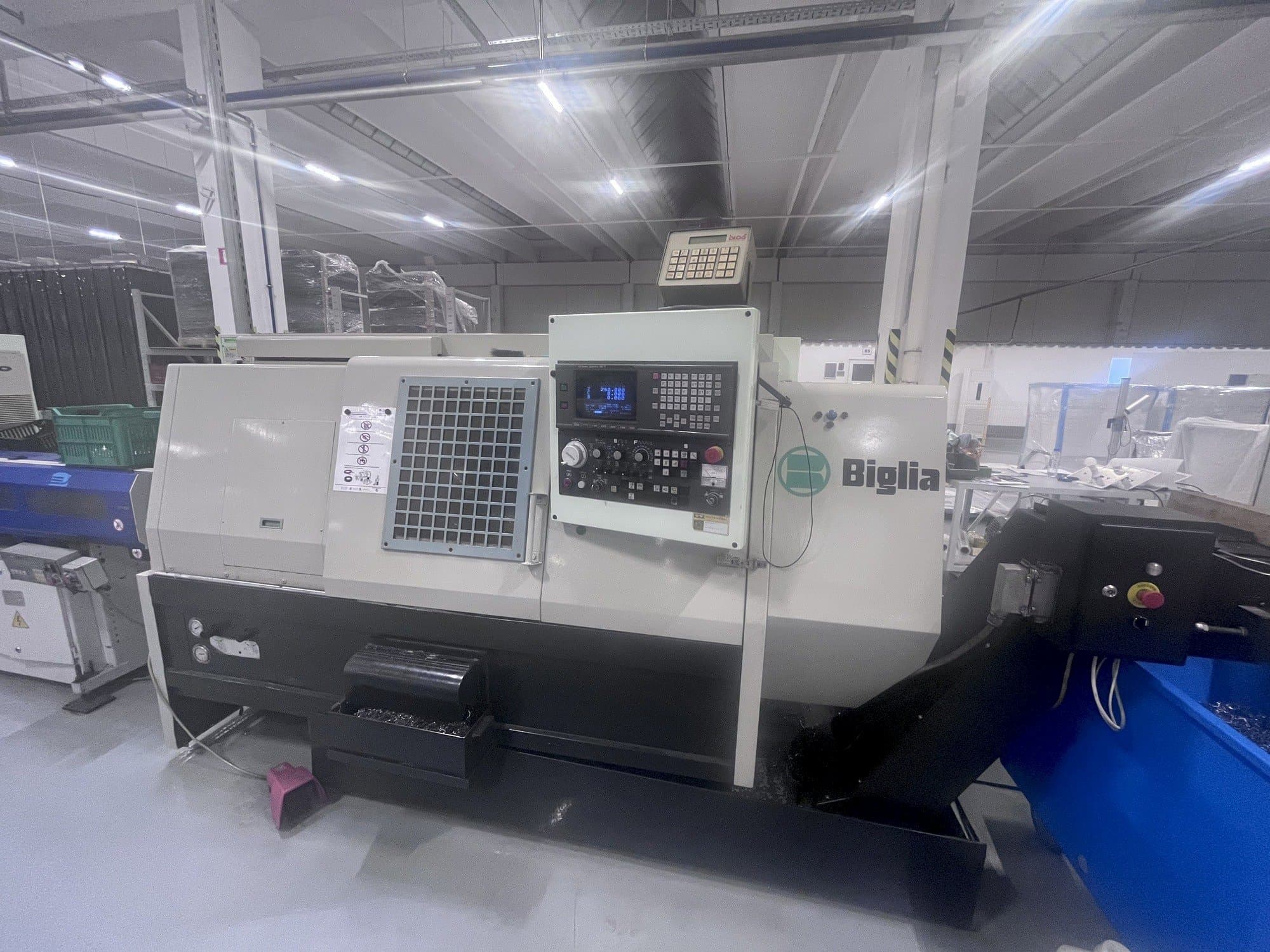

This BIGLIA B 501 MB (1997) Lathe machine was manufactured in 1997. This machine has a tank capacity of 200 liters and a pump flow rate of 100 liters per minute, driven by a pump motor with 0.5 kW power. Regarding its axis specifications, the x-axis has a travel distance of 210+5 mm and moves at a speed of 20 meters per minute, while the z-axis travels a distance of 500+10 mm at the same speed. Contact us anytime for further information.
Overview
- brand: Biglia
- year: 1997
- MODEL: B 501 MB
- application type: Turning
- Location: Bulgaria
- machine type: Turn-Mill Centre
- availability: Immediatly
Technical Information - Biglia B 501 MB
General Data
- Measurements width: 1940 MM
- Measurements depth: 4000 MM
- Measurements height: 1660 MM
- Machine weight: 4700 KG
Main drive
- Spindle speed range: 40-4000 1/MIN
Movement
- X-AXIS Movement: 210+5mm
- Z-AXIS Movement: 500+10mm
Turret
- Number of turrets: 12
Tools
- Slots in storage: 6
Media
- Chip conveyor: Yes
Additional Equipment
- - The bar feeder is not included and not for sale.
Additional Information
- Technical Machine Benefits:
- - Spindle nose: asa 6''
- - Spindle hole: 80mm
- - Maximum bar workable diameter: 54-68mm
- - Maximum workable diameter for shooting: 250mm
- - Maximum workable length: 500mm
- - Maximum rotating diameter: 520mm
- - Front bearing internal diameter: 110mm
- - Self-centering diameter: 210-250mm
- - Caliper group: din 6343
- - Engine power: kw 11-15(50%)-22-26(50%)
- - - Turret type: bidirectional - External tool shank: 25 x 25 mm - Reamer tool shank: 32mm - Rotation time (1 position): 0.7sec - Powered tools: variable rotation range 50-3000rpm, engine power Kw 3.7(50%) - C axis controlled: type CS(direct), minimum programmable value 0.001°, fast speed 80rpm -Hydraulic tailstock: automatic quill travel 100mm, quill diameter 85mm, tip holder cone CM.4, automatic/manual positioning mm 510-440 - Tank capacity: 200l - Pump flow rate: 100 l/min - Pump motor power: 0.5Kw - Main spindle center height 1000mm
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
