Bernardo UWF 95 N Universal Milling Machine

Show in original language

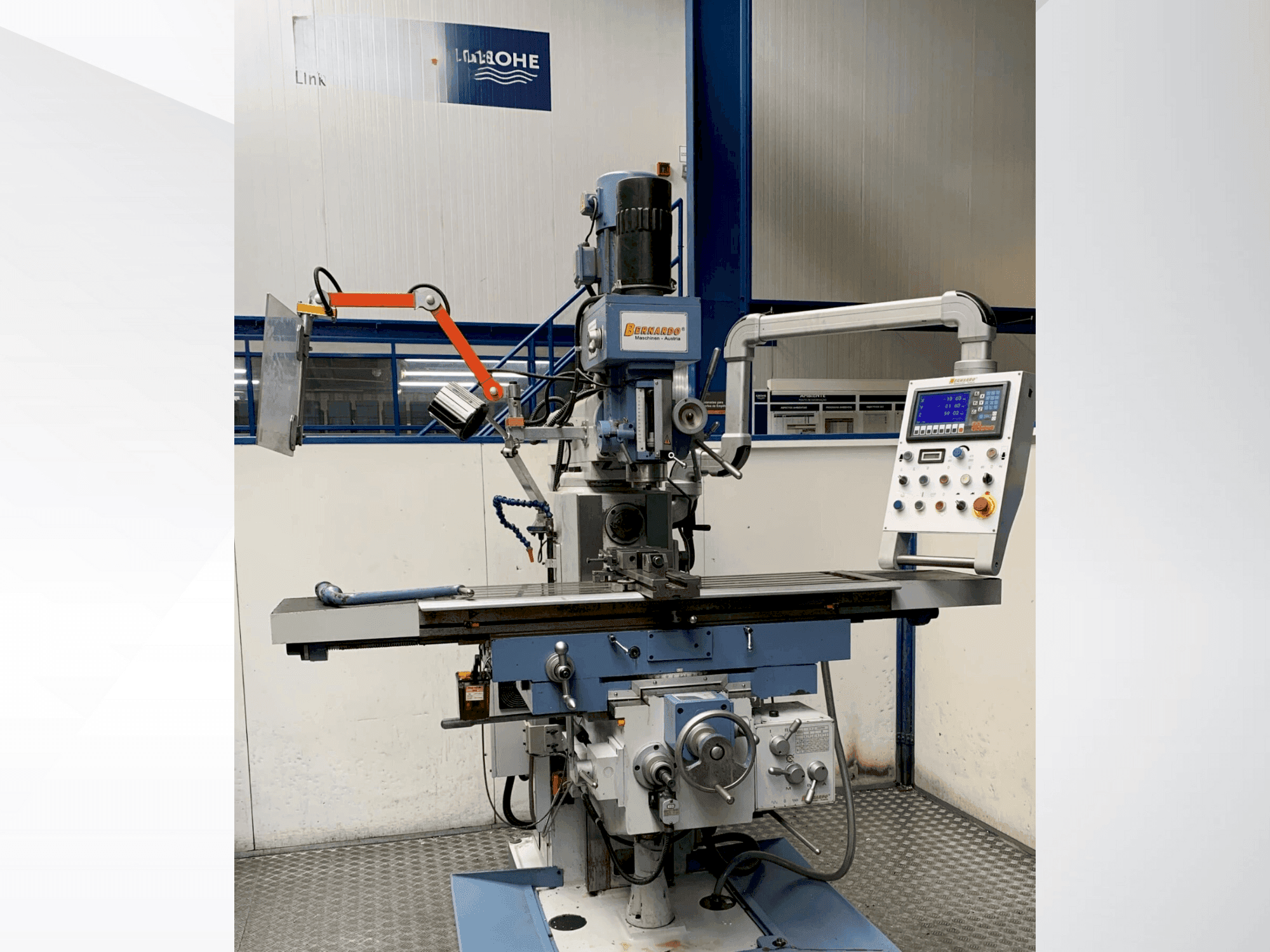

This Bernardo UWF 95 N Universal Milling Machine was built in the year 2020 in Austria. It is equipped with a Bernardo control unit. The machine has a vertical spindle speed of 90 - 2000 rpm and a horizontal spindle speed of 40 - 1300 rpm.

Overview

brand: Bernardo
year: 2020
MODEL: UWF 95 N
application type: Milling
Location: Portugal
machine type: Universal Machining Centre
availability: Sold

Technical Information - Bernardo UWF 95 N

General Data

Measurements width: 2300 mm
Measurements depth: 1960 mm
Measurements height: 2400 mm
Machine weight: 2200 kg

Main drive

Tool taper: ISO 40

Movement

X-AXIS Movement: 1300 mm
X-AXIS Rapid traverse: 1290 mm/min
Y-AXIS Movement: 300 mm
Y-AXIS Rapid traverse: 1208 mm/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 513 mm/min

Table

Outer length: 1600 mm
Outer width: 360 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle speed vertical: (8) 90 - 2000 rpm, motor power vertical: 2. 2 kw
- - Spindle speed horizontal: (12) 40 - 1300 rpm, motor power horizontal: 2. 2 kw
- - Spindle stroke: 120 mm
- - Spindle feed: 0. 08 / 0. 15 / 0. 25 mm/rev.
- - Distance spindle to column: 150 - 770 mm
- - Table util table: -45° to +45°
- - Spindle head tilting range: -90° to +90°
- - Distance spindle / table: 120 - 520 mm
- - Feed range longitudinal: (8) 22 - 420 mm/min, feed range cross: (8) 22 - 393 mm/min, feed range vertical: (8) 6 -112 mm/min
- - T-slot size: 14 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
