Battenfeld SmartPower 240-1000 Injection moulding machine

Show in original language

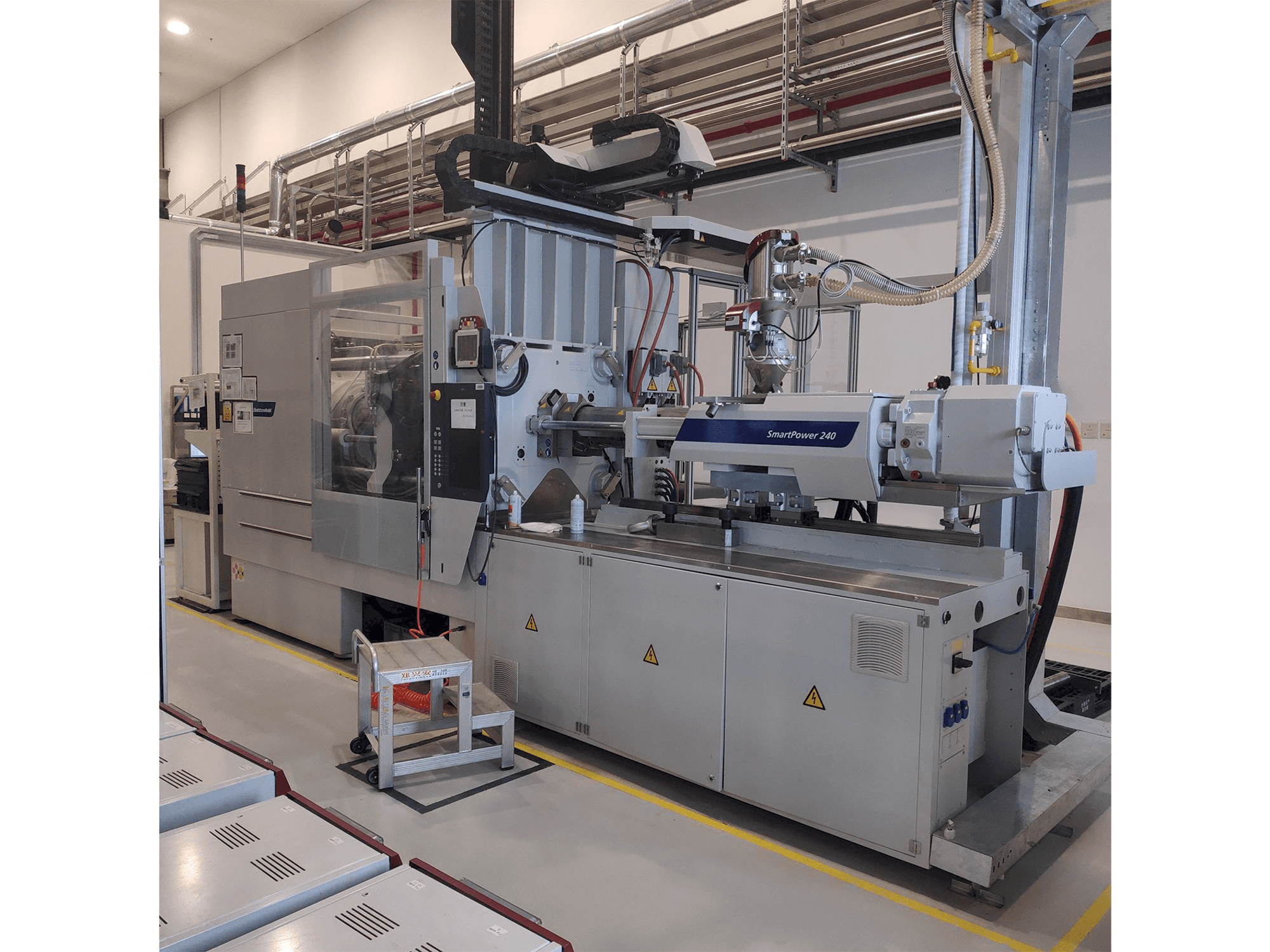

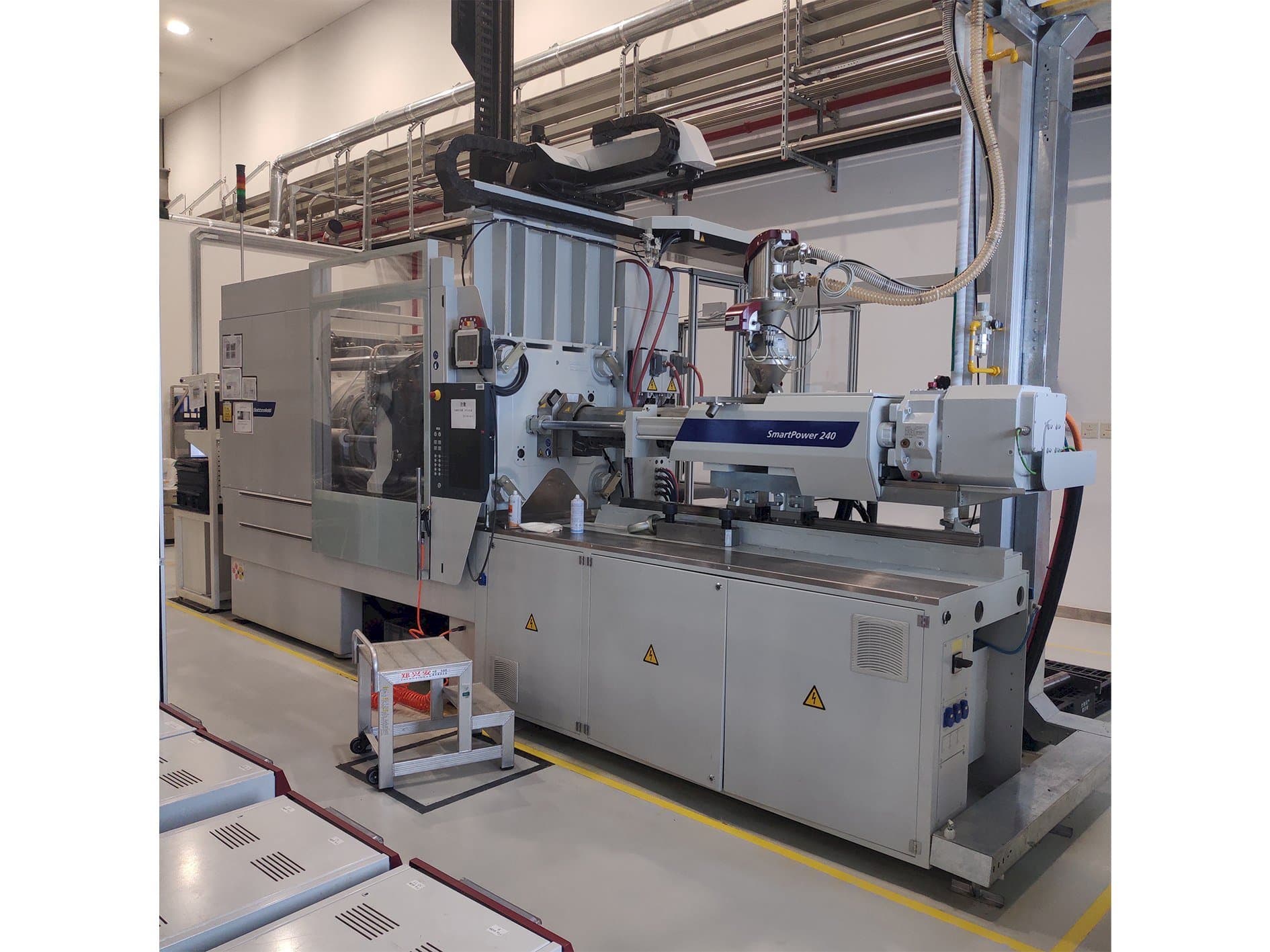

This Battenfeld SmartPower 240-1000 Injection moulding machine was manufactured in Austria in 2017. It shows 5222 production hours. It is equipped with an Unilog B8 control unit. The machine works with a clamping force 2400 kN, an injection pressure 2016 bar and screw diameter of 50 mm. It in perfect condition.

Overview

brand: Battenfeld
year: 2017
MODEL: SmartPower 240-1000
production hours: 5222
application type: Injection Moulding
Location: China
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Battenfeld SmartPower 240-1000

General Data

Measurements width: 5600 mm
Measurements depth: 1800 mm
Measurements height: 2300 mm
Machine weight: 11500 KG

Control Unit

Model: B8

Injection Unit

Screw diameter: 50 mm
Stroke volume: 491 cm³
Injection pressure: 2016 bar
Plasticizing rate max.: 53 g/s PS
Screw speed: 350 1/min
Heating capacity: 21.9 kW
Adjustable heating zones: 5

Clamping unit

Clamping force: 2400 kN
Opening stroke: 750 mm
Max open daylight: 1100 mm
Distance between bars: 670 x 620 mm
Mould height min: 350 mm
Ejector stroke: 200 mm
Ejector force for / back: 65 kN

Media

Main electronic connection: 400V / 50Hz

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Little working hours
- - In perfect condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
