Avia E-turn Lathe

Show in original language

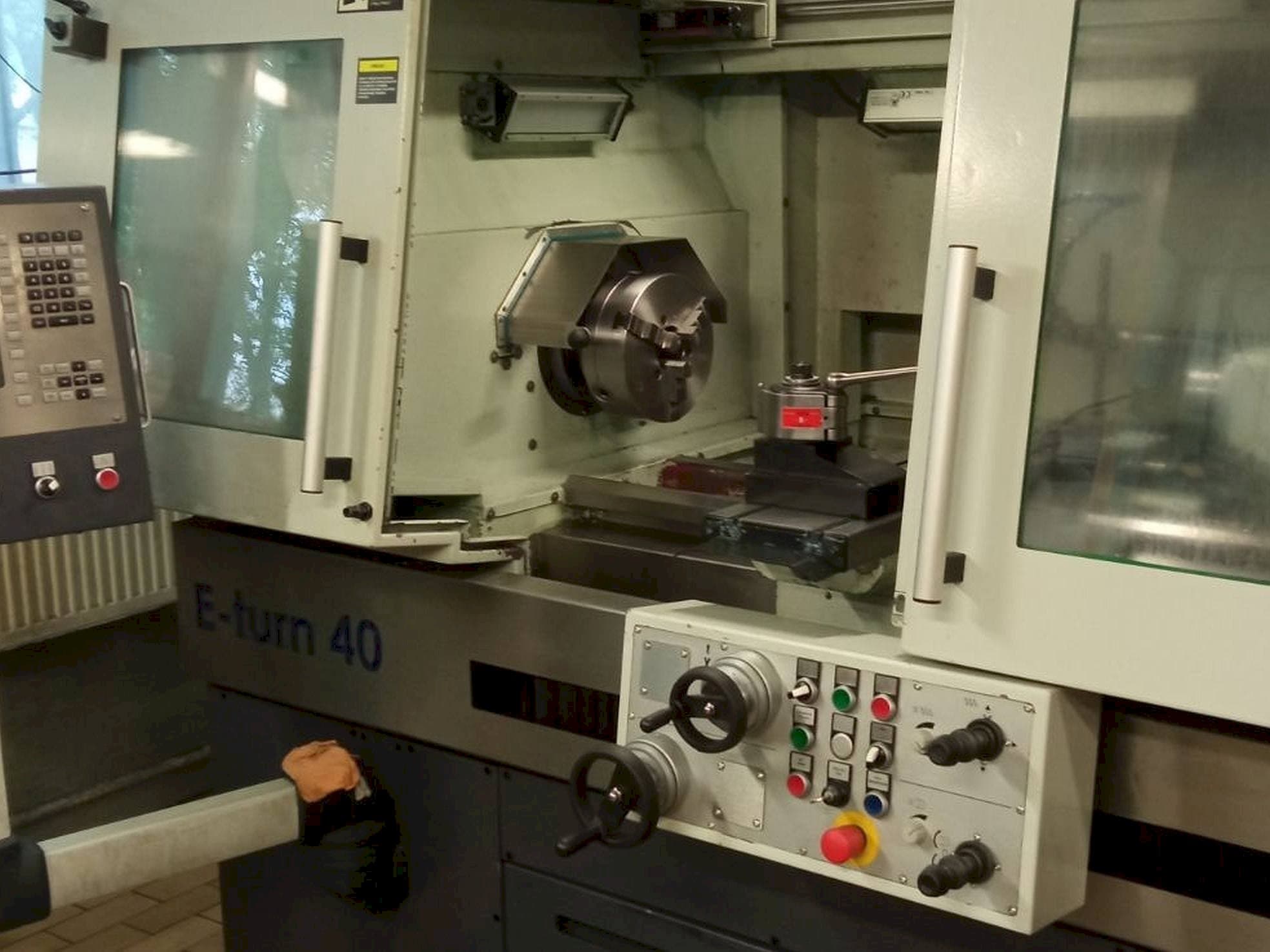

This Avia E-turn Lathe 40 was made in the year 2018. It is equipped with a Heidenhain TNC 620 Pilot control unit and has 2 axis. The machine has a spindle speed of 3500 rpm.

Overview

brand: Avia
year: 2018
MODEL: E-turn 40
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Avia E-turn 40

General Data

Machine weight: 2200 kg

Control Unit

Model: TNC 620 Pilot
Brand: HEIDENHAIN

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 17 kw
Number of axis: 2

Movement

X-AXIS Movement: 235 mm
Z-AXIS Movement: 1000/1510 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 440 mm
- - Swing over cross carriage: 230 mm
- - Distance between centres: 1000/1500 mm
- - Max. Turning diameter over bed: 400 mm
- - Width of bed 330 mm
- - Spindle bore 66 mm
- - Spindle torque 272 nm
- - Tailstock taper 4 mk
- - Tailstock quill diameter 65 mm
- - Tailstock quill travel 120 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
