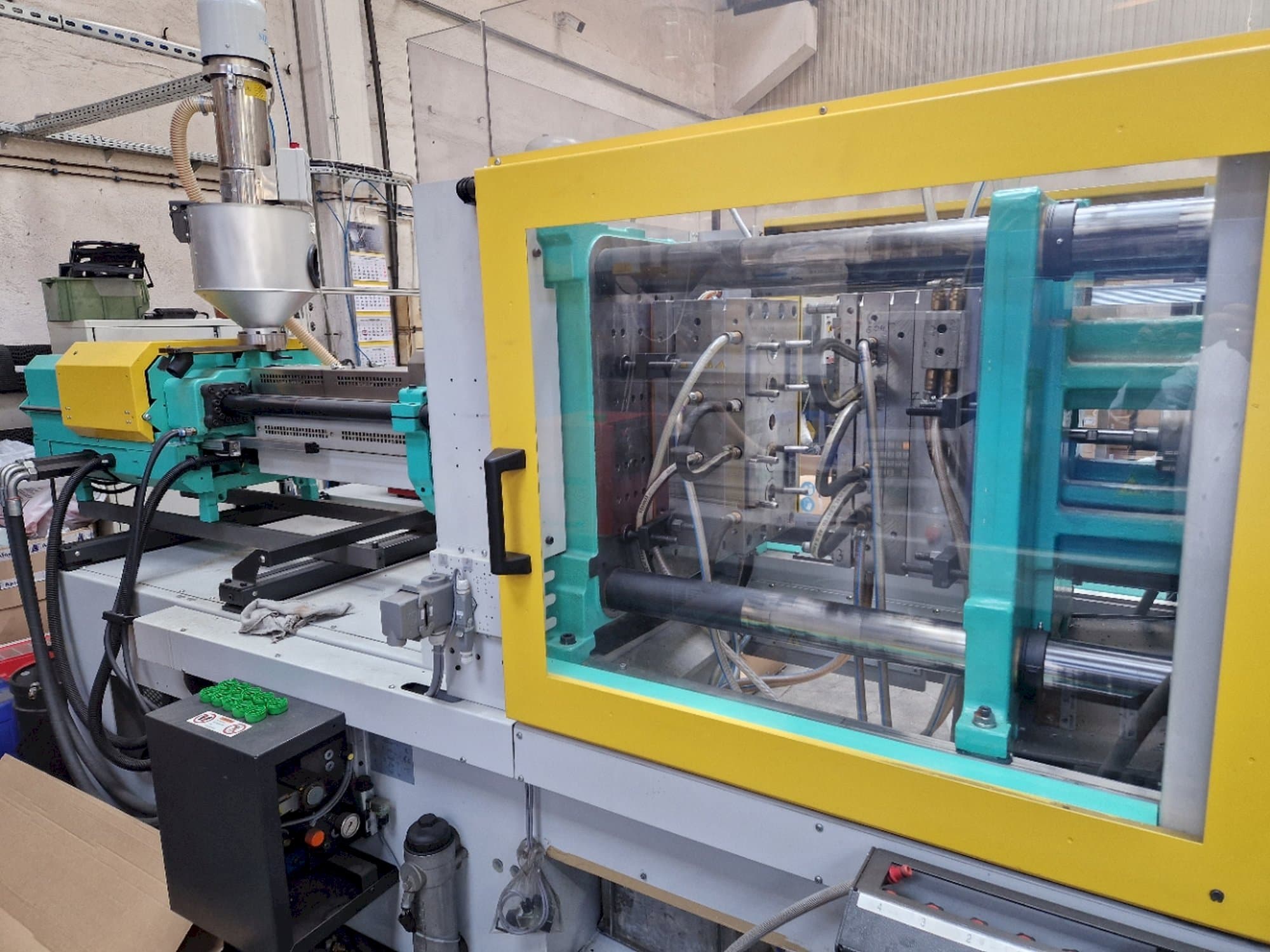

ARBURG ALLROUNDER 570 C 2000-800 GOLDEN EDITION Injection moulding machine

Show in original language

This ARBURG ALLROUNDER 570 C 2000-800 GOLDEN EDITION Injection moulding machine was manufactured in the year 2018 in Germany and has 4077 production hours. It is equipped with an ARBURG control unit. The machine has a clamping force of 2000 kN.

Overview

brand: Arburg
year: 2018
MODEL: ALLROUNDER 570 C 2000-800 GOLDEN EDITION
production hours: 4077
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg ALLROUNDER 570 C 2000-800 GOLDEN EDITION

General Data

Measurements width: 5530 mm
Measurements depth: 1795 mm
Measurements height: 2210 mm
Machine weight: 7450 kg

Control Unit

Brand: ARBURG

Injection Unit

Screw diameter: 50 mm
Stroke volume: 200 mm CM³

Clamping unit

Clamping force: 2000 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection capacity volume: 392 cm3
- - Injection capacity weight: 359 g
- - Screw circumferential speed: max 60 m/min
- - Max opening stroke: 650 mm
- - Mold height: 300 mm
- - Distance between bars: 570 x 570 mm
- - Platen daylight fixed: 950 mm
- - Platen size: 570 mm with central hole 125 mm
Qualitative Machine Benefits:
- - So-pole connection according to euromap 67, for controlling the operation of the manipulator
- - Authorization of service with the use of cards chip cards according to euromap 65
- - Connection for controlling the operation of the dye dispensing device (signal on - off)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
