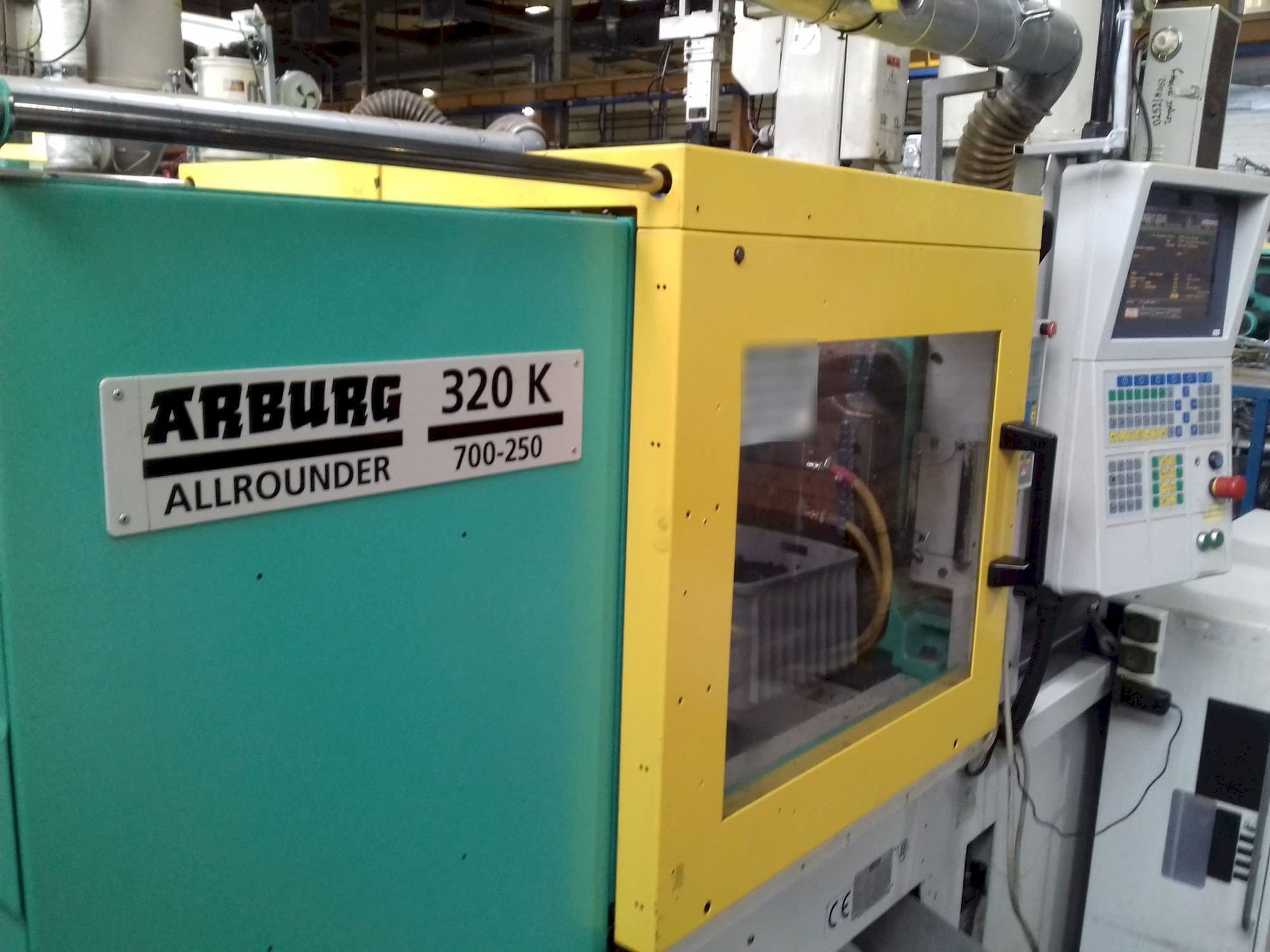

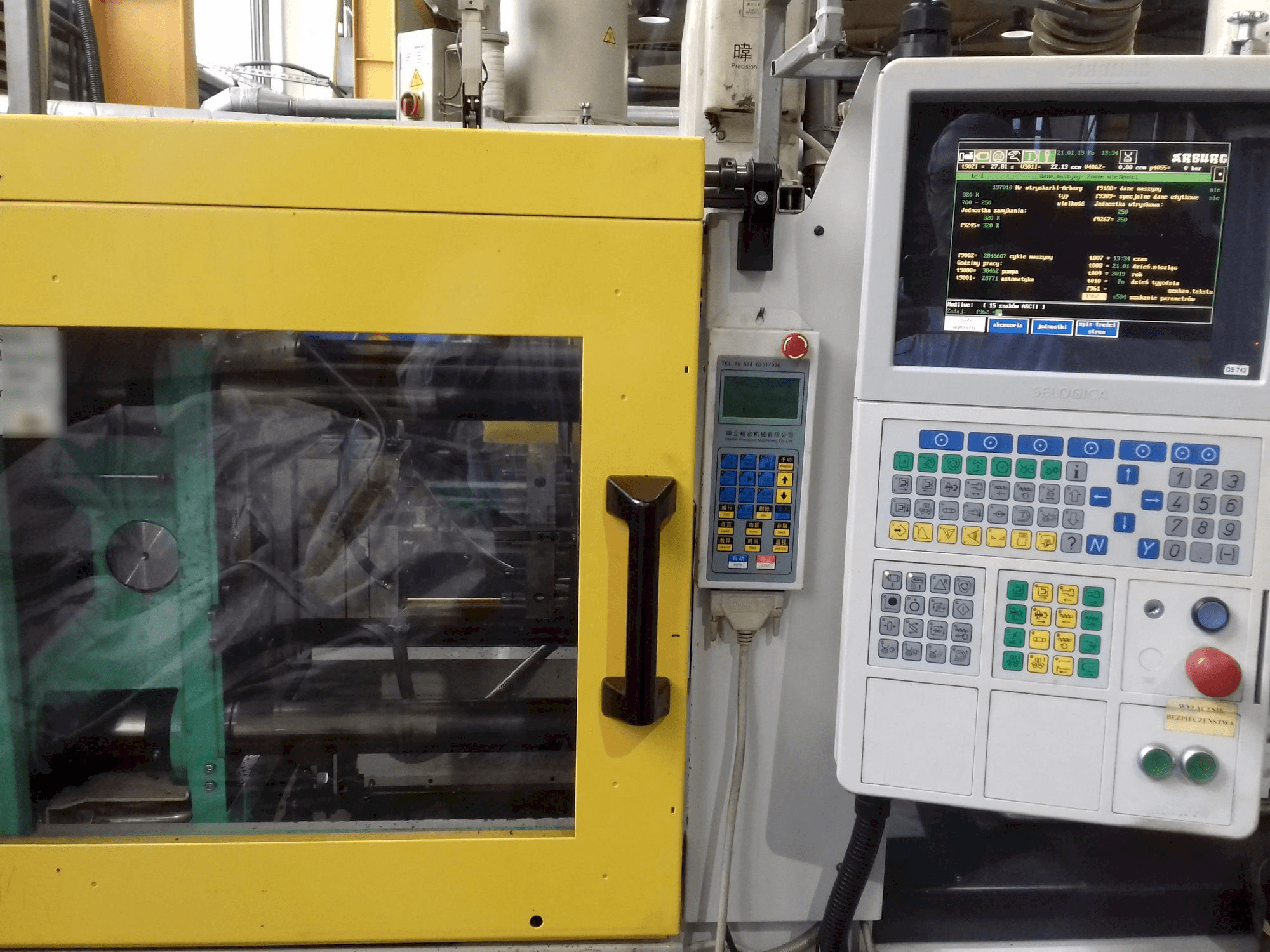

Arburg ALLROUNDER 320 K 700-250 injection moulding machine

Show in original language

This Arburg ALLROUNDER 320 K 700-250 injection moulding machine was built in the year 2005 in Germany. It has only 3960 production hours. It can operate with a clamping force 700 kN, and a screw diameter 35 mm. The machine is in very good condition, still at the production, and it is ready for tests.

Overview

brand: Arburg
year: 2005
MODEL: ALLROUNDER 320 K 700-250
production hours: 3960
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg ALLROUNDER 320 K 700-250

General Data

Measurements width: 3320 mm
Measurements depth: 1210 mm
Measurements height: 1810 mm
Machine weight: 2350 kg

Control Unit

Brand: ARBURG
Model: SELOGICA

Injection Unit

Screw diameter: 35 mm
Shot weight: 132 g
Stroke volume: 132 CM³
Injection pressure: 1820 bar

Clamping unit

Clamping force: 700 kN
Distance between bars: 320 x 320 mm
Size of mold platens: 446 mm x 446 mm

Media

Main electronic connection: 3 X 400V / 50HZ

Additional Equipment

- Proportional valve on the injection system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pump motor: 15 kw
- - Heaters: 6,1 kw
Qualitative Machine Benefits:
- - The machine is in very good condition and still at the production.
- - It is ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
