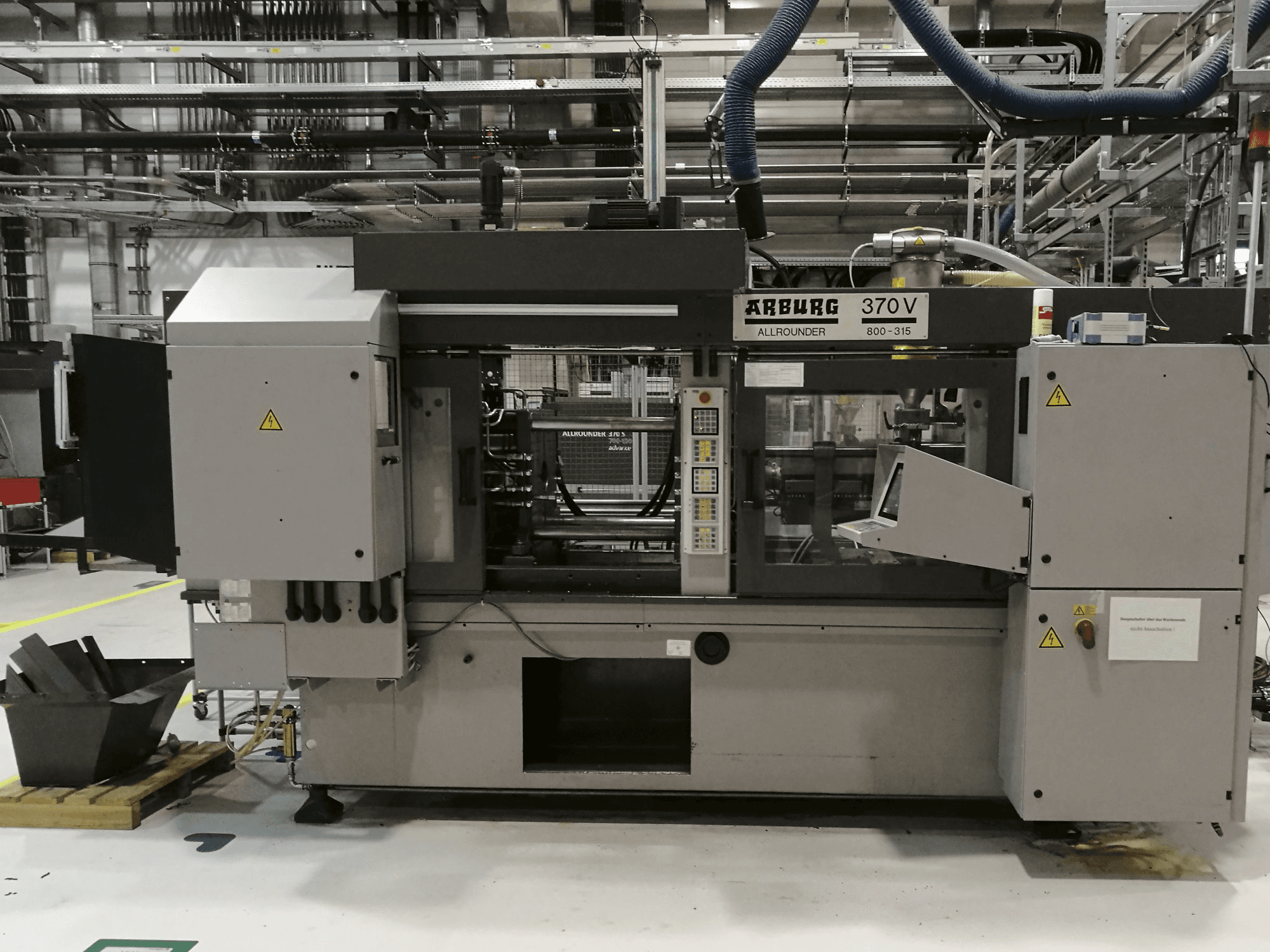

Arburg 370V 800-315 Injection Moulding Machine

Show in original language

This Arburg 370V 800-315 Injection Moulding Machine was manufactured in 1994 in Germany and has a record of 92579 production hours. Operated through an Arburg control unit, the model incorporates a hydraulic drive. The machine stands in excellent conditions due to frequent inspections.

Overview

brand: Arburg
year: 1994
MODEL: 370V 800-315
production hours: 92579
application type: Injection Moulding
Location: Germany
machine type: Vertical Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 370V 800-315

General Data

Measurements width: 4510 mm
Measurements depth: 2225 mm
Measurements height: 2070 mm
Machine weight: 3900 kg
Automatic cycles: 9505334
Type of drive: Hydraulic
Closure: Hydraulic

Control Unit

Brand: ARBURG

Injection Unit

Heating capacity: 10.6 kW
Adjustable heating zones: 5
Nozzle pressure: 50 kN

Clamping unit

Clamping force: 800 kN
Opening stroke: 500 mm
Max open daylight: 750 mm
Distance between bars: 370 mm
Size of mold platens: 545 mm
Ejector stroke: 175 mm
Ejector force for / back: 40 kN

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 27.1 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
