- Arburg 320C 600-100 Injection Moulding Machine

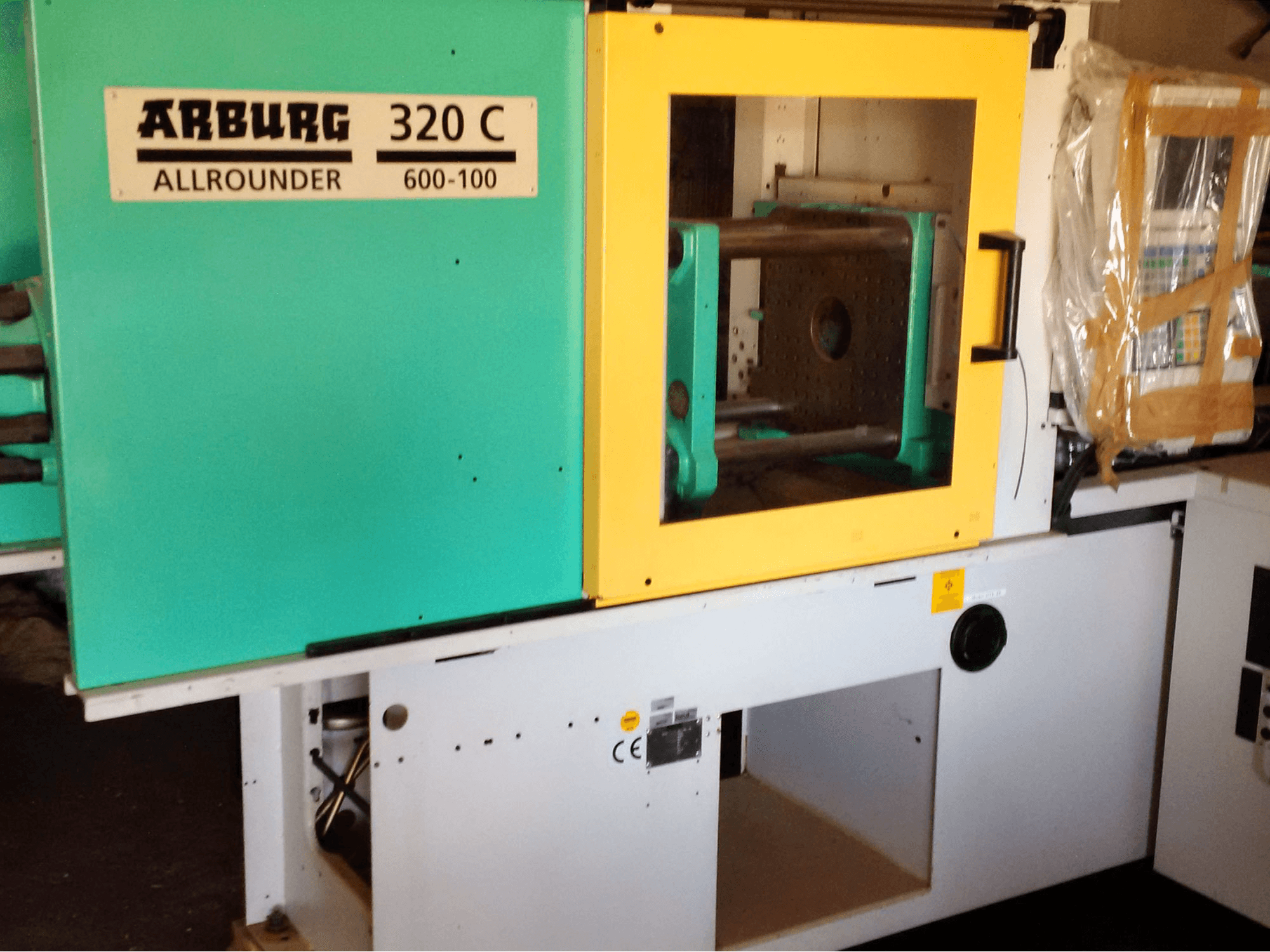

This Arburg 320C 600-100 Injection Moulding Machine from 2001 was manufactured in Germany and is operated through a Control unit of the same brand. This model offers a clamping force of 600 kN and comes with both a Pioven cooling and tempering unit.
Overview
- brand: Arburg
- year: 2001
- MODEL: 320C 600-100
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: Arburg
Technical Information - Arburg 320C 600-100
General Data
- Measurements width: 3600 mm
- Measurements depth: 1600 mm
- Measurements height: 2200 mm
- Machine weight: 2080 kg
Control Unit
- Brand: Arburg
Injection Unit
- Screw diameter: 25 mm
- Stroke volume: 49 cm³
- Injection pressure: 2240 bar
Clamping unit
- Clamping force: 600 kN
- Opening stroke: 350 mm
- Distance between bars: 270 x 270 mm
- Size of mold platens: 446 x 446 mm
- Ejector stroke: 125 mm
- Ejector force for / back: 30 kN
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 44 kW
Additional Equipment
- - Piovan cooling unit (new)
- - Piovan tempering unit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
