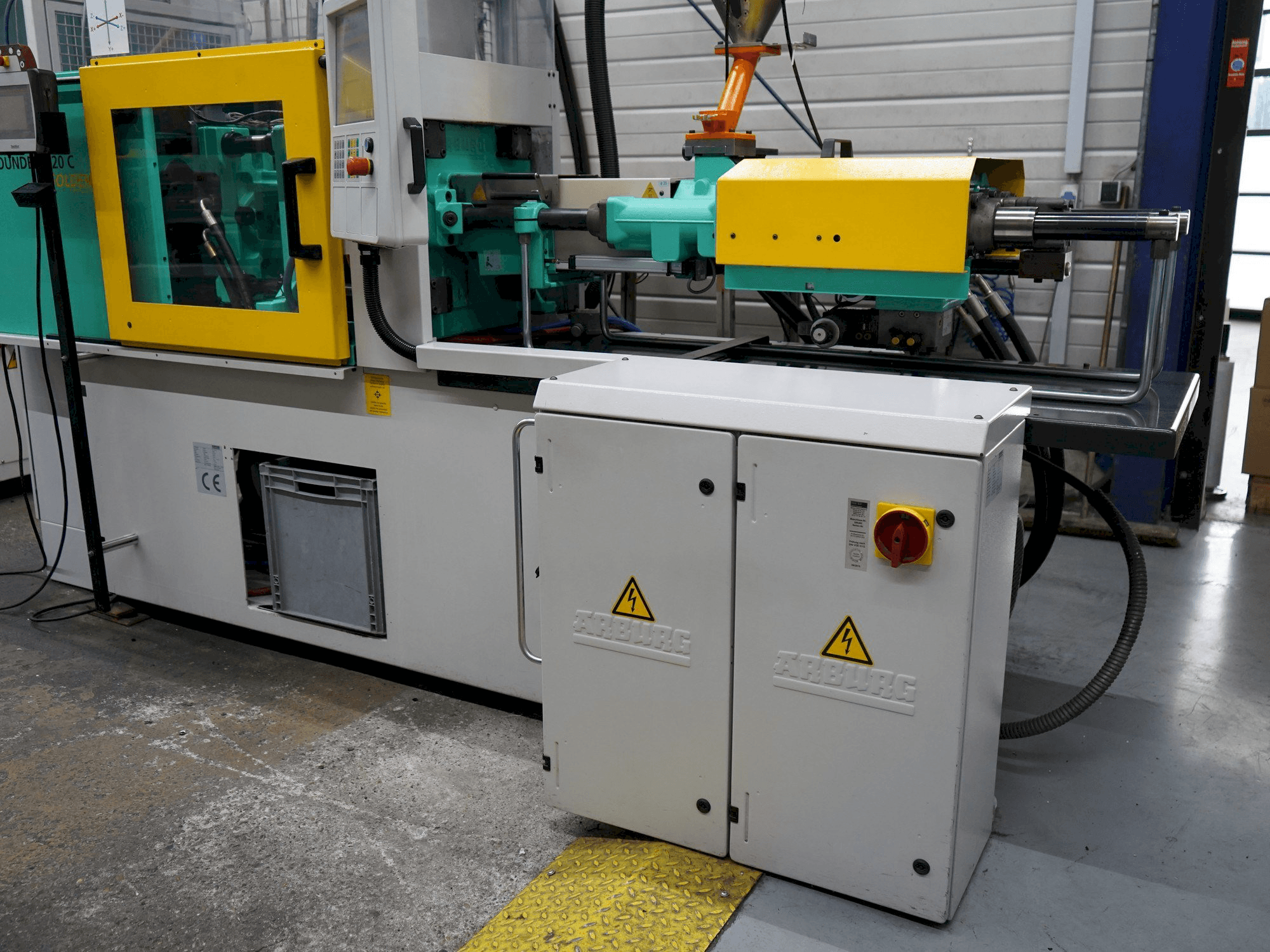

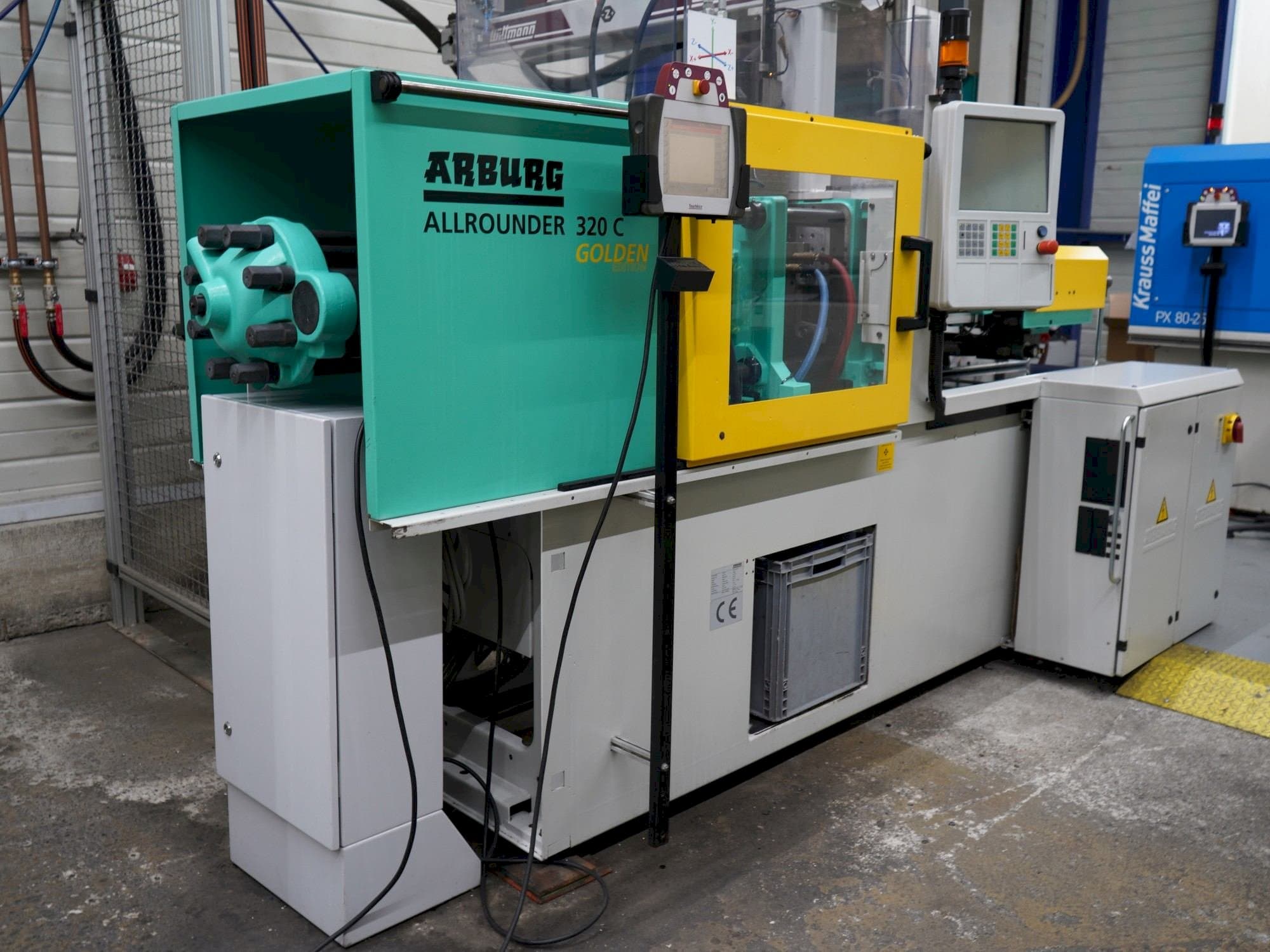

Arburg 320C (500-170) Injection moulding machine

Show in original language

This Arburg 320C (500-170) Injection moulding machine was made in 2007 and has 83200 production hours. It is equipped with an Arburg Selogica control unit. The machine has a clamping force of 500 kN.

Overview

brand: Arburg
year: 2007
MODEL: 320C (500-170)
production hours: 83200
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 320C (500-170)

General Data

Measurements width: 3500 mm
Measurements depth: 1500 mm
Measurements height: 2000 mm
Machine weight: 2480 mm KG

Control Unit

Model: Selogica
Brand: ARBURG

Injection Unit

Screw diameter: 35 mm
Shot weight: 105g PS

Clamping unit

Clamping force: 500 kN
Opening stroke: 350 mm
Distance between bars: 320 x 320mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Aggregate/injection unit: 170
- - Clamping plate dimensions: 446 x 446 mm
Qualitative Machine Benefits:
- - Condition: functional
- - Core pull: yes
- - Euromap: yes
- - Cylinder heaters are partly injected with plastic - this has no influence on the function of the machine
- - Window on non-operator side is damaged /
- - Machine sold without robot or handling device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
