ANAYAK ANAK-MATIC 7 Vertical Machining center

Show in original language

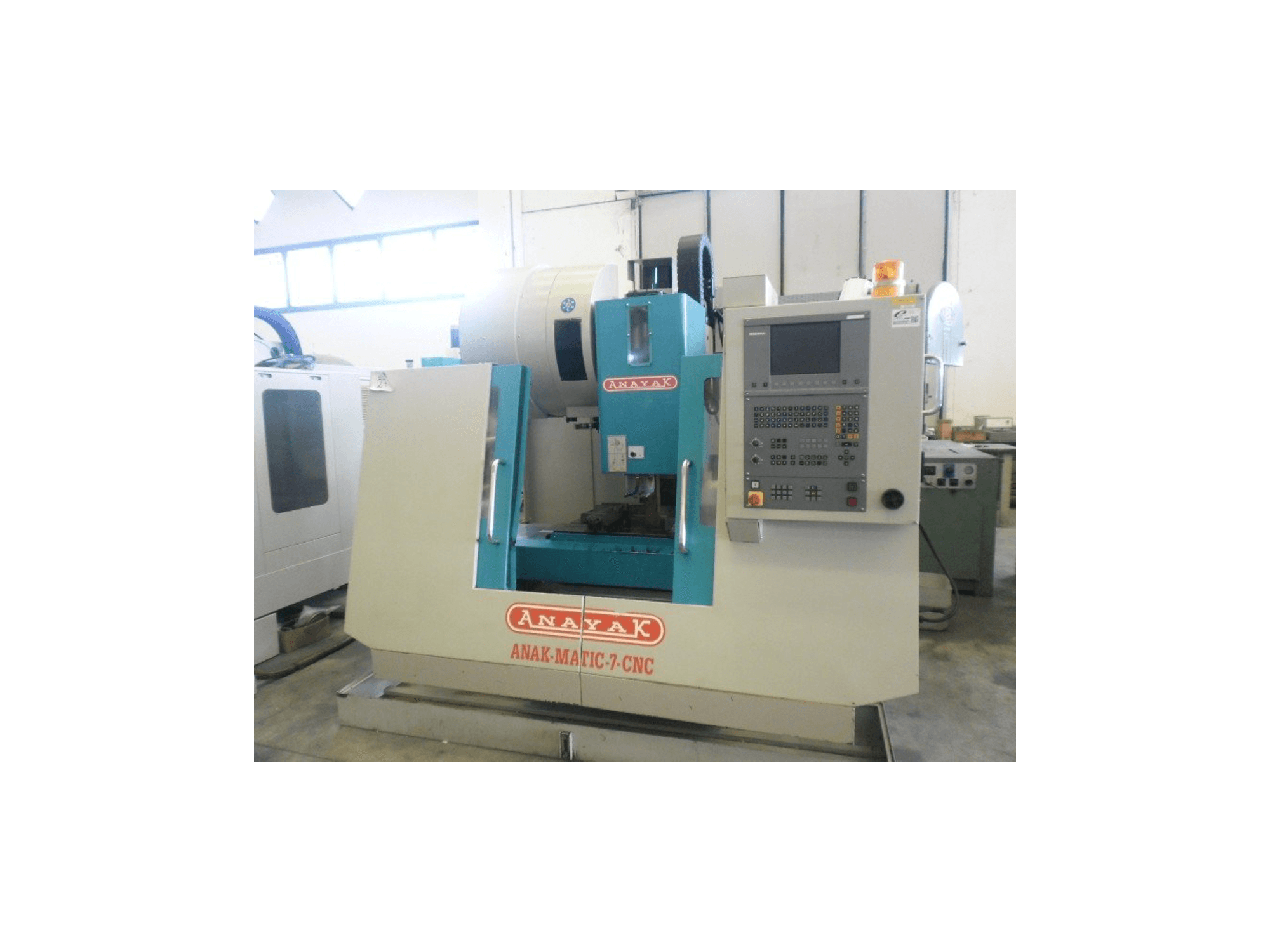

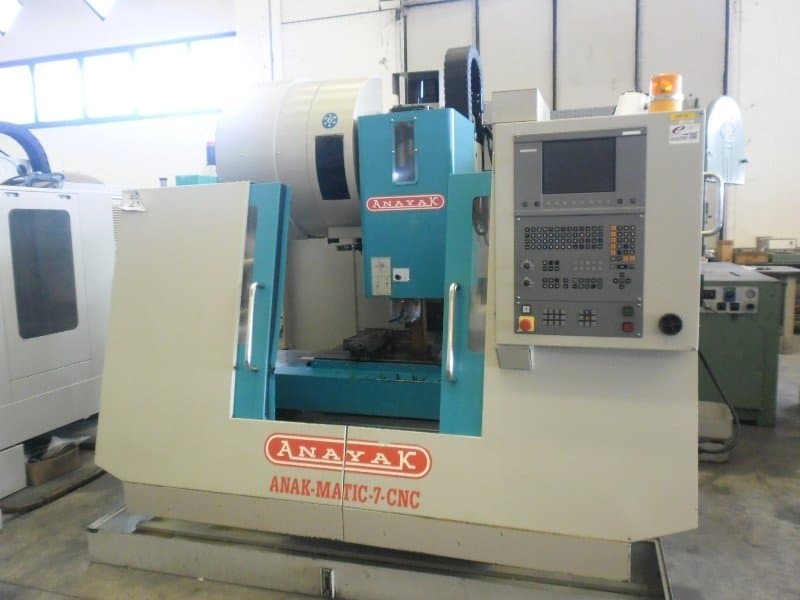

This ANAYAK ANAK-MATIC 7 Vertical Machining center was manufactured in the year 2002 in Spain. It is equipped with a HEIDENHAIN control unit and has 3 axis. The machine has a spindle speed of 6000 rpm.

Overview

brand: ANAYAK
year: 2002
MODEL: ANAK-MATIC 7
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - ANAYAK ANAK-MATIC 7

General Data

Machine weight: 5000 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 505 mm

Table

Outer length: 950mm
Outer width: 425 mm

Media

Main electronic connection: 440V / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - No. Of tool capacity 24
- - N ° pallet 1
- - Chip conveyor included
- - Spindle taper 40 iso

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
