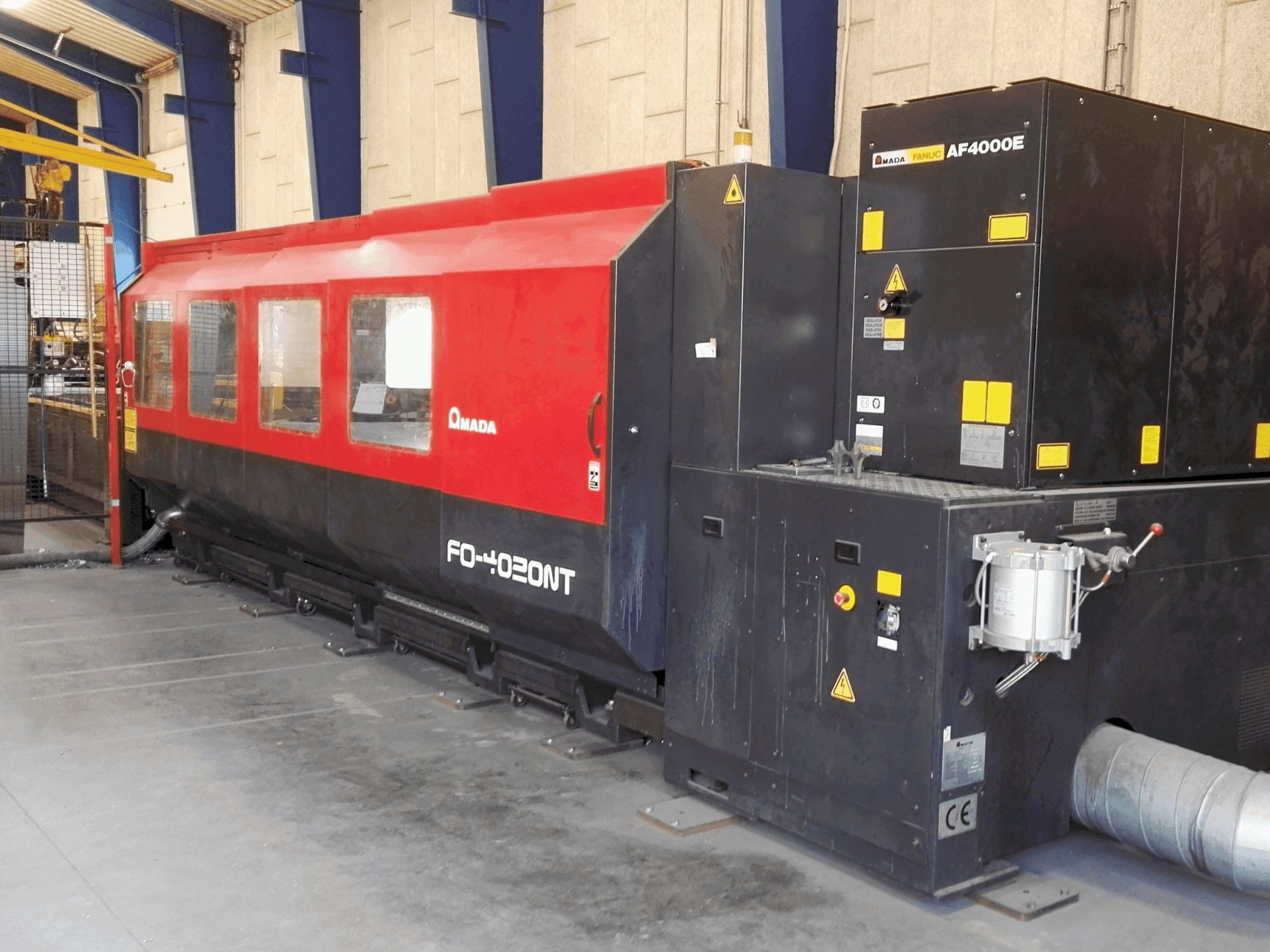

AMADA - F0-4020NTDE-LAS-AMA-2005-00001

Additional Equipment

• - 5 inch and 7.5 inch lens holders included (5 inch lens is in the machine and the 7.5 inch is stored)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Axis travel: x 4420mm, y 2050mm, z 200mm
  • - Cutting feed rate: x 0 to 20m/min, y 0 to 20m/min
  • - Max. Rapid feed: x 80m/min, y 80m/min, z 60m/min
  • - Max. Worksheet weight (stand alone machine and with lst): both 1570 kg
  • - Table height: 940mm
  • - Weight with oscillator (stand alone machine): 12t
  • - Weight with oscillator (stand alone machine + prfo): 13,7t
  • - No. Of bend mirrors including collimator: 5
  • - Adaptive optics (optional): 1, power supply: 13 kva
• Qualitative Machine Benefits:
  • - All maintenance has been carried out annually and the machine is technically in perfect condition.

Extra information

• - It is no longer under power, but all maintenance has been carried out annually and the machine is technically in perfect condition. Recently it has been professionally dismantled and is ready for dispatch. All accessories are available as they were when the machine was delivered. 5 inch and 7.5 inch lens holders. A lens is also installed in each one. However, there are no pictures of this, the 5 inch lens is in the machine and the 7.5 inch is stored in a box with the documentation. Complete documentation in paper, parts list and circuit diagram also digital. With a Fanuc resonator, the complete resonator does not have to be replaced, only the turboblower, which has to be replaced every 24,000 hours and the one installed still has a remaining service life of just under 13,000 hours.
