ACCUWAY UM - 350V5 Vertical Machining Center

Show in original language

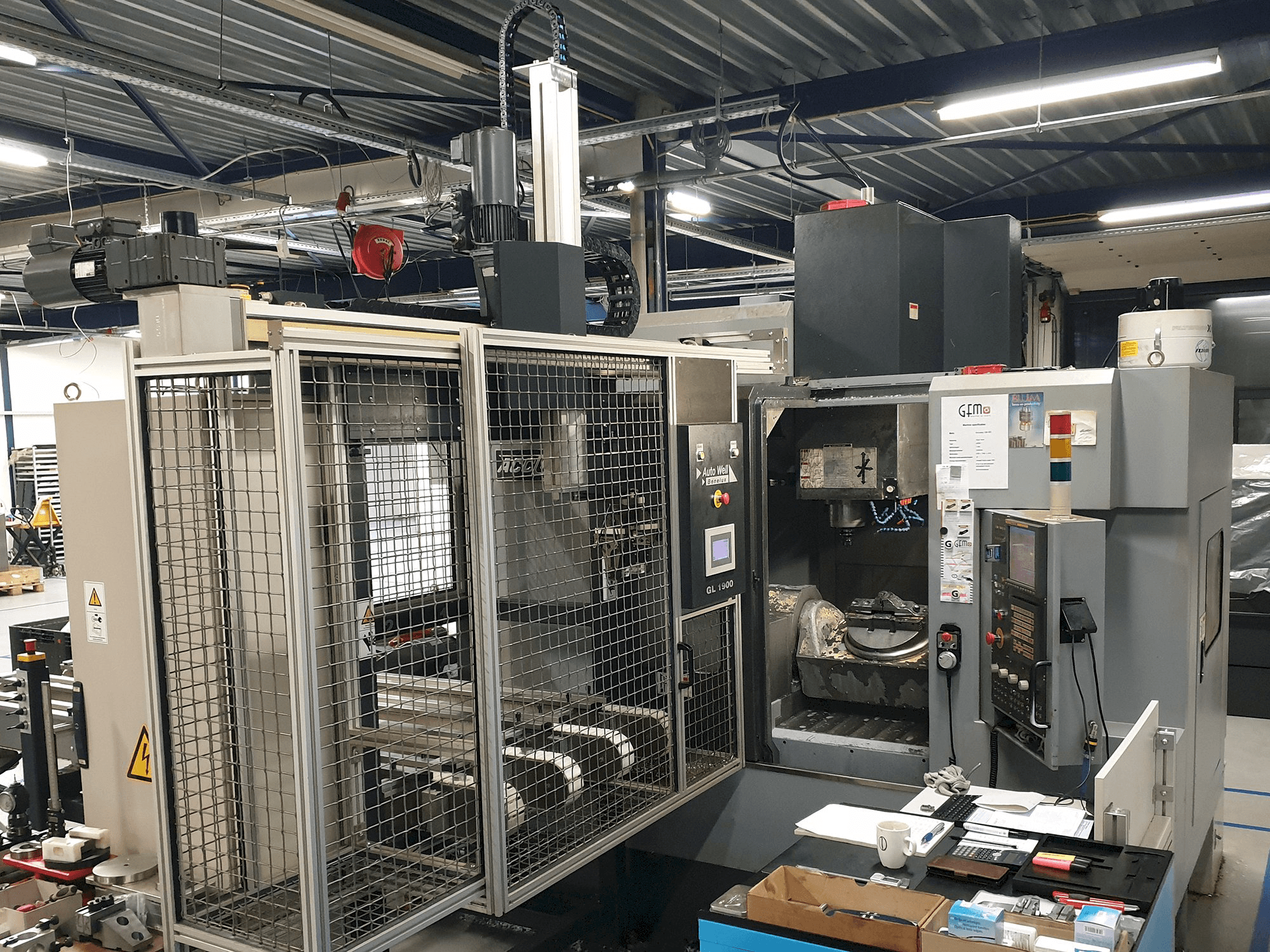

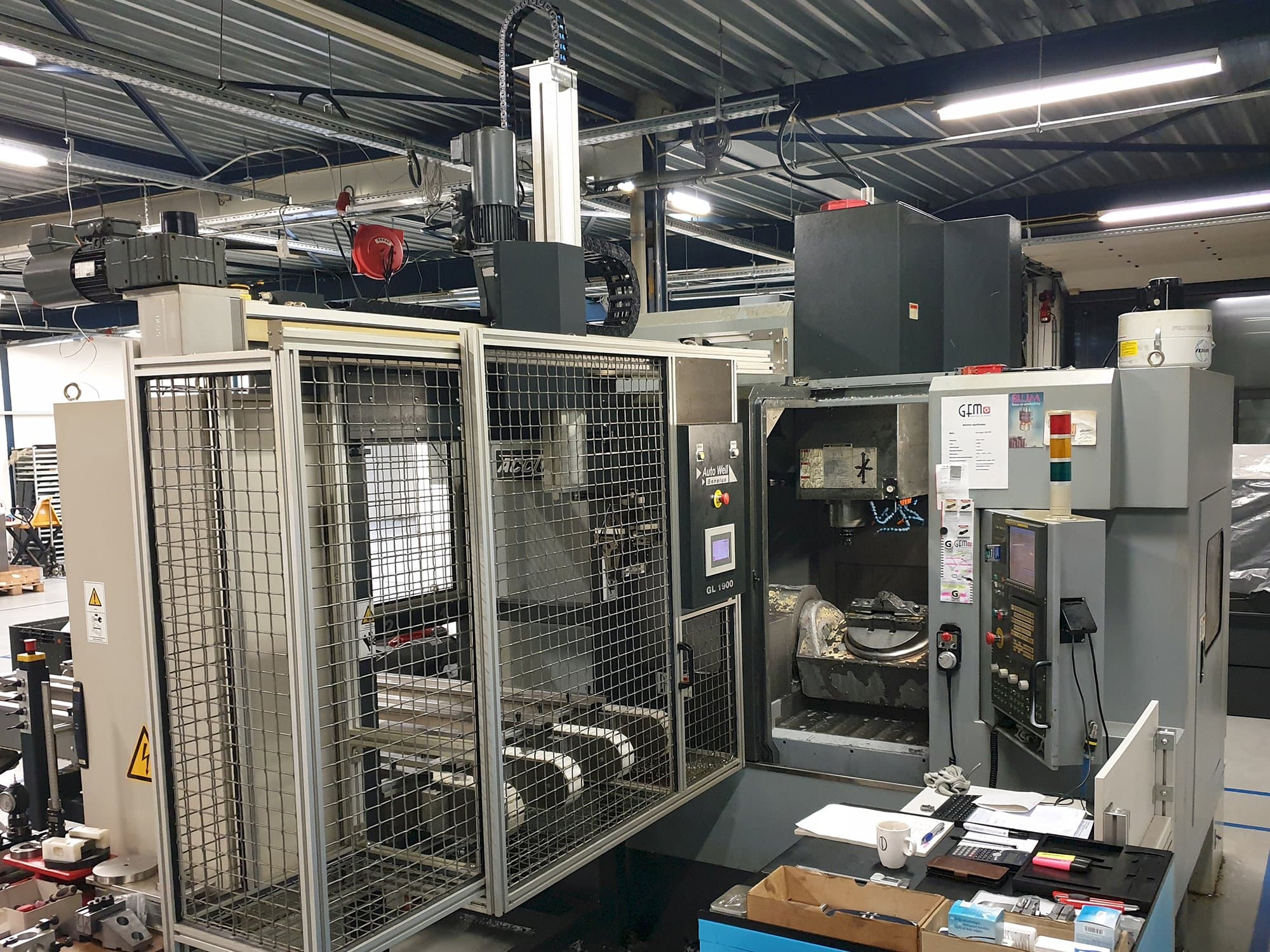

This ACCUWAY UM - 350V5 Vertical Machining Center was manufactured in 2009 in Taiwan and has a production time of 35000 hours. Operated through a FANUC Series 18i-M Control unit, this 5 axis machine counts with 32 tool slots. It incorporates a rotary table with a dimension of 350mm. Its meehanite cast structure keeps long-term accuracy, and is capable of performing with a maximum workpiece diameter of 450 mm. A robot and several tools are included within the machine.

Overview

brand: ACCUWAY
year: 2009
MODEL: UM - 350V5
production hours: 35000
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Fanuc

Technical Information - ACCUWAY UM - 350V5

General Data

Measurements width: 2700 mm
Measurements depth: 2200 mm
Measurements height: 3200 mm
Machine weight: 9500 kg

Control Unit

Brand: Fanuc
Model: Series 18i-M

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 470 mm

Workpiece

Workpiece x: 42 mm
Workpiece y: 42 mm
Workpiece z: 30 mm
Workpiece weight: 200 kg

Table

Outer length: 350 mm

Media

Main electronic connection: 380 V
Power consumption: 30 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: Aluminium
Material thickness: 20 mm
End product: Moulds

Machine Benefits

Technical Machine Benefits:
- - Meehanite cast structure keeps long-term accuracy
- - Rotary table and integral 5 axes motion saddle
- - Max. Workpiece of 450 mm of diameter
Qualitative Machine Benefits:
- - Always working without any downtime
- - Yearly inspected
- - Perfect conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
