XYZprinting - Mini Mill 560IE-MIL-XYZ-2006-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

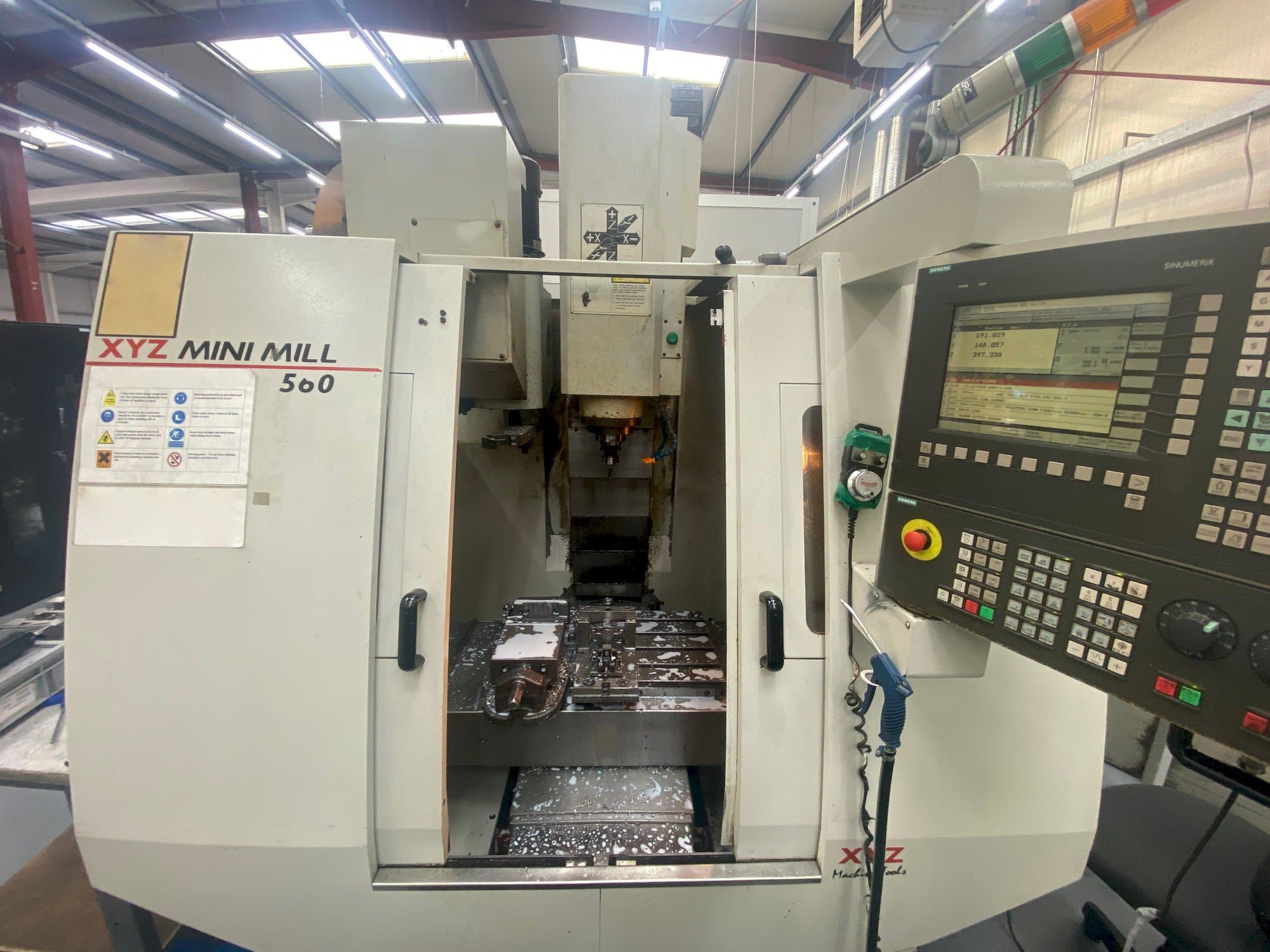

- XYZ Mini Mill 560 Vertical machining center
This XYZ Mini Mill 560 Vertical machining center was manufactured in Taiwan in 2006. It is equipped with a Siemens Sinumerik 810D Powerline control unit. This 3 axis machine works with a spindle speed up to 8000 rpm. It has been producing medical device parts. Very well maintained machine. Very good condition.
Overview
- brand: XYZprinting
- year: 2006
- MODEL: Mini Mill 560
- application type: Milling
- Location: Ireland
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - XYZprinting Mini Mill 560
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 810D Powerline
Dimensions
- Machine Depth: 1900 mm
- Machine Height: 2500 mm
- Machine Weight: 2750 kg
- Table Length: 610 mm
- Table Width: 370 mm
Movement
- Number of Axes: 3
- X-axis Travel: 560 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 500 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 16
- Spindle Speed: 8000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Very well maintained machine
- Very good condition
Extra Information
Machine vice not included
Machine History
Industries
Medical device industry
End product
Medical device parts
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
