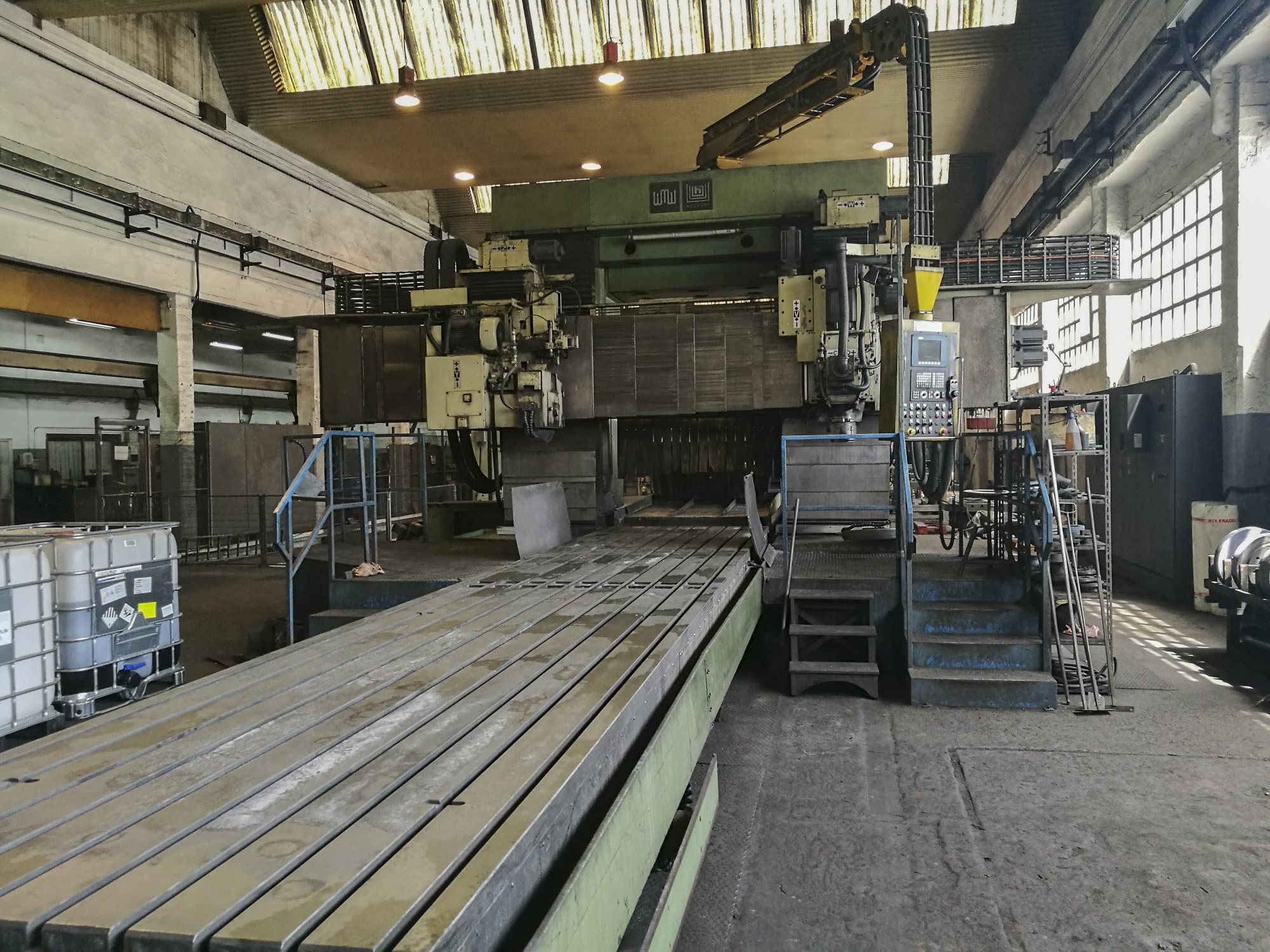

Left view 1 of WMW-Heckert SZ16-15-08/22.1-7.1 machine

WMW-Heckert - SZ16-15-08/22.1-7.1ES-GRI-WMW-1990-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This WMW-Heckert SZ16-15-08/22.1-7.1 is a Grinding Machine that has a production history of 25000 working hours. Although this machine was manufactured in 1990, it underwent a complete retrofitting in 2008, where it received a new filter system, a new universal wheel with automatic movements, several handles and cones for interior grinding, a new Fagor 8055 Control unit, a change of all spindles and servomotors in all drives, all telescopes replaced with bellows to prevent dust from entering the hydrostatic system that powers its working table. Furthermore, this machine has worked most of its time on grey cast iron and stands in a very good condition due to its maintenance.

Overview

  • brand: WMW-Heckert
  • year: 1990
  • MODEL: SZ16-15-08/22.1-7.1
  • production hours: 25000
  • application type: Grinding
  • Location: Spain
  • machine type: Grinding Machine
  • availability: Sold
  • control unit brand: FAGOR

Technical Information - WMW-Heckert SZ16-15-08/22.1-7.1

General Data

  • Measurements width: 21900 mm
  • Measurements depth: 7885 mm
  • Measurements height: 5210 mm
  • Machine weight: 78000 kg

Control Unit

  • Model: 8055
  • Brand: FAGOR

Main drive

  • Number of spindles: 2
  • Spindle speed range: 8000 1/min
  • Spindle motor power: 25 kW

Movement

  • X-AXIS Movement: 8000 mm
  • X-AXIS Rapid traverse: 2840 mm/min
  • Y-AXIS Movement: 1700 mm
  • Y-AXIS Rapid traverse: 2840 mm/min
  • Z-AXIS Movement: 1500 mm
  • Z-AXIS Rapid traverse: 560 mm/min

Workpiece

  • Workpiece weight: 15000 kg

Table

  • Outer length: 8000 mm
  • Outer width: 1600 mm

Tools

  • Max weight: 30000 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
