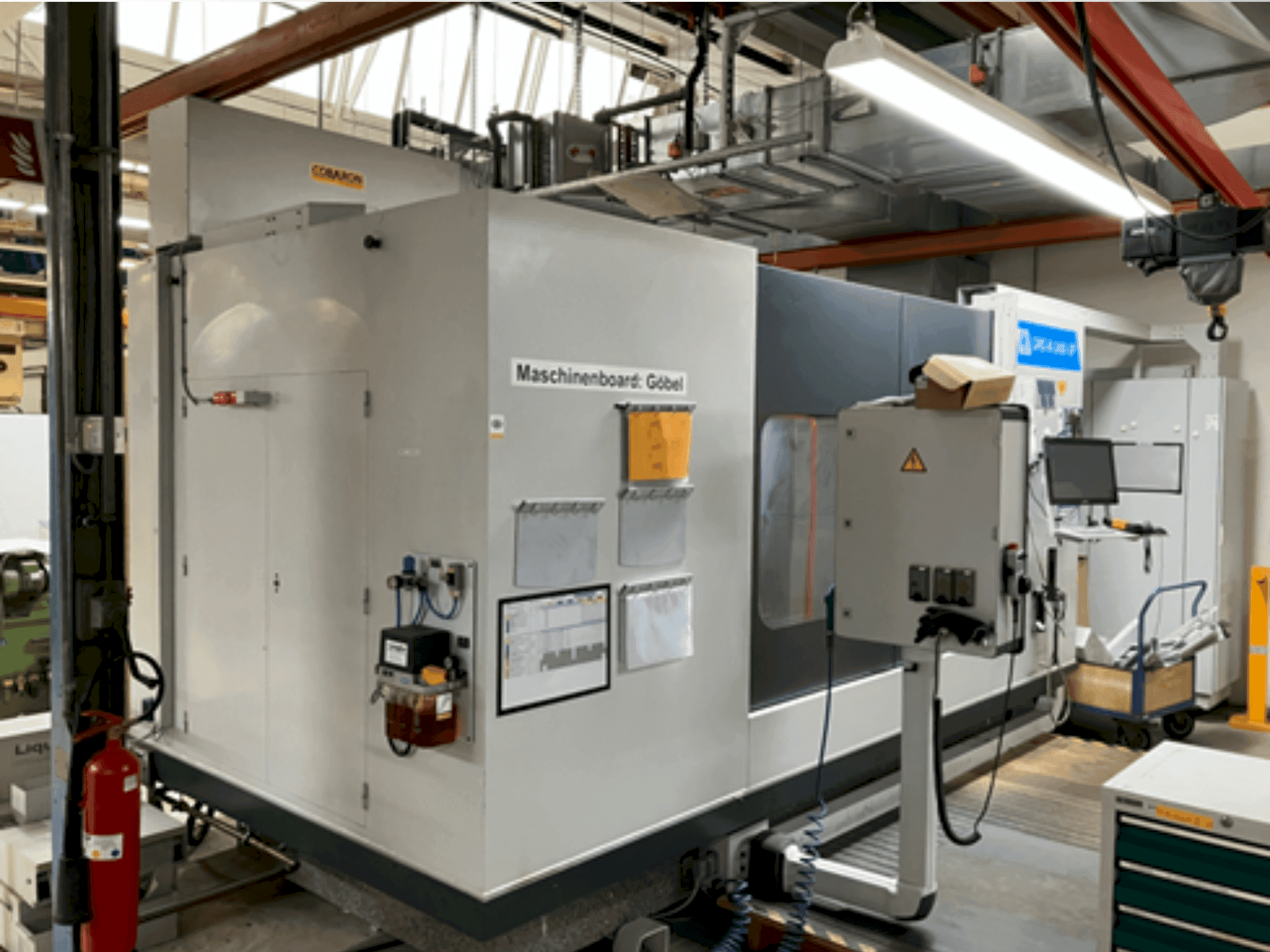

Willi Göbel - GRS-III-2400-SPDE-GRI-WIL-2018-00001

Additional Equipment

• - Compliance with German and European regulations, including: Directive 98/37/EC (Machinery Directive) / Low Voltage Directive 73/23/EEC / Equipment and Product Safety Act (GPSG) /Prevention Principles (BGV A1)
• - CE marking and written confirmation of compliance provided

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Tool spindle: diameter range: 170 - 220 mm / grinding wheel width: 3 - 5 mm (base body 20 mm) / bore diameter: 52 mm / maximum weight: 6 kg
  • - Small workpiece spindle: speed range: 200 - 23000 rpm/ power: ~30 kw/ maximum torque: 20 nm /diameter range: 10 - 400 mm /maximum width: 100 mm
  • - Large workpiece spindle: speed range: 0 - 6000 rpm/ power: ~41 kw /maximum torque: 800 nm (with a maximum workpiece weight of 250 kg)/ diameter range: 390 - 700 mm/ maximum width: 400 mm
  • - Test piece unit: speed range: 0 - 1000 rpm / maximum test piece diameter: 100 mm / maximum test piece width: 300 mm / maximum profile height: 35 mm
  • - Grinding strategies : classical pendulum cycle (two-sided feed) / one-sided feed (lifting at one end) / contour grinding with all three grinding wheels (user-selectable) / re-grinding cycle for flat surfaces with oscillating feed
  • - Optical system : optical system equipped with 33x magnification, resistant to coolant / three cameras installed on the grinding spindles
  • - Integrated balancing system capable of generating reports on unbalance before and after balancing / ae system (e. G. , mpm) on the grinding wheel side to monitor the grinding process
  • - Emergency stop button near the spindle stock / second safety door without a window
  • - Ethernet interface / usb interface / human-machine interface (hmi) with a touch panel or op15 for system status display, machine configuration, and manual data input
