Walter Helitronic Power

Show in original language

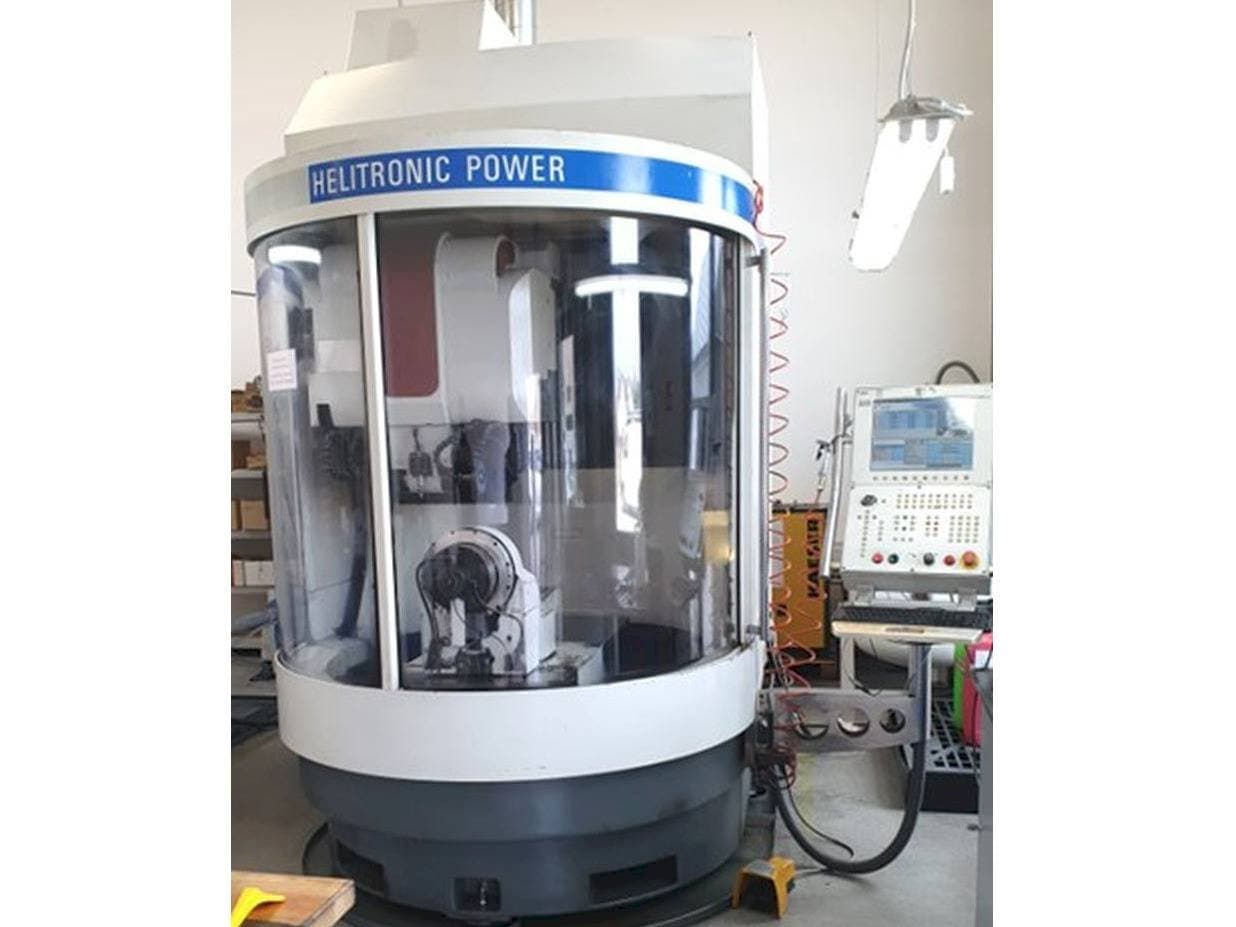

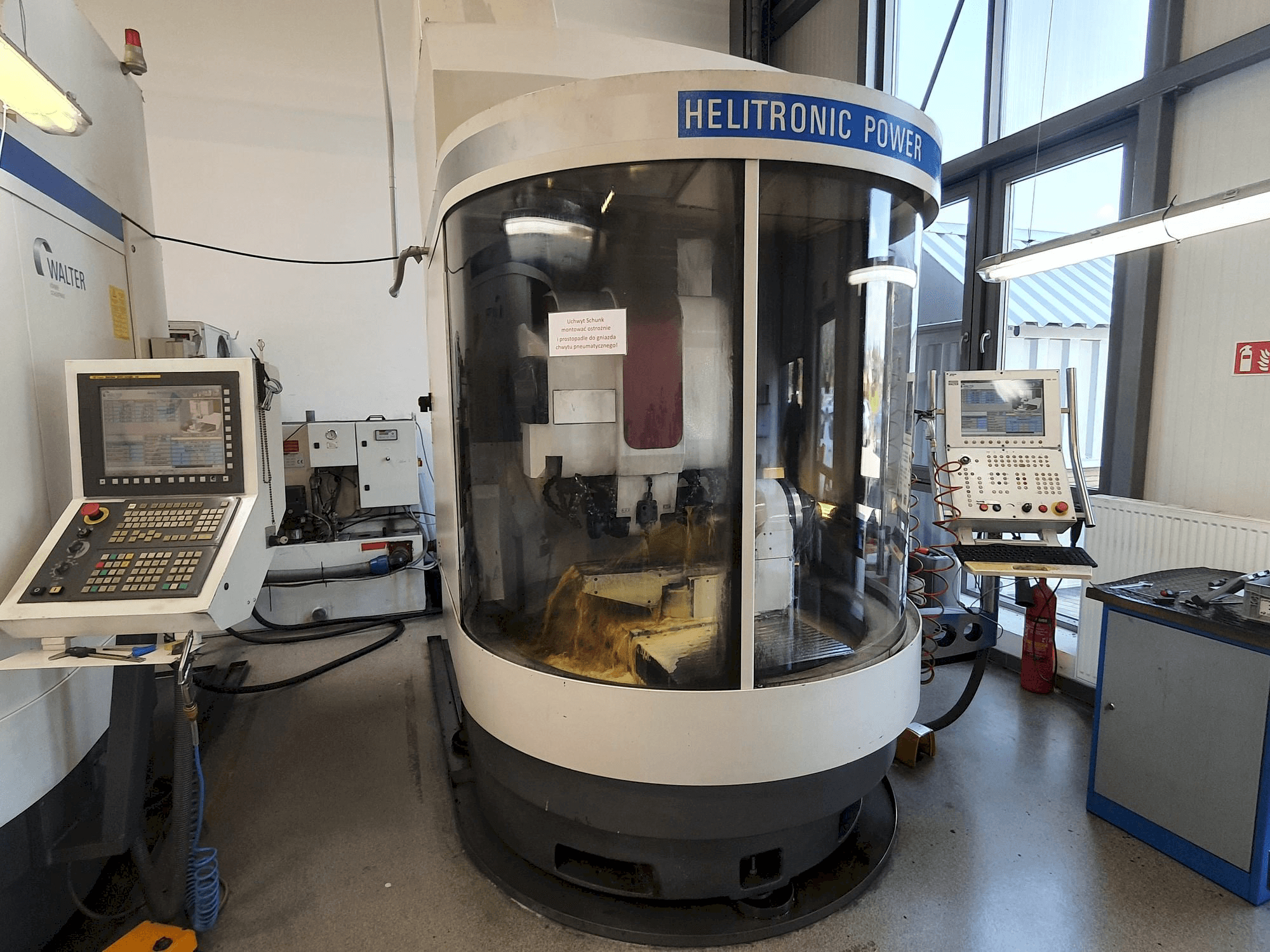

This Walter Helitronic Power Grinding Machine was manufactured in 2005 in Germany. It is operated through an ANDRON HMC600 control unit. This machine can work with a spindle speed range 1000-10000 rpm and a power production 18kW. It includes several software packages licenses. This machine is in very good working condition and ready for testing. The spindle was replaced for a new one in June 2019.

Overview

brand: WALTER
year: 2005
MODEL: Helitronic Power
application type: Grinding
Location: Poland
machine type: Grinding Machine
availability: Sold

Technical Information - WALTER Helitronic Power

General Data

Measurements width: 2427 mm
Measurements depth: 2930 mm
Measurements height: 2273 mm
Machine weight: 4600 kg

Control Unit

Model: HMC600

Main drive

Spindle speed range: 1000-10000 1/MIN
Spindle motor power: 18 kW

Movement

X-AXIS Movement: 460 mm
Y-AXIS Movement: 320 mm
Z-AXIS Movement: 660 mm

Tools

Max weight: 50 kg
Max tool diameter: 320 mm
Max tool length: 350 mm

Media

Main electronic connection: 400 v 50 hz
Power consumption: 35 kva

Additional Equipment

- Package 1 (cylindrical mills)
- Package 2 (tapered mills)
- Package 3 (drills); Package 4 (step drills)
- Package 16 (warmup program)
- Package 7 (914-LOAD); Package 17 (917-LOAD); Package 33 (918-LOAD); Package 37 (919-LOAD)
- 900-LOAD – HELICONE
- 901-LPIP - HELIFLUTE
- 902-LPIG – Package 100
- 903-LWP – SCHEIBE; 904-LHSK
- 908-LOAD

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Machine type: power production 18kw
- - Measurement system: metric
- - Feeder: no
- - Automatic clamping: yes
- - Spindle motor: adjustable (sercos)
- - Max dia. Grinding wheel: 200 mm
- - Rapid traverse: 15 m/min
- - Software packages licenses (included)
Qualitative Machine Benefits:
- - Machine in very good working conditions
- - Ready for test
- - The spindle was replaced for a new one in jun 2019

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
