Walter Helitronic BASIC-F

Show in original language

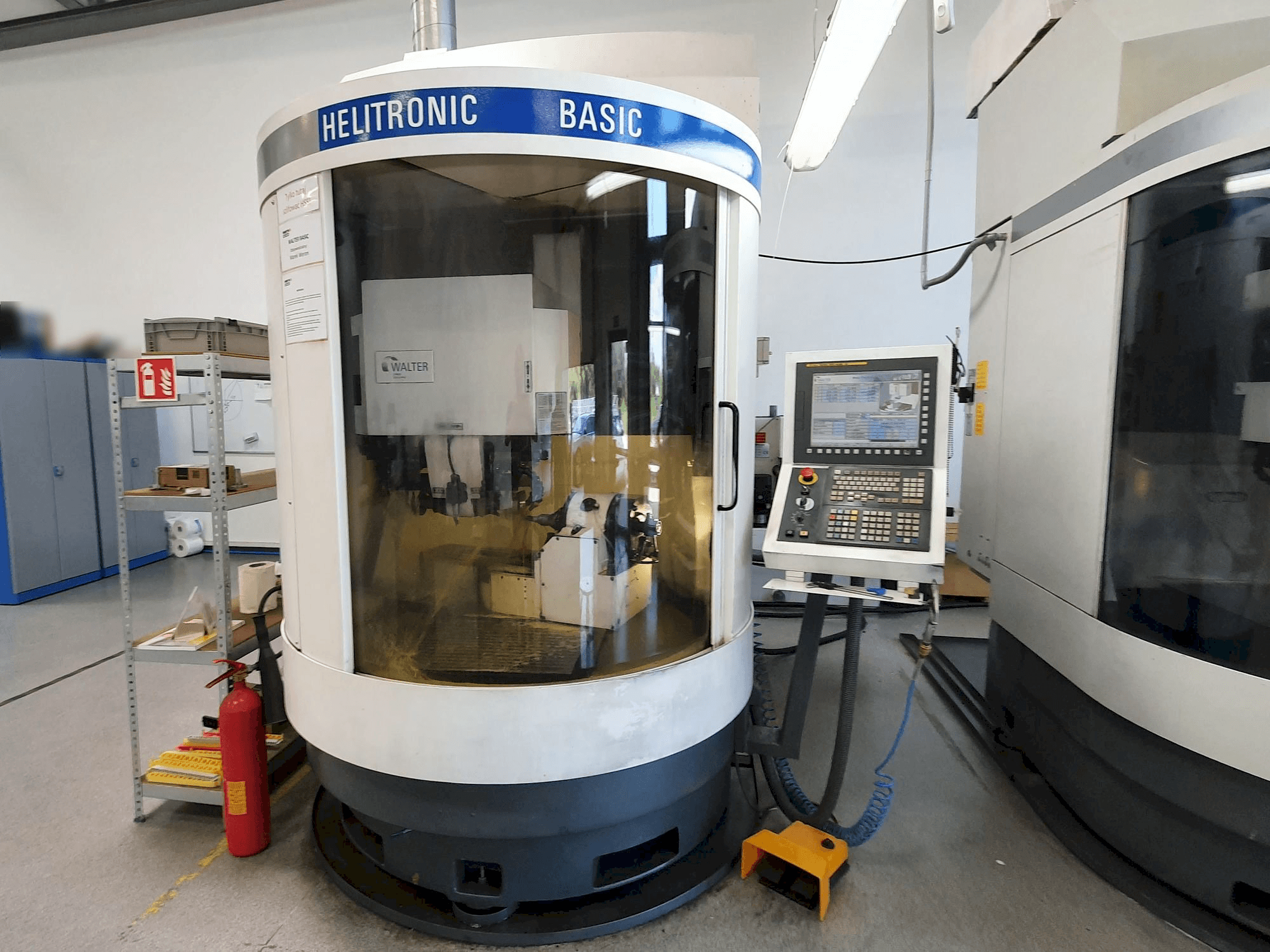

This Walter Helitronic BASIC-F Grinding Machine was manufactured in 2007 in Germany. It has approximately 30580 working hours. This machine is operated through a GE FANUC Series 310i- MODEL A5 control unit. It can work with a spindle speed range 0 - 8000 rpm. This machine includes several options as a fire extinguishing system and a tools studio software. It is in very good condition, still at production, ready for tests and with its full documentation available.

Overview

brand: WALTER
year: 2007
MODEL: Helitronic BASIC-F
production hours: 30580
application type: Grinding
Location: Poland
machine type: Grinding Machine
availability: Sold
control unit brand: FANUC

Technical Information - WALTER Helitronic BASIC-F

General Data

Measurements width: 2570 mm
Measurements depth: 2930 mm
Measurements height: 2280 mm
Machine weight: 4500 kg

Control Unit

Brand: FANUC
Model: Series 310i-MODEL A5

Main drive

Spindle speed range: 0-8000 1/MIN
Spindle motor power: 9 kW
Tool taper: ISO 50

Movement

X-AXIS Movement: 460 mm
Y-AXIS Movement: 320 mm
Z-AXIS Movement: 660 mm

Media

Main electronic connection: 400 V / 50 HZ
Power consumption: 20 kVA

Additional Equipment

- Fire extinguishing system
- P1 software package - end mills, cylindrical radius mills, balls
- P2 software package - Radius tapered end mills, spheres
- P3 software package - drills and step drills
- Software package - 16 (warming up)
- Software package – 32 (Profile grinding software package)
- Software package - 98 (automation)
- Helicone (chip flute grinding of drill bits)
- Heliflute (grinding the flute of cutters)
- Tools Studio software

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis: +/- 200 deg
- - Max dia. For pieces: 320 mm
- - Max length of pieces: 350 mm
Qualitative Machine Benefits:
- - Machine in very good condition
- - Ready for tests.
- - Full documentation available.
- - Still at production.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
