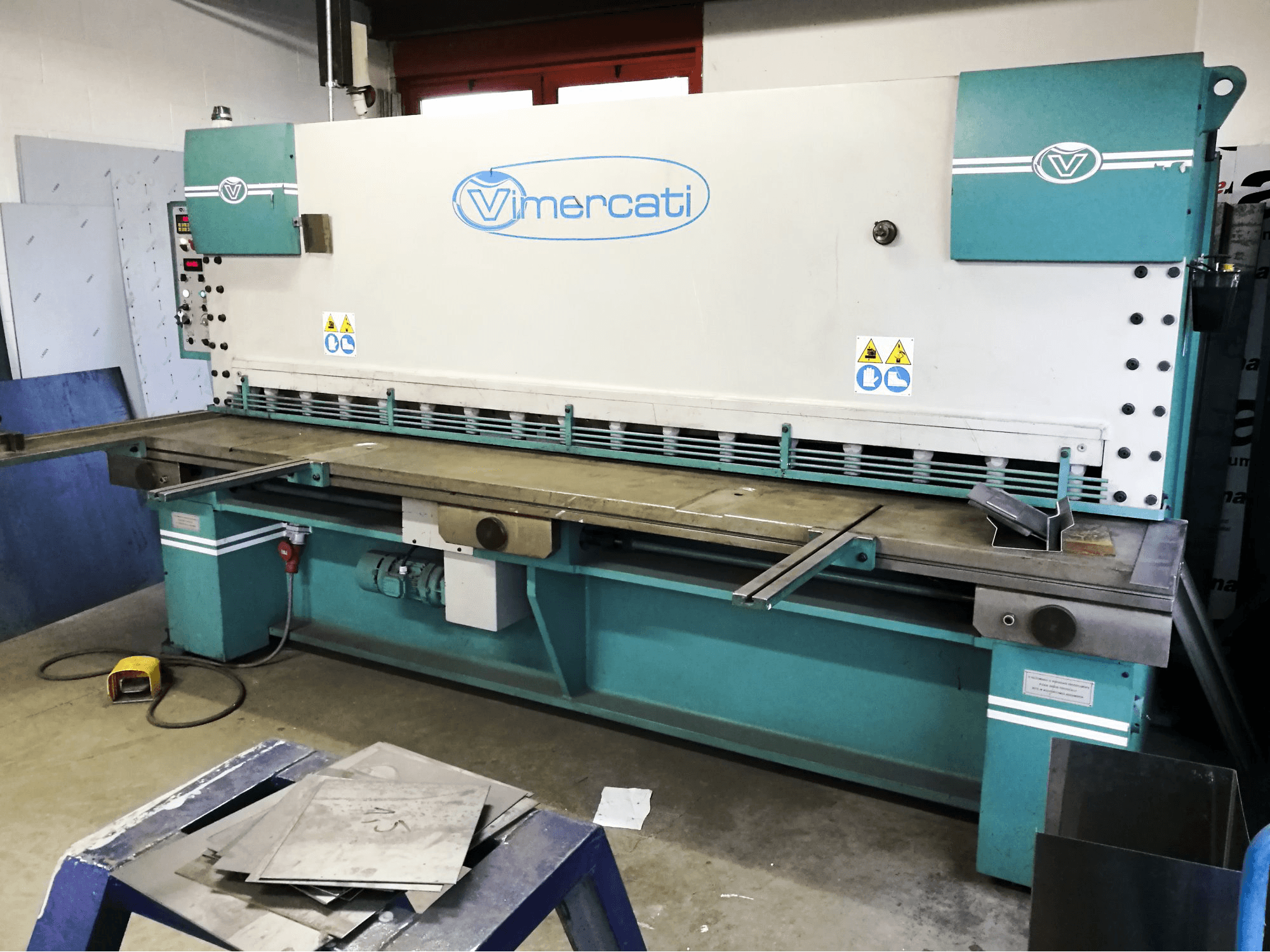

Vimercati CSI 3050x6 Shearing Machine

Show in original language

This Vimercati CSI 3050x6 is a Shearing Machine of Italian manufacture that dates from 2005, and has worked for only 1150 hours since then. The machine is equipped with Vimercatis’ own Control unit and allows shearing on up to 3050 mm long sheets. In the past, this equipment has worked on iron and stainless steel with up to 4 and 6 mm thickness respectively.

Overview

brand: Vimercati
year: 2005
MODEL: CSI 3050x6
production hours: 1150
application type: Shearing
Location: Italy
machine type: Hydraulic Shearing Machine
availability: Sold

Technical Information - Vimercati CSI 3050x6

General Data

Measurements width: 3650 mm
Measurements depth: 2200 mm
Measurements height: 1900 mm
Machine weight: 6800 kg

Main drive

Spindle motor power: 7.5 kW
Maximum sheet thickness: 8 mm
Distance between bars: 3200 mm
Shearing velocity: 85 mm/s
Max Sheet length: 3050 mm

Max Material thickness

Steel: 6 mm
Stainless steel: 4 mm
Aluminum: 8 mm

Media

Main electronic connection: 380 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
