Trumpf TruPunch 3000 Punching Machine

Show in original language

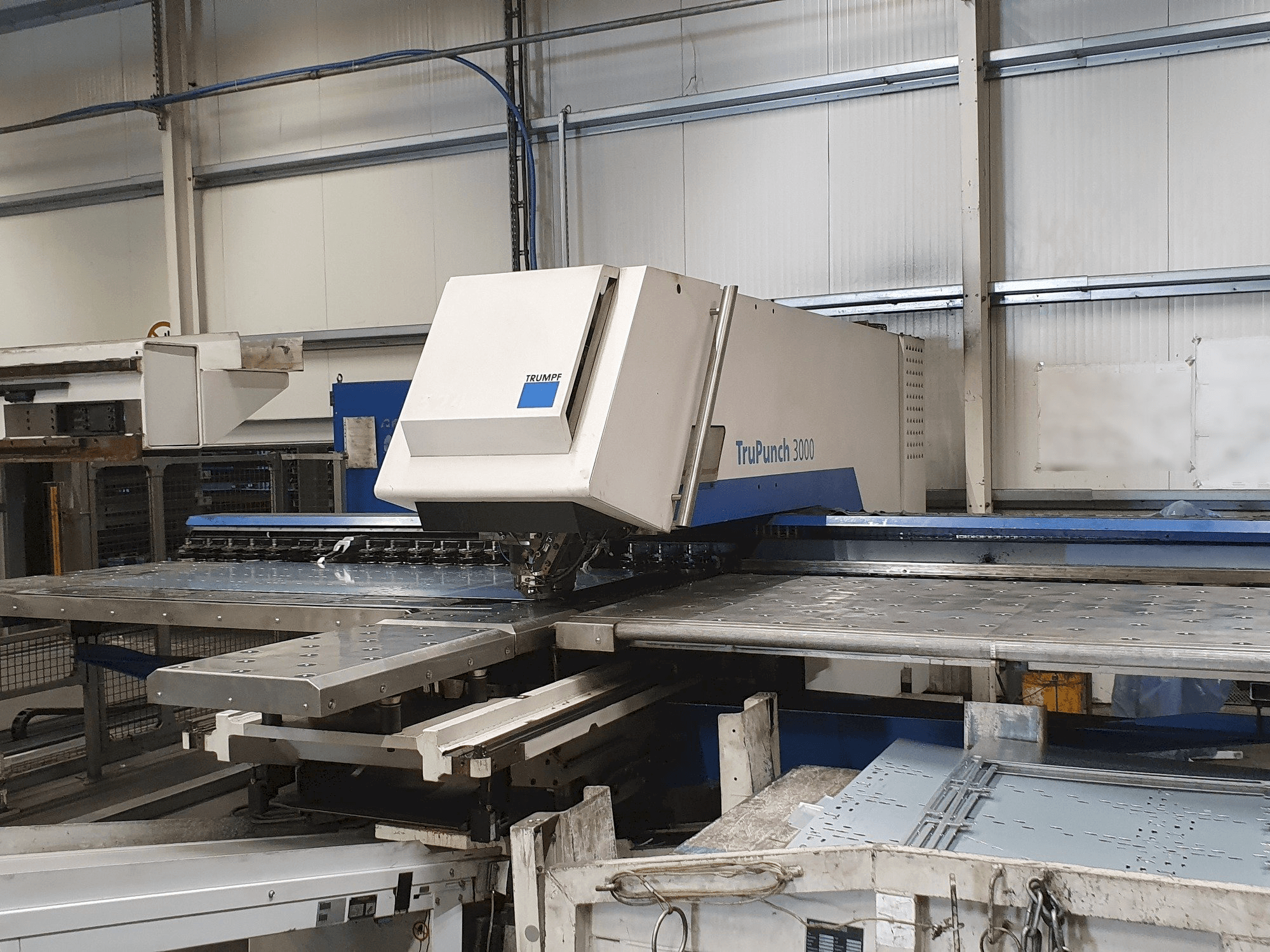

This Trumpf TruPunch 3000 Punching Machine was built in Germany in the year 2007. It has been working for 60951 hours. It is equipped with a control unit of the same brand. This machine work with a punching force of 180 kN. It can work with a maximum thickness of processed sheet metal 6.4 mm.

Overview

brand: TRUMPF
year: 2007
MODEL: TruPunch 3000
production hours: 60951
application type: Bending & Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold
control unit brand: Trumpf

Technical Information - TRUMPF TruPunch 3000

General Data

Measurements width: 5800 mm
Measurements depth: 6500 mm
Measurements height: 2230 mm

Control Unit

Brand: Trumpf

Main drive

Punching force: 180 kn

Table

Outer length: 2500 mm
Outer width: 1250 mm
Table load: 150 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Number of strokes per min 900 1/min.
- - Max. Marking speed 2200 1/min.
- - Number of tool seats 19 pcs.
- - Tool change time 0. 5 sec.
- - Max thickness of processed sheet metal 6. 4 mm.
- - Active functions: sheet deformation sensor, tapping, marking, multibend, multishear
- - Tank heating with hydraulic oil
- - Softpunch functions
- - Stripline-programmable manually
- - Foundation are on damping elements

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
