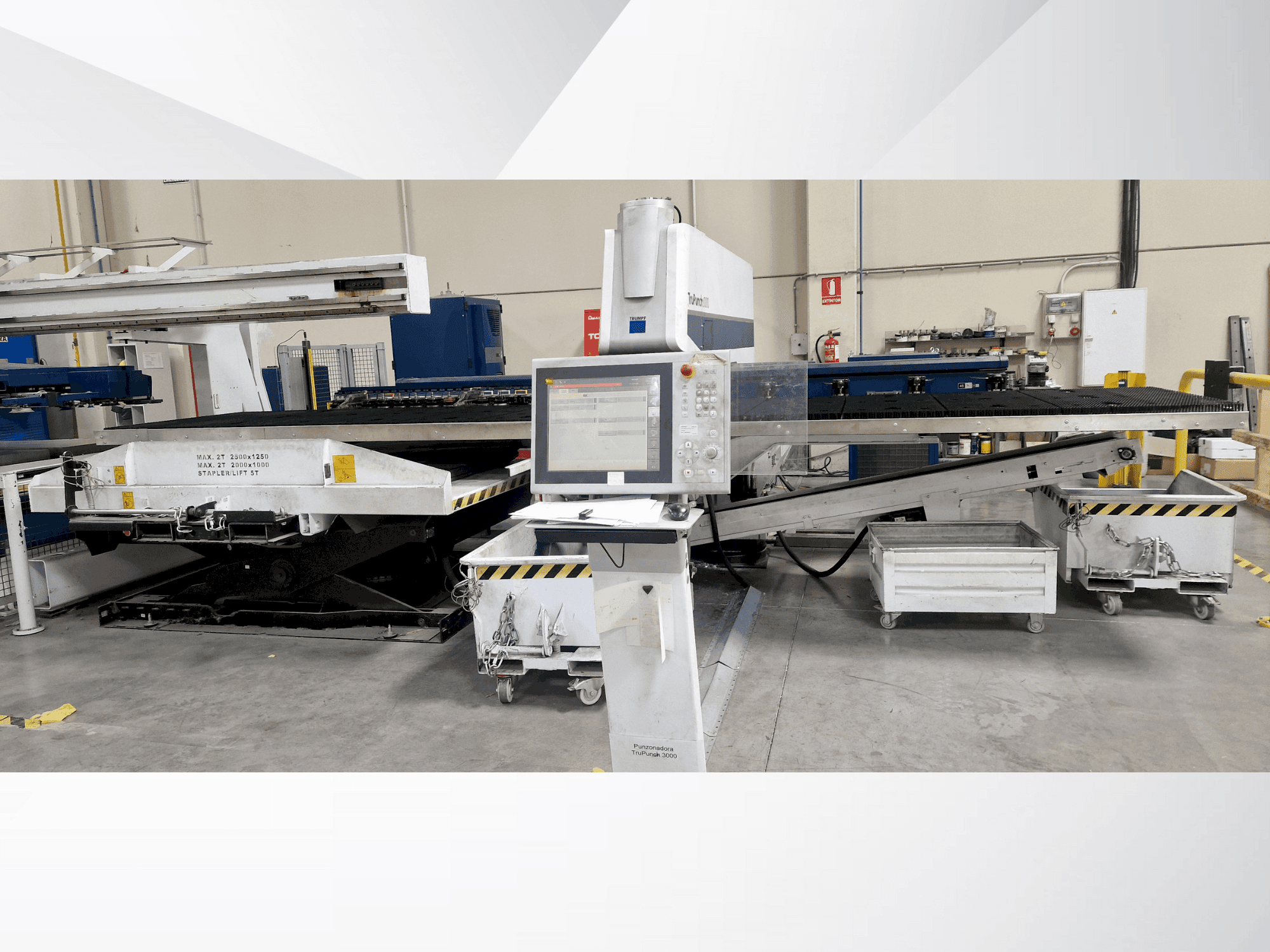

TRUMPF - Trupunch 3000ES-PUN-TRU-2015-00001

Additional Equipment

• - safety light bars (X x Y): 6550 x 5000 mm (32.75 m²)
• - Stopa SheetMaster
• - Color monitor, TFT: 17" Touchscreen
• - USB interface

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max punching speed: 1000 strokes/min
  • - X/y simultaneous speed: 108 m/min
  • - C-axis speed: 330 strokes/min
  • - Linear tool storage: number of tools / clamps: 18/2
  • - Part evacuation: max. Part size (with residual grid): 500 x 500 mm, max. Part size (without residual grid): 500 x 500 mm
  • - High punching speed of 1000 strokes/min
  • - Large working area of 2500 x 1250 mm
  • - Punching and hold-down force: max. Hold-down force: 20 kn
  • - Max. Stroke rate: marking: 2500 strokes/min
  • - Threading: 330 strokes/min
• Qualitative Machine Benefits:
  • - Based on bosch rexroth: mtx cmp70
  • - Efficient operation with multitool change time of 0. 3 s
  • - Tool size: punching: size 1, 2, forming: size 1, 2, 5
  • - Max. Contour size: punching: 76. 2 mm, forming: 100 mm
  • - Max. Acceleration: x-axis: 12 m/s², y-axis: 6 m/s²
  • - Precision: minimum programmable movement: 0. 001 mm
  • - Nc program memory capacity: 80 gb
  • - Power connection: approx. Power consumption: 5. 9 kw, electrical connection: approx. 18 kva/50 hz
  • - Compressed air connection: 6 ±1 bar, compressed air consumption: 10 m³/h

Extra information

• - Machine still under power
