TRUMPF - Trumatic 260PL-PUN-TRU-1991-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Trumpf Trumatic 260 Punching machine

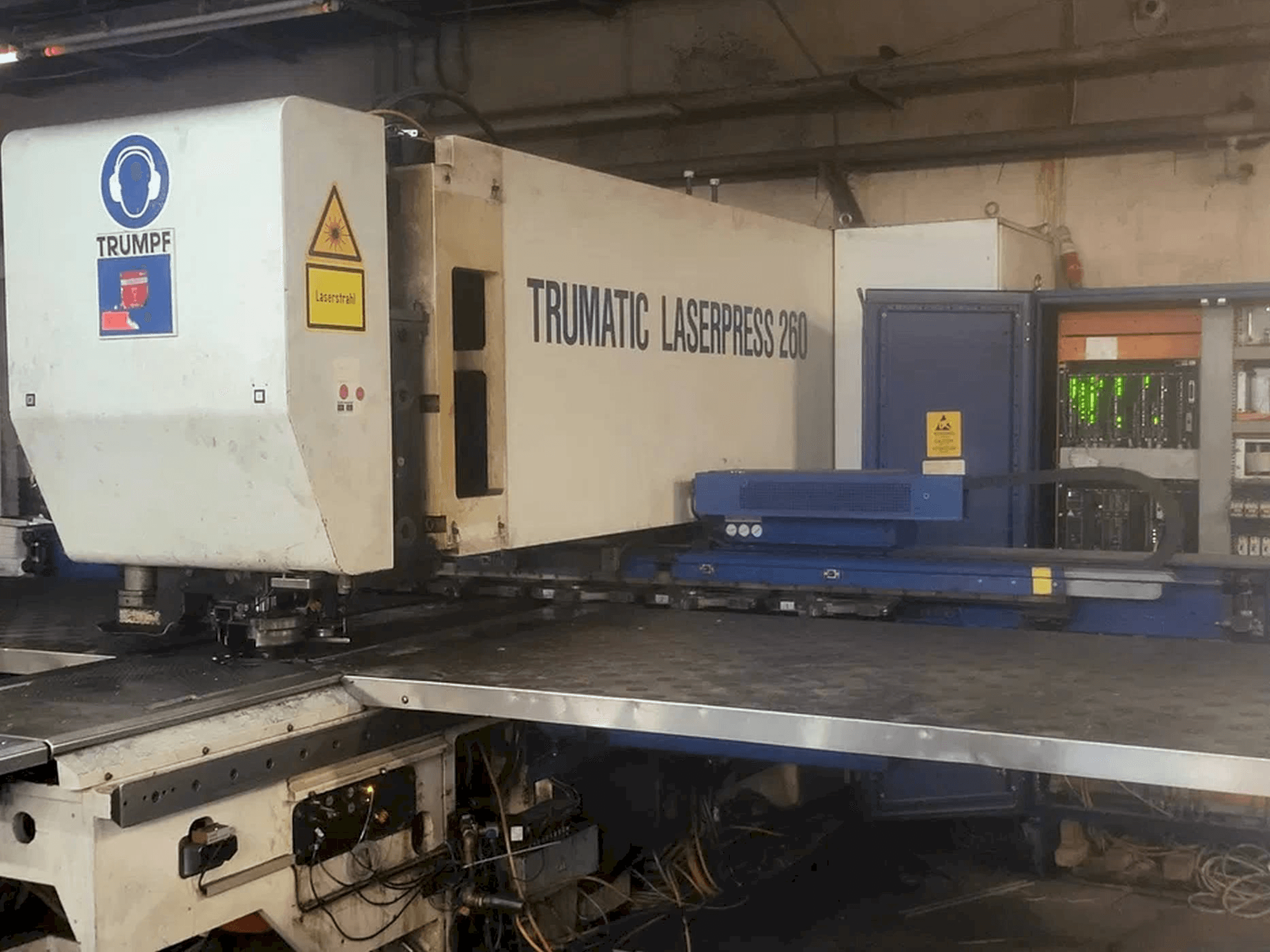

This Trumpf Trumatic 260 Punching machine was manufactured in the year 1991. It is equipped with a BOSCH TRUMAGRAPH CC300 control unit. The machine has a punching force of 250 kN.
Overview
- brand: TRUMPF
- year: 1991
- MODEL: Trumatic 260
- application type: Bending & Punching
- Location: Poland
- machine type: CNC Punch Press
- availability: Sold
- control unit brand: BOSCH
Technical Information - TRUMPF Trumatic 260
Control Unit
- Model: TRUMAGRAPH CC300
- Brand: BOSCH
Main drive
- Punching force: 250 kN
Additional Information
- Technical Machine Benefits:
- - Working area range : 1300 x 2500 mm + repositioning
- - Maximum thickness of sheet : 6,4 mm
- - Maximum weight of processed sheet : 150 kg
- - Maximum tool diameter : 76. 2 mm
- - Maximum traverse speed, x and y axes simultaneously : 108 m/min
- - Maximum traverse speed, x axis : 90 m/min.
- - Maximum traverse speed, y axis : 60 m/min.
- - Number of tools in the magazine : 10 pcs.
- - Tool change time : 6. 5 sec.
- - Maximum tool rotation speed, c axis : 3600/sec.
- Qualitative Machine Benefits:
- - Maximum number of strokes : 500/min.
- - Software accuracy : 0. 01 mm
- - Ramp for small workpieces
- - Retractable sheet holders (no repositioning required with standard sheets)
- - 7 sheet holders
- - Multitool operation
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
