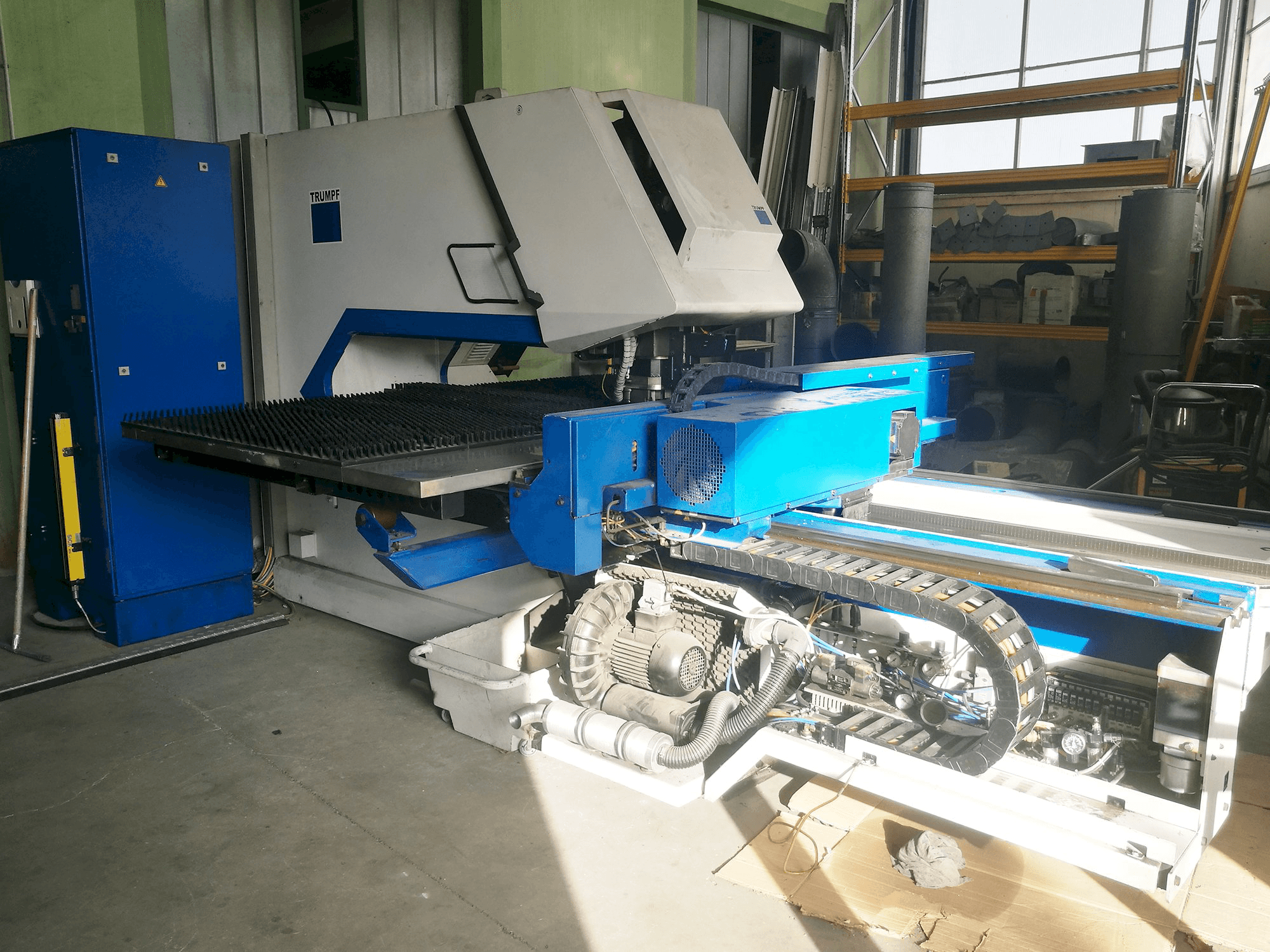

Trumpf Trumatic 2000R Punching Machine

Show in original language

This Trumpf Trumatic 2000R Punching Machine from 2000 was made in Germany and counts with 18402 production hours since then. Operated through a Trumpf Tops 2000 Control unit, this machine includes a punching force of 180 kN. During the past, it has mainly worked with steel and brass up to 2 mm of thickness. It presents good conditions, as it has been serviced by Trumpf Official Service and it has had all its oils and lubricants changed. Additional tools included upon request.

Overview

brand: TRUMPF
year: 2000
MODEL: Trumatic 2000R
production hours: 18402
application type: Bending & Punching
Location: Croatia
machine type: CNC Punch Press
availability: Sold
control unit brand: Trumpf

Technical Information - TRUMPF Trumatic 2000R

General Data

Measurements width: 3500 mm
Measurements depth: 5000 mm
Measurements height: 2000 mm
Machine weight: 9200 kg

Control Unit

Brand: Trumpf
Model: Tops 2000
CNC main language: English
CNC language customizable: Yes

Main drive

Punching force: 180 kN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1270 mm

Max Material thickness

Steel: 6.4 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 17 kVA

Additional Equipment

- tools (upon request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
