➤ Used TRUMPF Trulaser 1040 Fiber For sale | gindumac.com

Show in original language

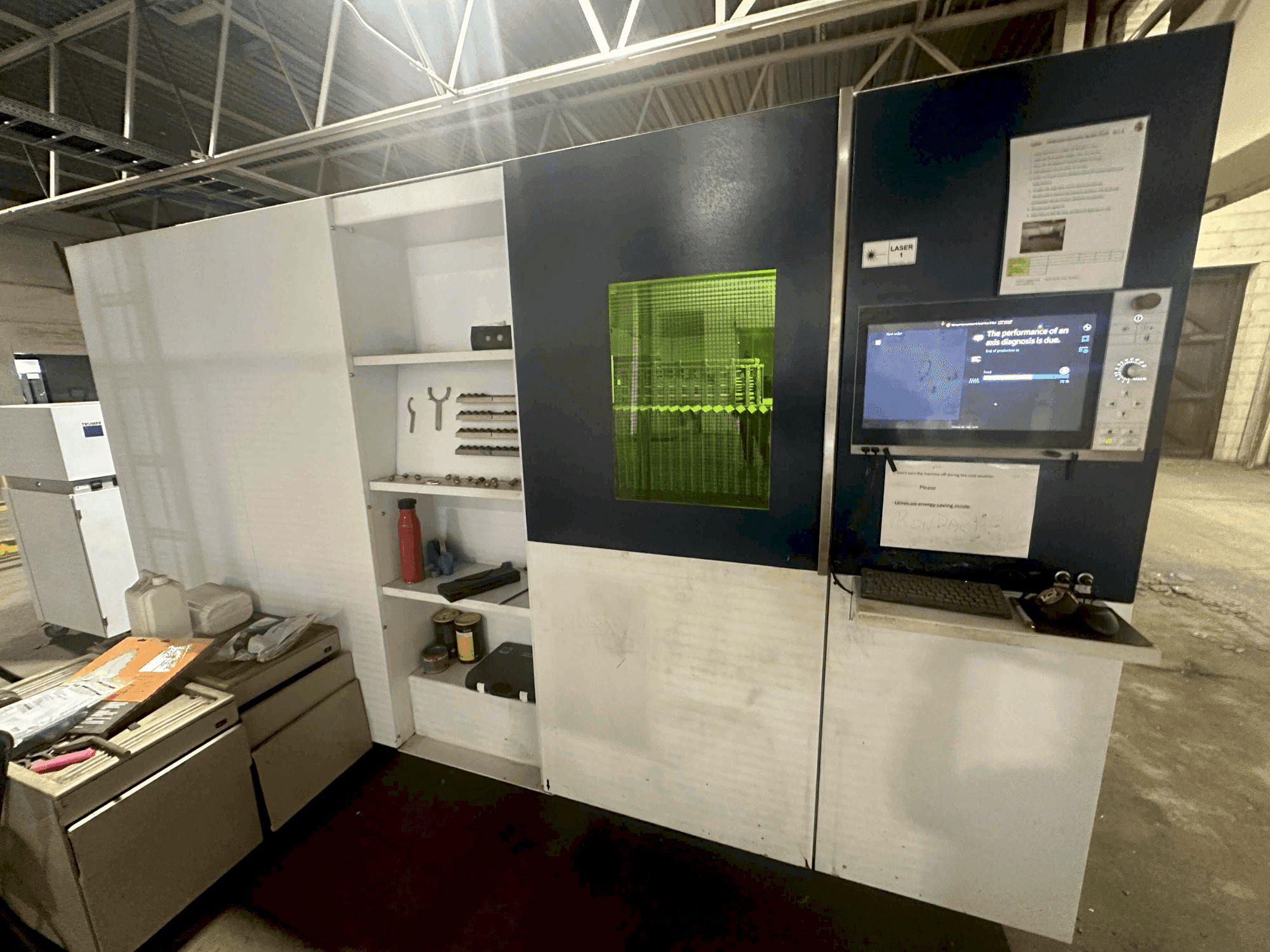

This laser cutting machine was manufactured in 2021. It features a 3 kW Trumpf laser, capable of cutting steel up to 20 mm thick, and includes a KLH chiller and a Camfil dust extractor. With a large 4m x 2m bed and additional handling equipment, it's ideal for efficient, high-volume production. The machine is in excellent condition with only 1900 beam-on hours. For more information about this laser cutting machine, please reach out to us.

Overview

brand: TRUMPF
year: 2021
MODEL: Trulaser 1040 Fiber
application type: Cutting
Location: Ireland
machine type: Fiber Laser Cutting Machine
availability: Sold

Technical Information - TRUMPF Trulaser 1040 Fiber

General Data

Measurements width: 11150 mm
Measurements depth: 6650 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Control Unit

CNC language customizable: Yes

Main drive

Laserpower: 3 kW

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 2000 mm

Workpiece

Workpiece x: 4000 mm
Workpiece y: 2000 mm
Workpiece z: 20 mm
Workpiece weight: 2000 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 15 mm
Aluminum: 15 mm

Media

Main electronic connection: 400 V
Power consumption: 35 kVA
Internal cooling: Yes

Additional Equipment

- Trumpf Laser TruDisk 3001 P Resonator
- Trumpf Laser TruDisk 3001 P Resonator
- Camfil Entry 2000 ASI Dust Extractor
- R-W-M Crane Hoist
- Single Pillar Crane
- Pneumatic Sheet Handler with 8 x Suction Cups

Additional Information

Machine history

Material type: Mild steel
Material thickness: 4 mm
End product: Parts for shuttering
Industries: Construction industry

Machine Benefits

Technical Machine Benefits:
- - 4m x 2m bed size
- - Includes gantry crane and sheet handler
Qualitative Machine Benefits:
- - Very little beam on hours
- - Excellent condition

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
