Trumpf TruBend 7036 bending machine

Show in original language

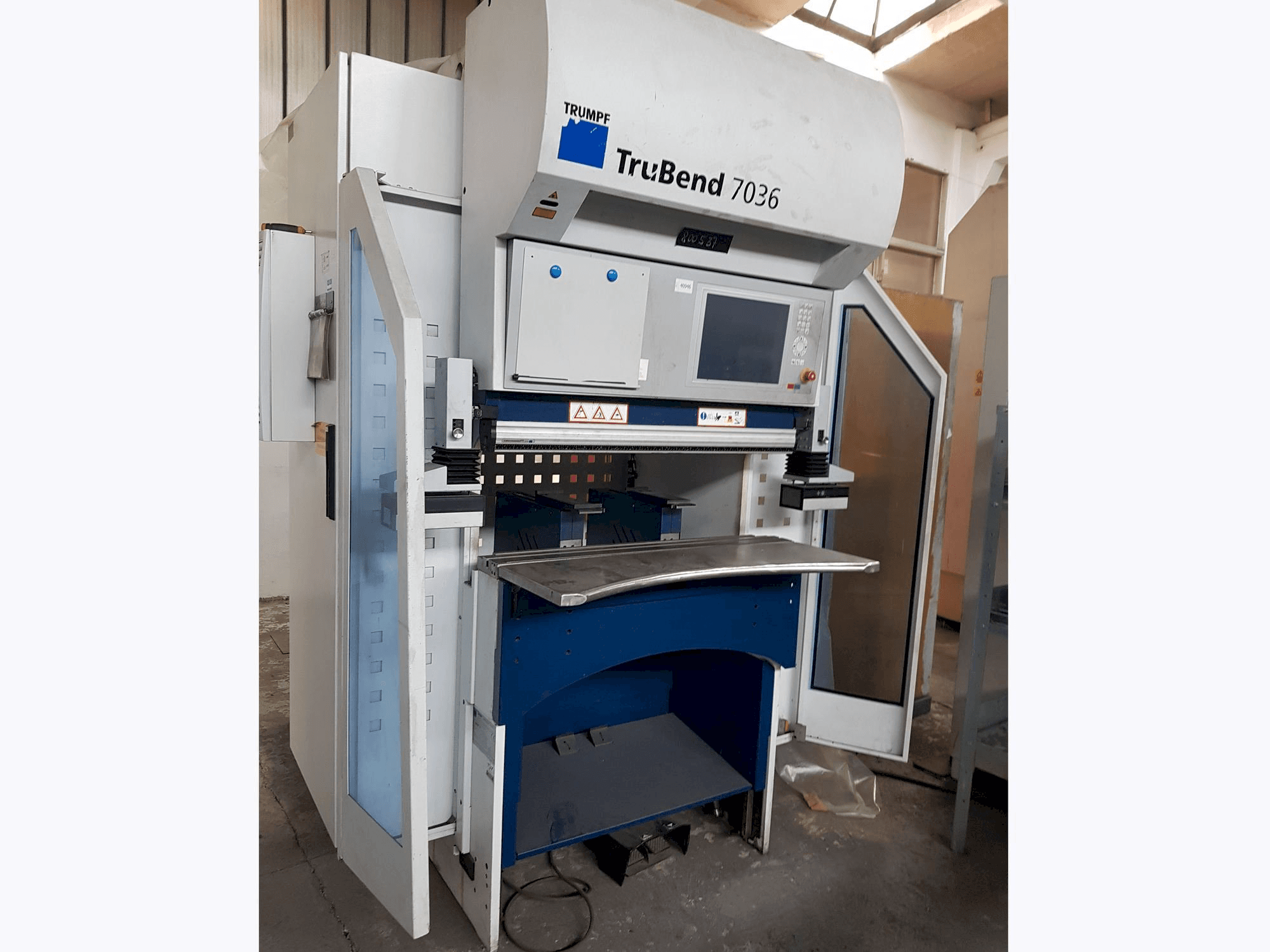

This Trumpf TruBend 7036 bending machine was manufactured in 2010. The 6 axis machine has a total of 15550 production hours. It is operated through a Trumpf TASC 6000 control unit. It has a press force of 360 kN. The machine is in very good working condition and it is regularly serviced by Trumpf service. The service documents are available and it is ready for tests.

Overview

brand: TRUMPF
year: 2010
MODEL: TruBend 7036
production hours: 15550
application type: Bending
Location: Poland
machine type: Press Brake
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF TruBend 7036

General Data

Measurements width: 1800 mm
Measurements depth: 1330 mm
Measurements height: 2380 mm
Machine weight: 2600 kg

Control Unit

Model: TASC 6000
Brand: TRUMPF

Main drive

Pressing force: 360 kN

Movement

X-AXIS Movement: 240 mm
R-AXIS Movement: 80 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 6 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max bending length- 1020 mm
- - Usable installation height – 300 mm
- - Table/beam distance - 420 mm
- - Width between columns – 932 mm
- - Y axis stroke- 120 mm
- - Max gauge area in x 500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
