- GINDUMAC
- Products
- Sheet Metal Machinery
- Trumpf TruBend 5130 Bending machine

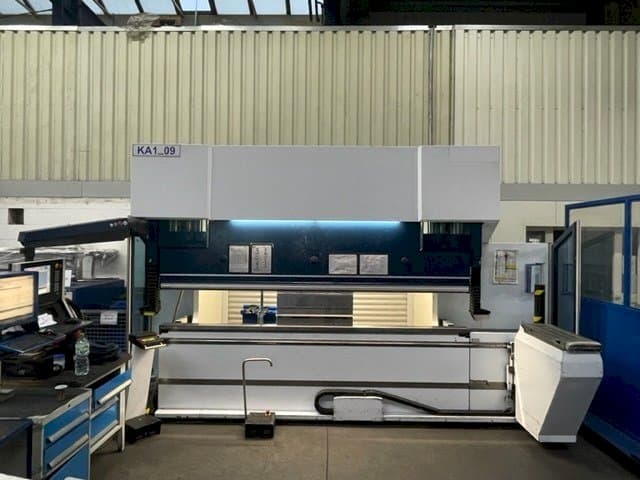

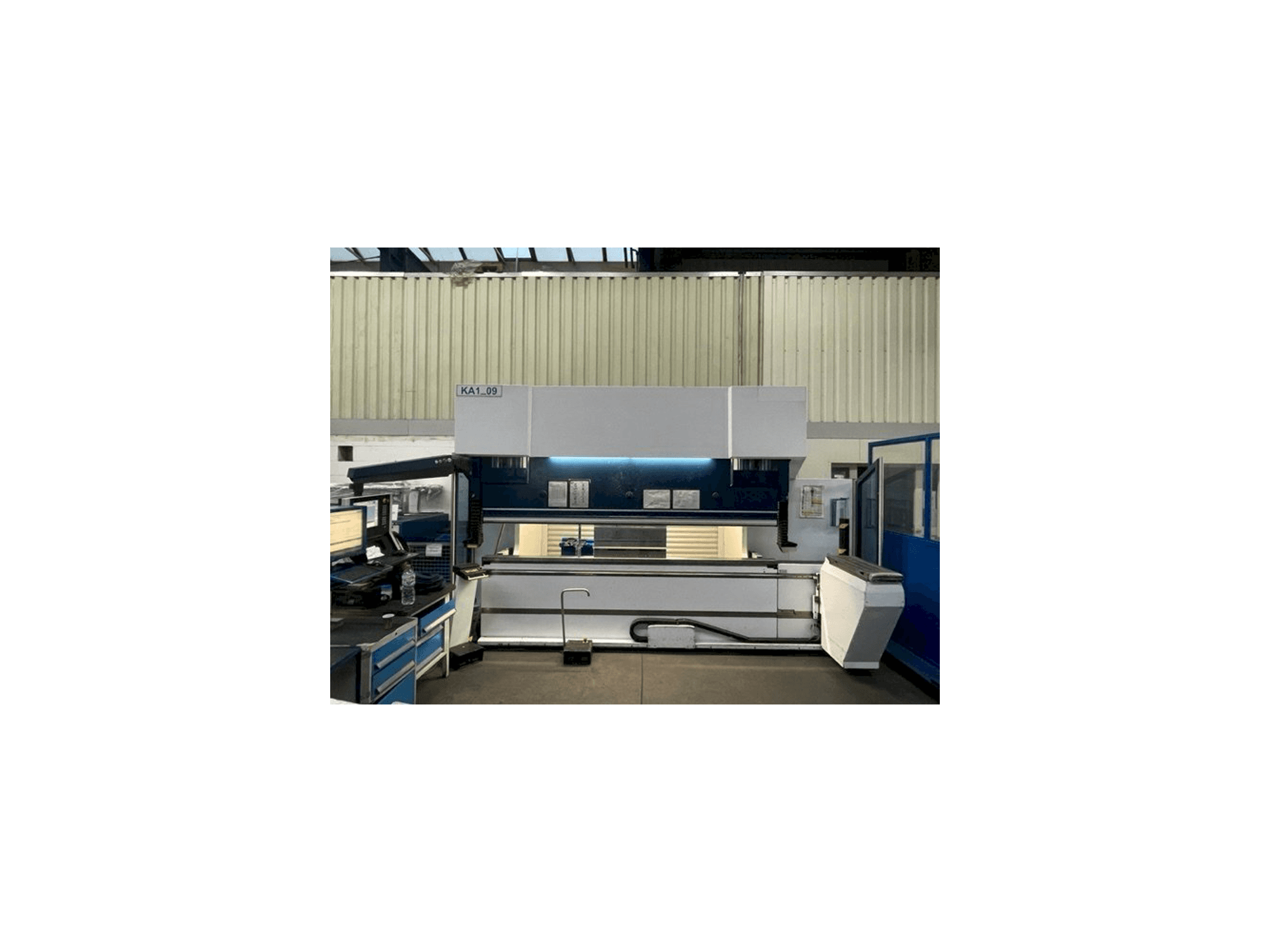

This Trumpf TruBend 5130 Bending machine was manufactured in the year 2007 in Austria and has 103712 production hours, of which 76454 are cutting hours. It is equipped with a TASC 6000 control unit. The machine has a pressing force of 1300 kN and a bending length of 3230 mm.
Overview
- brand: TRUMPF
- year: 2007
- MODEL: TruBend 5130
- production hours: 103712
- application type: Bending & Punching
- Location: Germany
- machine type: Press Brake
- availability: Sold
- control unit brand: TASC 6000
Technical Information - TRUMPF TruBend 5130
General Data
- Measurements width: 4847 mm
- Measurements depth: 3150 mm
- Measurements height: 2837 mm
- Machine weight: 10900 kg
Control Unit
- Brand: TASC 6000
Main drive
- Pressing force: 1300 kN
- Bending length: 3230 mm
Media
- Main electronic connection: 400 V / 50 Hz
Additional Information
- Technical Machine Benefits:
- - Installation height: 385 mm
- - Free stand passage: 2690 mm
- - Stable machine frame as welded construction in all-steel design
- - Pressure beam stress-relief annealed
- - 4 cylinder top drive
- - Backgauge with 6 axes
- - Hydraulic upper and lower tool clamping (wila pick-up system)
- - Cnc crowning
- - Cnc lower tool shift
- - Bend guard
- Qualitative Machine Benefits:
- - Preparation for acb
- - Work area lighting rear and front
- - Cnc control with touch screen
- - Magnification stroke +230mm
- - Heavy duty support bracket
- - Bending aid first arm
- - Table extension
- - Table widening
- - Parking position long (900mm)
- - no tools included
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
