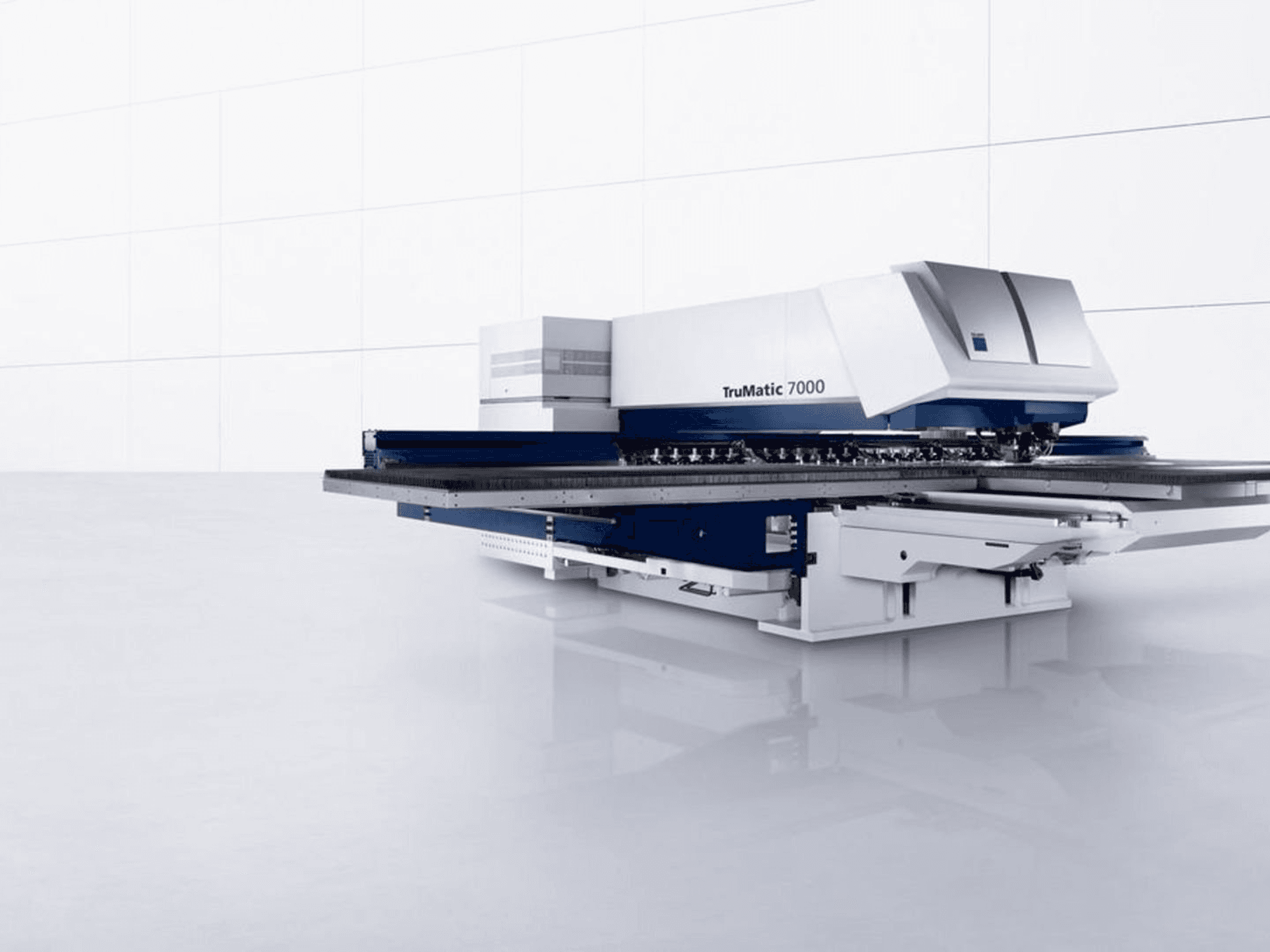

Trumpf TC 7000 laser punch combination machine

Show in original language

This Trumpf TC 7000 laser punch combination machine was made in 2017. The machine has a punching force of 220 kN, a laser power of 3kW, a max sheet thickness punch of 0,8 - 8 mm, and a max sheet size of 2500 x 1250 mm.

Overview

brand: TRUMPF
year: 2017
MODEL: TC 7000
application type: Punching
Location: Germany
machine type: Punch-Laser Combination
availability: Sold

Technical Information - TRUMPF TC 7000

Main drive

Laserpower: 3 kw
Punching force: 220 kn
Maximum sheet thickness: 0,8 - 8mm

Max Material thickness

Steel: 8 mm
Stainless steel: 8 mm
Aluminum: 5 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of tools/clamps: machine: 22 tools 3 clamps
- - Trumatool: 40 tools
- - Max sheet size: 2500 x 1250mm
- - Max punch speed: 1200 1/min
- - Machine tolerance: +/- 0,1mm
- - Capacity of the installation: 82 kva
- - 360 rotating punching head enables fast punching and tapping
- - Trumatool: automated tool change. Holds 40 tools
- - Trumagrip: automated removal of left over sheet metal
- - Trumasort: sorting smaller finished products
Qualitative Machine Benefits:
- - High quality laser cutting of metal, aluminium and stainless steel up to 8mm thickness.
- - Sheet master: automated loading of sheetmetal and unloading/sorting finished products
- - Combination laser/punching machine. Full automatic production high quality scratch-free products due to a active die
- - Metal forming tools up and down due to active die

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
