- TECHNOLOGY TP OMEGA 3610 Punching machine

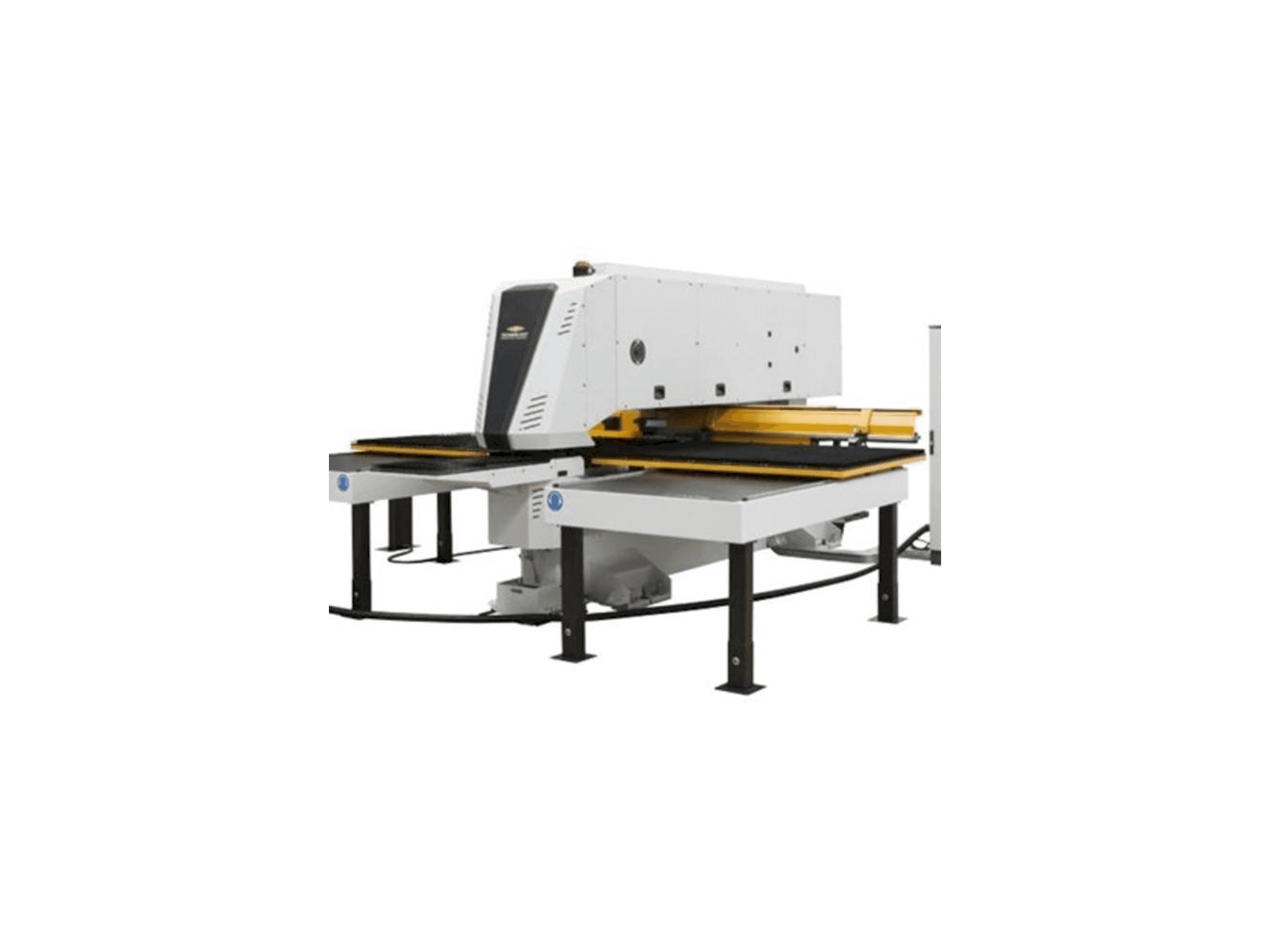

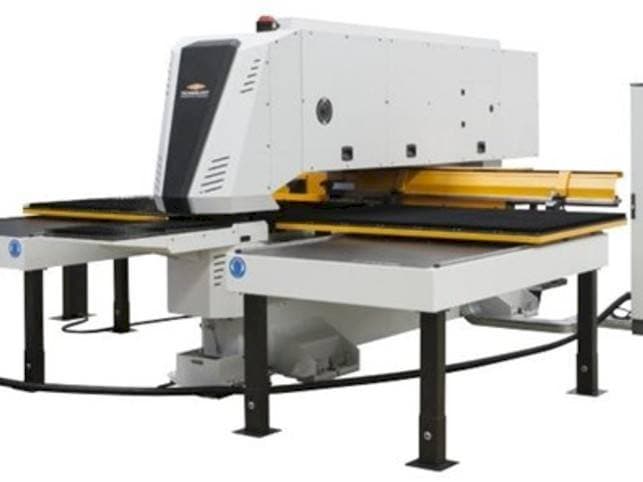

This TECHNOLOGY TP OMEGA 3610 Punching machine was manufactured in the year 2018. It is equipped with a FANUC Series 31 l PB control unit. The machine has a punching force of 300 kN, it comes with 1 year warranty
Overview
- brand: TECHNOLOGY
- year: 2018
- MODEL: TP OMEGA 3610
- application type: Bending & Punching
- Location: Italy
- machine type: Punch-Laser Combination
- availability: Sold
- control unit brand: FANUC
Technical Information - TECHNOLOGY TP OMEGA 3610
General Data
- Measurements width: 15380 mm
- Measurements depth: 4950 mm
- Measurements height: 2360 mm
Control Unit
- Model: Series 31 i PB
- Brand: FANUC
Main drive
- Punching force: 300 kN
Additional Information
- Technical Machine Benefits:
- - Working size mm 1500 x 2500, workable sheet with an automatic repositioning mm 1500 x 5000
- - Maximum punching frequency stroke/min. 750
- - Max. Number of tool stations nr. 5
- - Max. Number of index tool stations nr. 5
- - Max number of tools with multi-tool nr. 50
- - “c” frame, x-y axis sheet moving system, automatic repositioning system with pneumatic cylinders
- - Servo-electric punching unit system, tool lubrication system, n. 3 locking sheet clamps,
- - Auto-index multi-tool management system, integrated auto-index system, automatic tool change system with 5 stations (smart turret), missed extraction sensor
- - Support tables with brushes
- - Cnc functions for high speed forming
- Qualitative Machine Benefits:
- - The machine comes with 1 year warranty
- - Stand-alone machine console with 15" touch screen display
- - Software installed on machine console tecnocontrol or tecnocam interface
- - Electrical cabinet on the ground
- - Vacuum scraps system
- - Scraps container
- - Pedal for opening / closing sheet metal clamps
- - Pedal to operate single punching
- - Tele assistance
- - Instruction manuals
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
