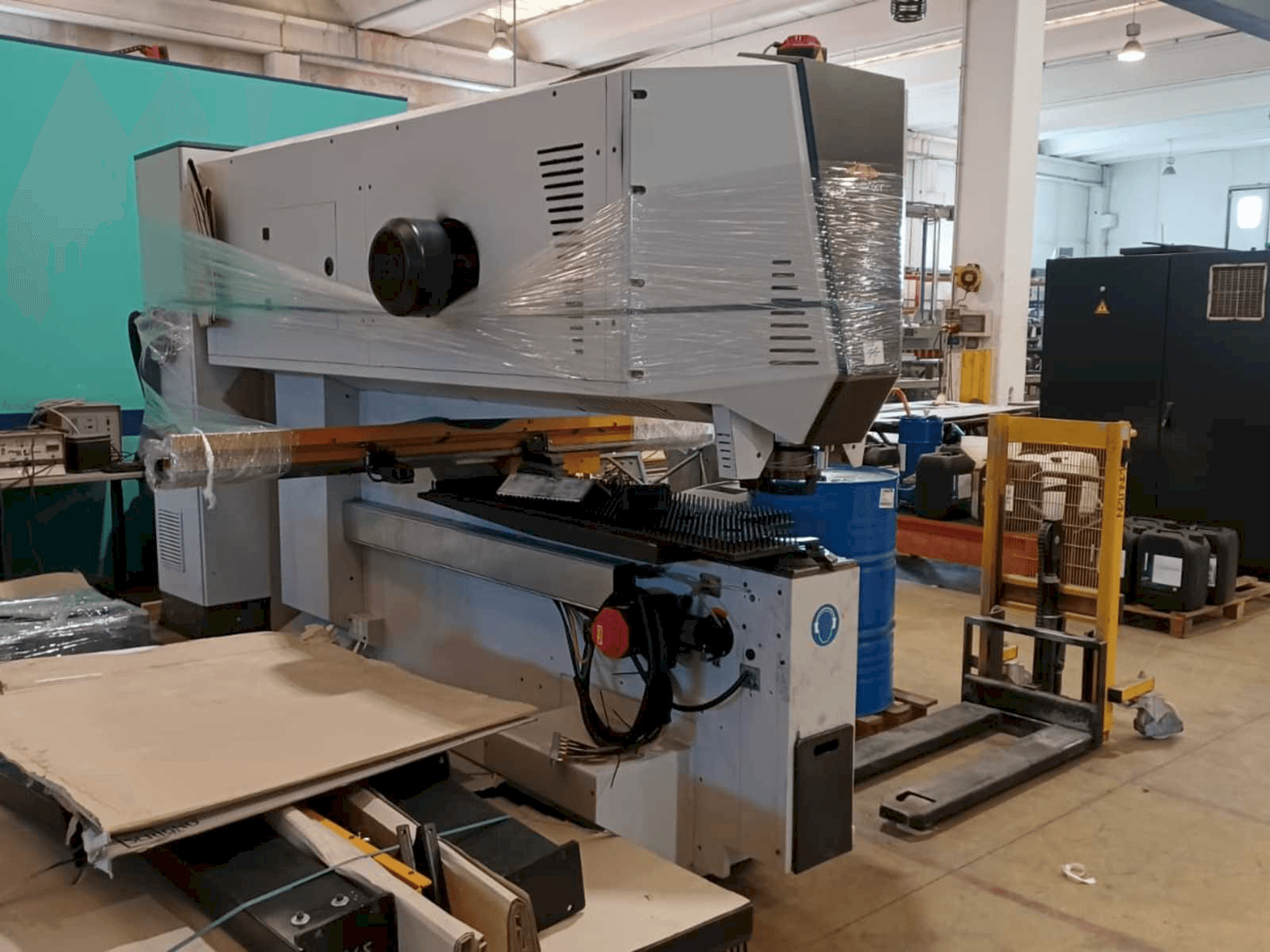

TECHNOLOGY TP 356 Alpha Series Punching machine

Show in original language

This TECHNOLOGY TP 356 Alpha Series Punching machine was manufactured in the year 2015. It is equipped with a Fanuc control unit. The machine has a punching force of 300 kN.

Overview

brand: TECHNOLOGY
year: 2015
MODEL: TP 356 Alpha Series
application type: Punching
Location: Italy
machine type: Punch-Laser Combination
availability: Sold
control unit brand: FANUC

Technical Information - TECHNOLOGY TP 356 Alpha Series

General Data

Measurements width: 3200 mm
Measurements depth: 4700 mm
Measurements height: 2300 mm
Machine weight: 9500 kg

Control Unit

Brand: FANUC

Main drive

Punching force: 300 kN

Table

Outer length: 1250 mm
Outer width: 1550 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - With repositioning: 1250 x 3000mm
- - Maximum sheet thickness: 6mm
- - Maximum sheet weight: 150kg
- - X axis displacement speed: 75m/min
- - Y axis displacement speed: 60 m /min
- - Tool change time: 12 seconds, tool change time with multitool: 1,5 seconds
- - Punching accuracy: +/- 0,01 – (0,0003”)
- - Max power consumption: 7kw, power consumption main motor: 1,5kw
Qualitative Machine Benefits:
- - The machine comes with 12 months warranty

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
