Used Grinding machine TAIYO KOKI KOKI NVGH 12TC (2010) for sale | GINDUMAC.COM

Show in original language

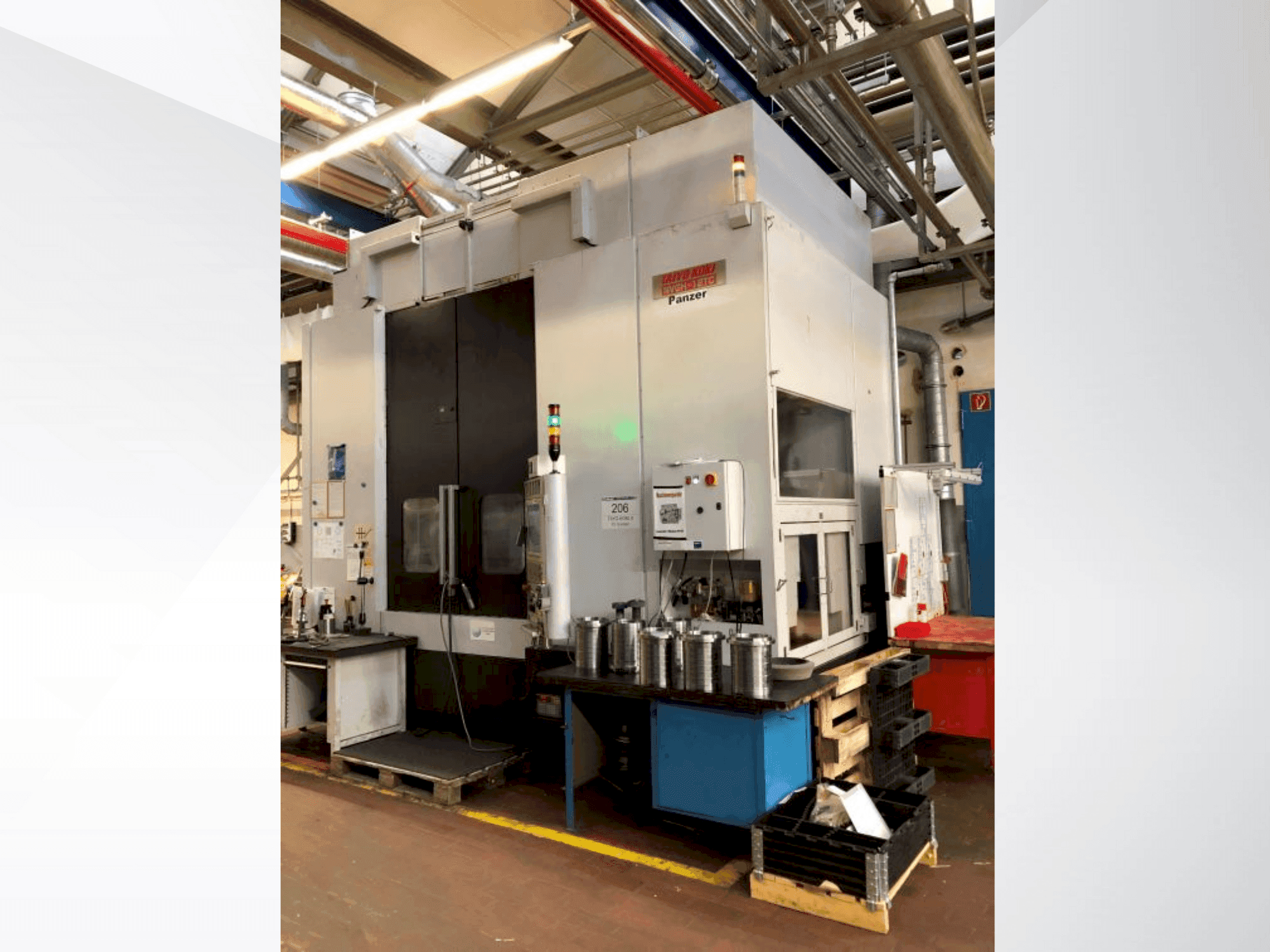

This TAIYO KOKI KOKI NVGH 12TC Grinding machine was manufactured in the year 2010 in Japan ans has 18000 production hours. It is equipped with a Fanuc 31i control unit. The machine disposes of grinding wheel spindle which has a speed range of 1200-6000 rpm. Contact us anytime for further questions.

Overview

brand: TAIYO KOKI
year: 2010
MODEL: KOKI NVGH 12TC
production hours: 18000
application type: Grinding
Location: Germany
machine type: Vertical Grinding Machine
availability: Sold

Technical Information - TAIYO KOKI KOKI NVGH 12TC

General Data

Measurements width: 4449 mm
Measurements depth: 3400 mm
Measurements height: 3500 mm
Machine weight: 30000 kg

Control Unit

Model: IV

Main drive

Number of spindles: 1
Spindle speed range: 1200-6000 1/MIN
Spindle motor power: 18.8 kW
Number of axis: 4

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Capacity: inner grinding diameter 100-1100 / outer grinding diameter range max. 1200, od straight 600 / angular approx. 150, stroke to workpiece spindle 1250, max. Load on chuck 1. 65 tonnes (chuck: 1. 1t)
- - Grinding wheel spindle: diameter 75-355, taper bore hsk125a, output 25 kw
- - Workpiece spindle: table size 1200, speed 150 min-1 (400 vac)
- - Axes: x 1200 to the right/640 to the left/40000 mm/min, z 775/30000 mm/m
- - Disc head rotation: max. Indexing angle 240°, indexing angle at the grinding position +/-30°, normal torque 7500 n
- - Chuck throat (from floor to chuck surface): 1086

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
